Paulmann URail 97766 High voltage mounting rail In-line feeder White

A white, rectangular air vent on the ceiling with two small ventilation slits.
An electronic door lock, open, reveals its internal wiring and mechanical components.

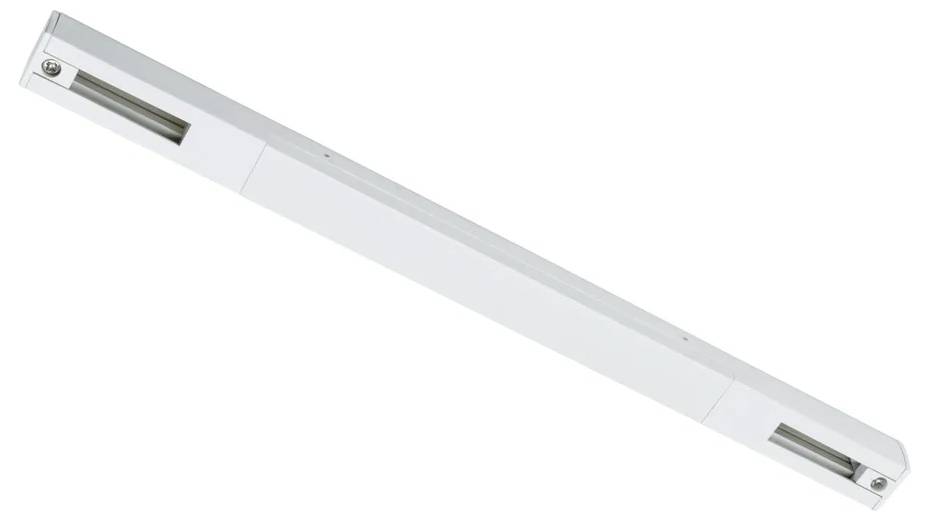

A rectangular, white, elongated device with visible screws at its ends; likely an electrical component.
Dining room with a wood-effect table, white chairs and modern lighting. The focal point: an elegantly sliding door that divides the space.
'Duracell CR2032 Button Cell, 3V, Lithium' and installation instructions: 'Positive side up'. Warning notices and disposal symbols.
'Diagram shows two lighting setups: Upper row has three lamps, lower row has five. Each is connected to its own switch.'
1/6
EAN:
Part number:
Item no:
Fast track dispatch on Thu 5 Nov
75 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 28.99 / piece)
€ 28.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

URail feed in center 304x18mm max. 1.000W white

  • End caps for rail included in delivery
  • URail supply cable incl. installation instructions
  • Don't forget: Order the connector at the same time!
  • Surface/Colour: White

Technical specifications

Product type

High voltage mounting rail

Component

In-line feeder

n.rel.

Series

URail

Operating voltage

230 V

Factory colour

White

Material

Plastic

Dim

(L x W x H) 30.4 x 1.8 x 1.8 cm

1000 W

Width

1.8 cm

Height

1.8 cm

Length

30.4 cm

UKCA

not relevant

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1954408 Paulmann URail 97766 High voltage mounting rail In-line feeder White

User & Safety Instructions 1954408 Paulmann URail 97766 High voltage mounting rail In-line feeder White

User & Safety Instructions 1954408 Paulmann URail 97766 High voltage mounting rail In-line feeder White

Warranty Terms

Warranty Terms 1954408 Paulmann URail 97766 High voltage mounting rail In-line feeder White

Description

The URail central feed in white is placed directly above the power connection and visually fits into any lighting installation due to its track form. Moreover, 5-wire ceiling outlets can also be connected in order to switch the system separately. One output of the infeed is supplied by one phase, the other output by the other phase.

This text is machine translated.

Scope of delivery

  • Central feed
  • User manual.

Hints

Please order matching connector separately.
