PCE Instruments PCE-DM 6 Handheld multimeter Digital Data logger CAT III 600 V Display (counts): 6000
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 45.37 / piece)
€ 45.37
plus VAT.
Highlights & Details
PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-DM 6
- 6000 counts recording range
- Measuring range selection automatic and manual
- Continuity testing
- 3.1 inch LCD
- Touch buttons
- Live test
- Contact-free voltage detection (NCV)
- Ambient temperature
- Automatic power off
- small and compact
Technical specifications
- DC voltage
- Measuring range 0 ... 6 V
- Resolution 0.001 V
- Accuracy ±(0.8 % from MW. +5 digits)
- Overload 1000 V
- DC voltage
- Measuring range 6 ... 60 V
- Resolution 0.01 V
- Accuracy ±(0.8 % from MW. +5 digits)
- DC voltage
- Measuring range 60 ... 600 V
- Resolution 0.1 V
- Accuracy ±(0.8 % from MW. +5 digits)
- DC voltage
- Measuring range 600 ... 1000 V
- Resolution 1 V
- Accuracy ±(0.8 % from MW. 10 digits)
- Capacitance
- Measuring range 0 ... 10 nF
- Release 10 pF
- Accuracy ±(3.5 % from MW. 20 digits)
- Capacitance
- Measuring range 10 ... 100 nF.
- Release 100 pF
- Accuracy ±(3.5 % from MW. 20 digits)
- Capacitance
- Measuring range 0.1 ... 1 µF
- Resolution 1 nF
- Accuracy ±(3.5 % from MW. 20 digits)
- Capacitance
- Measuring range 1 ... 10 µF
- Resolution 10 nF
- Accuracy ±(3.5 % from MW. 20 digits)
- Capacitance
- Measuring range 10 ... 100µF
- Resolution 100 nF
- Accuracy ±(3.5 % from MW. 20 digits)
- Capacitance
- Measuring range 0.1 ... 1 mF
- Resolution 1 µF
- Accuracy ±(3.5 % from MW. 20 digits)
- Capacitance
- Measuring range 1 ... 10 mF
- Resolution 10 µF
- Accuracy ±(3.5 % from MW. 20 digits)
- Capacitance
- Measuring range 10 ... 60 mF
- Resolution 100 µF
- Accuracy ±(5 % from MW. +3 digits)
- Alternating voltage AC
- Measuring range 0 ... 6 V
- Resolution 0.001 V
- Accuracy ±(0.8 % from MW. +5 digits)
- Overload 750 V
- Frequency range 50 ... 1000 Hz
- Alternating voltage AC
- Measuring range 6 ... 60 V
- Resolution 0.01 V
- Accuracy ±(0.8 % from MW. +5 digits)
- Frequency range 50 ... 1000 Hz
- Alternating voltage AC
- Measuring range 60 ... 600 V
- Resolution 0.1 V
- Accuracy ±(0.8 % from MW. +5 digits)
- Frequency range 50 ... 1000 Hz
- Alternating voltage AC
- Measuring range 600 ... 750 V
- Resolution 1 V
- Accuracy ±(0.8 % from MW. 10 digits)
- Frequency range 50 ... 1000 Hz
- Resistance
- Measuring range 0 ... 600 Ω
- Resolution 0.1 Ω
- Accuracy ±(0.8 % from MW. +5 digits)
- Resistance
- Measuring range 0.6 ... 6 kΩ
- Resolution 1 Ω
- Accuracy ±(0.8 % from MW. +3 digits)
- Resistance
- Measuring range 6 ... 60 kΩ
- Resolution 10 Ω
- Accuracy ±(0.8 % from MW. +3 digits)
- Resistance
- Measuring range 60 ... 600 kΩ
- Resolution 100 Ω
- Accuracy ±(0.8 % from MW. +3 digits)
- Resistance
- Measuring range 600 ... 6000 kΩ
- Resolution 1 kΩ
- Accuracy ±(0.8 % from MW. +3 digits)
- Resistance
- Measuring range 6 ... 60 M Ω
- Resolution 10 kΩ
- Accuracy ±(2.5 % from MW. +3 digits)
- Frequency
- Measuring range 0 ... 10 Hz
- Resolution 0.01 Hz
- Accuracy ±(0.1 % from MW. +3 digits)
- Frequency
- Measuring range 10 ... 100 Hz
- Resolution 0.1 Hz
- Accuracy ±(0.1 % from MW. +3 digits)
- Frequency
- Measuring range 0.1 ... 1 kHz
- Resolution 1 Hz
- Accuracy ±(0.1 % from MW. +3 digits)
- Frequency
- Measuring range 1 ... 10 kHz
- Resolution 10 Hz
- Accuracy ±(0.1 % from MW. +3 digits)
- Frequency
- Measuring range 10 ... 100 kHz
- Resolution 100 Hz
- Accuracy ±(0.1 % from MW. +3 digits)
- Frequency
- Measuring range 0.1 ... 1 MHz
- Resolution 1 kHz
- Accuracy ±(0.1 % from MW. +3 digits)
- Frequency
- Measuring range 1 ... 10 MHz
- Resolution 10 kHz
- Accuracy ±(0.1 % from MW. +3 digits)
- General Technical Data
- Measuring functions HOLD
- Display type LCD
- Display size 3.1 inches
- Measurement rate 3 x per second
- Standard(s) IEC 1010
- Automatically switches off approx. 5 min.
- Safety standard CAT III 600 V
- max. Input impedance 10 M Ω
- Measuring range selection automatic, manual
- Diode test current 1 mA, max. Voltage 3 V.
- Display range 6000 counts
- Menu language English (US), English (GB)
- Protection class (device) IP20
- Weight 149 g.
- Operating conditions 0 ... 40 °C , 0 ... 80 % r.F.
- Storage conditions 0 ... 40 °C , 0 ... 80 % r.F.

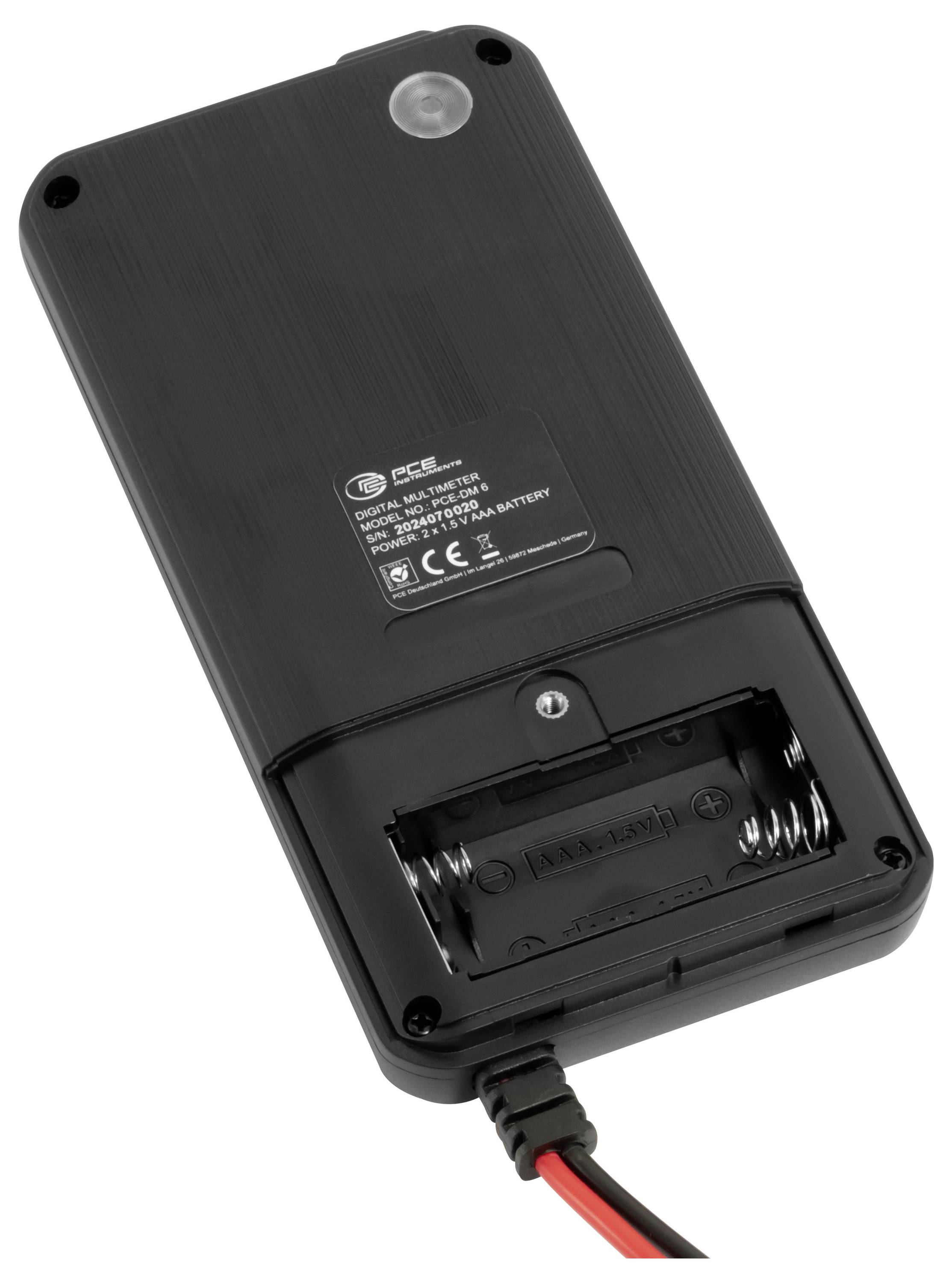

- Battery 2 x 1.5 V AAA battery , alkaline-manganese
- Capacity 1200 mAh
- Dimensions ( L x W x H ) 138 x 68 x 18 mm
- Voltage reading range DC (min.)
0 V
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
0 V
- V AC reading range (max.)
750 V
- Reading range - resistance
6 ... 60 MΩ
- Reading range - capacity
10 ... 60 mF
- Frequency reading range
1 ... 10 MHz
- Measurement type (details)
True RMS
- Power supply (details)
1.5 V
- Height
18 mm
- Width
68 mm
- Length
138 mm
- Weight
149 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 600 V
- Voltage metering
DC
AC
- Current reading
DC/TRMS
- Type
PCE-DM 6
- Display
Digital
- Display (counts)
6000
- Dim
(L x W x H) 138 x 68 x 18 mm
- Features
Data logger
Documents & Downloads
Datasheet
Datasheet 3369060 PCE Instruments PCE-DM 6 Handheld multimeter Digital Data logger CAT III 600 V Display (counts): 6000
User & Safety Instructions
User & Safety Instructions 3369060 PCE Instruments PCE-DM 6 Handheld multimeter Digital Data logger CAT III 600 V Display (counts): 6000
Description

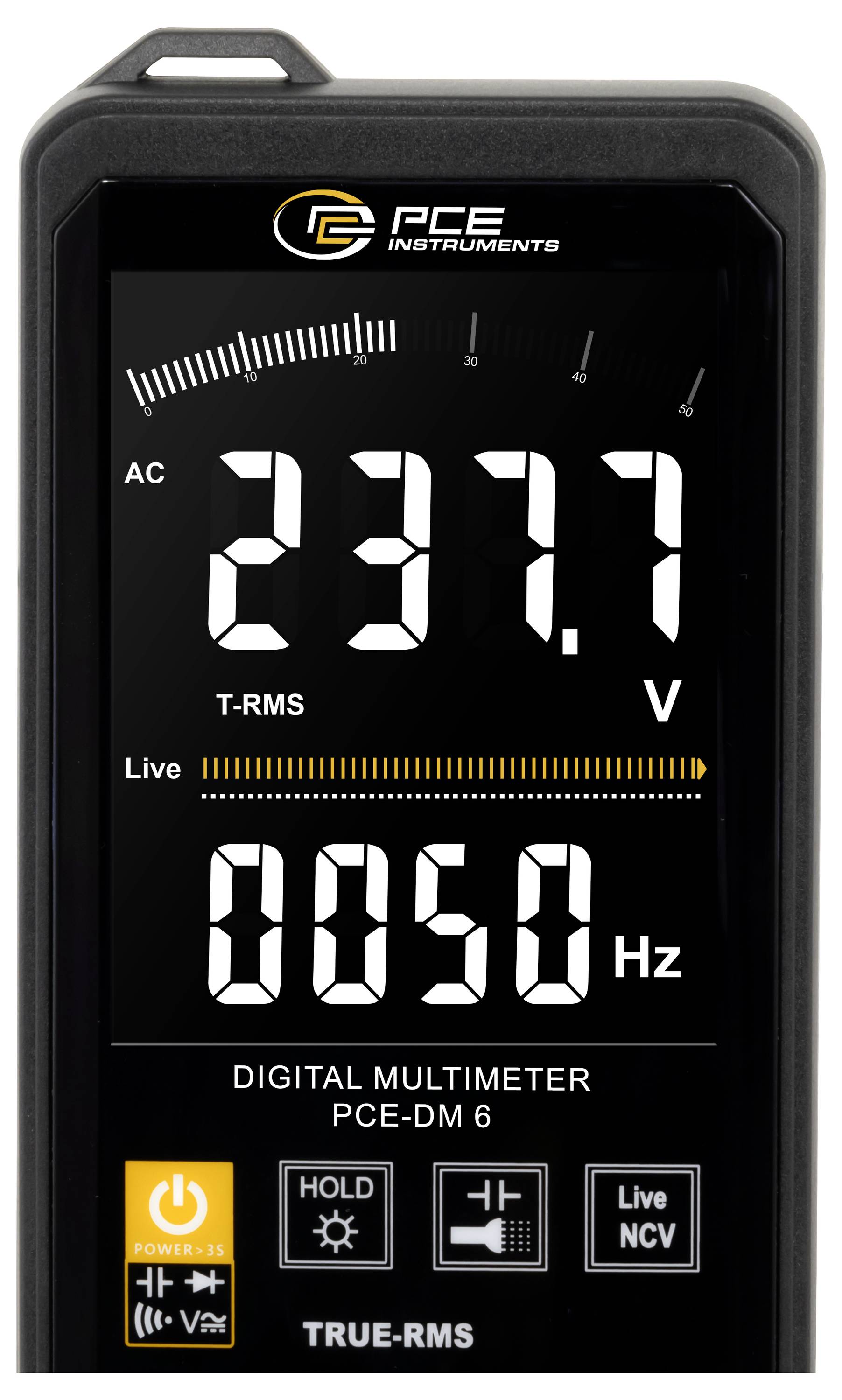

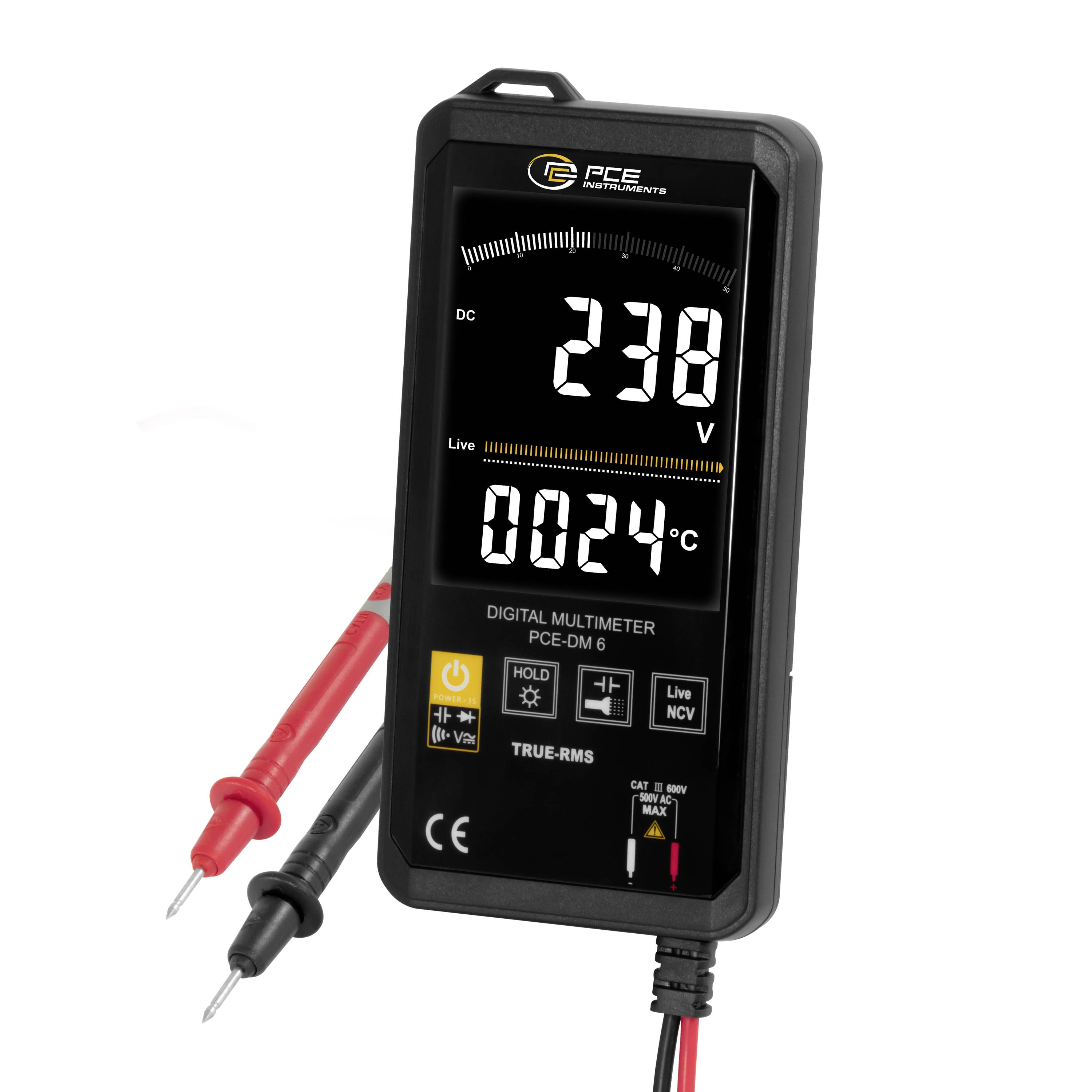

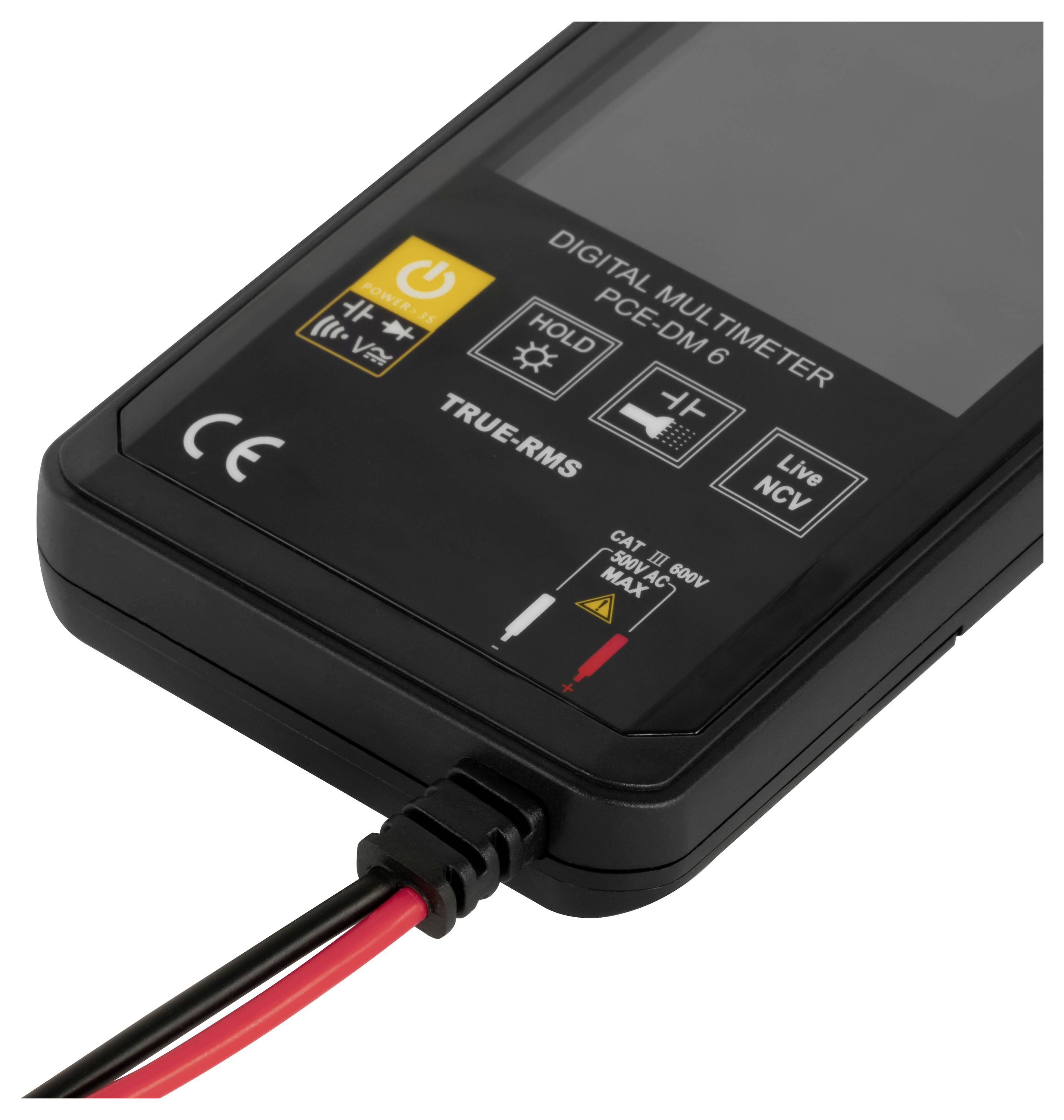

The smart TRMS digital multimeter fits - thanks to its handy design - like a smartphone in every trouser pocket and is still equipped with many favorable features. It is a versatile measuring device for DC and AC voltage, resistance, capacitance and frequency measurements. The digital multimeter offers additional functions such as a diode test, Hold function and Live Test. In addition, the digital multimeter has a contact-free voltage detection and is equipped with a 3.1-inch LC display and touch-buttons.
The flat digital multimeter has an automatic measuring range selection and a display range of 6,000 counts. The measured quantity is detected automatically; it is not necessary to change the measuring lines. The live test enables the detection of live conductors. An integrated LED on the back of the meter allows you to work in badly lit environments. This smart digital multimeter also indicates when the batteries are low. To save batteries, the device switches off automatically after prolonged inactivity.

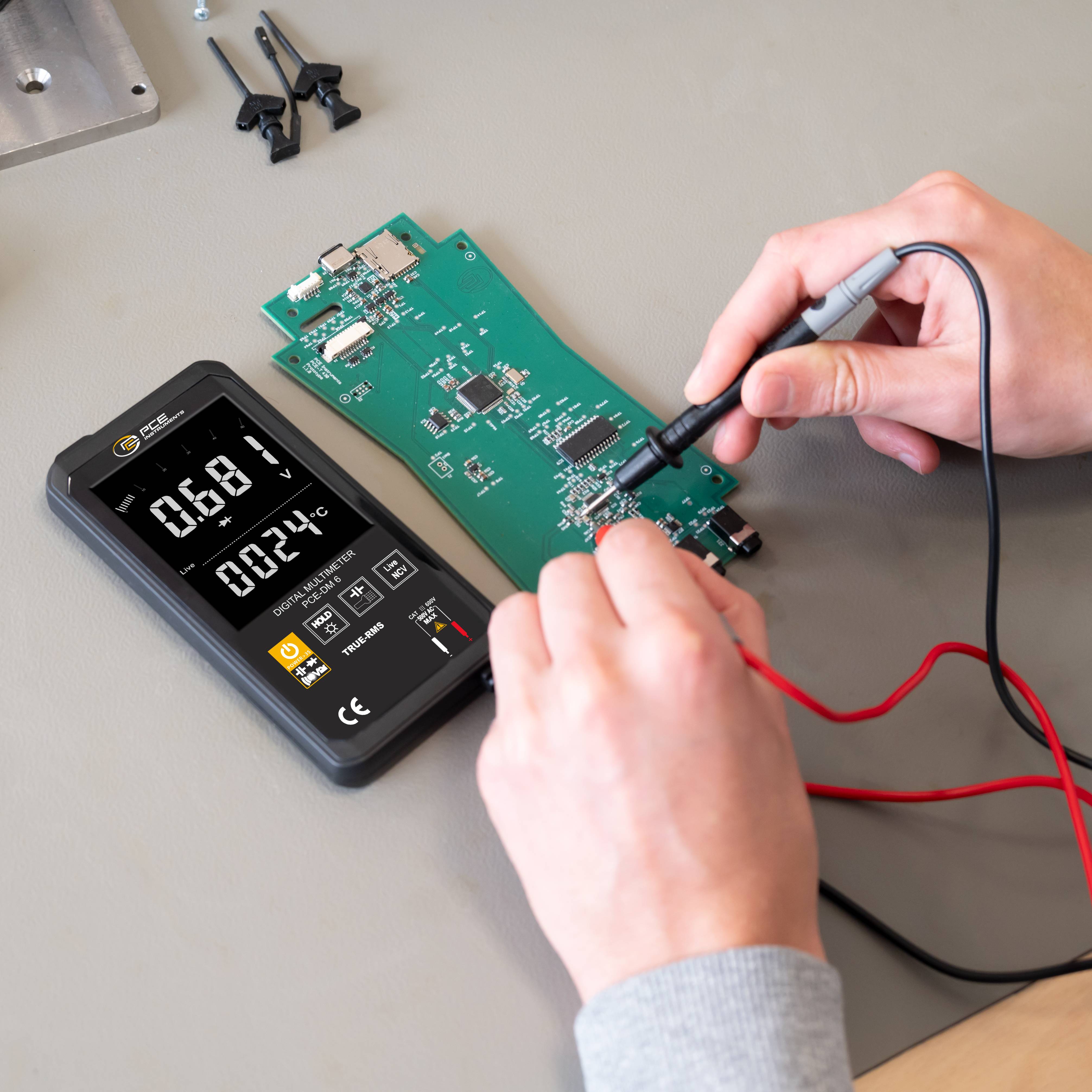

The digital multimeter is suitable for Ideal for use in electronic repairs, domestic and building wiring, maintenance of electrical devices as well as in laboratory and training environments.
This text is machine translated.
The flat digital multimeter has an automatic measuring range selection and a display range of 6,000 counts. The measured quantity is detected automatically; it is not necessary to change the measuring lines. The live test enables the detection of live conductors. An integrated LED on the back of the meter allows you to work in badly lit environments. This smart digital multimeter also indicates when the batteries are low. To save batteries, the device switches off automatically after prolonged inactivity.
The digital multimeter is suitable for Ideal for use in electronic repairs, domestic and building wiring, maintenance of electrical devices as well as in laboratory and training environments.
This text is machine translated.

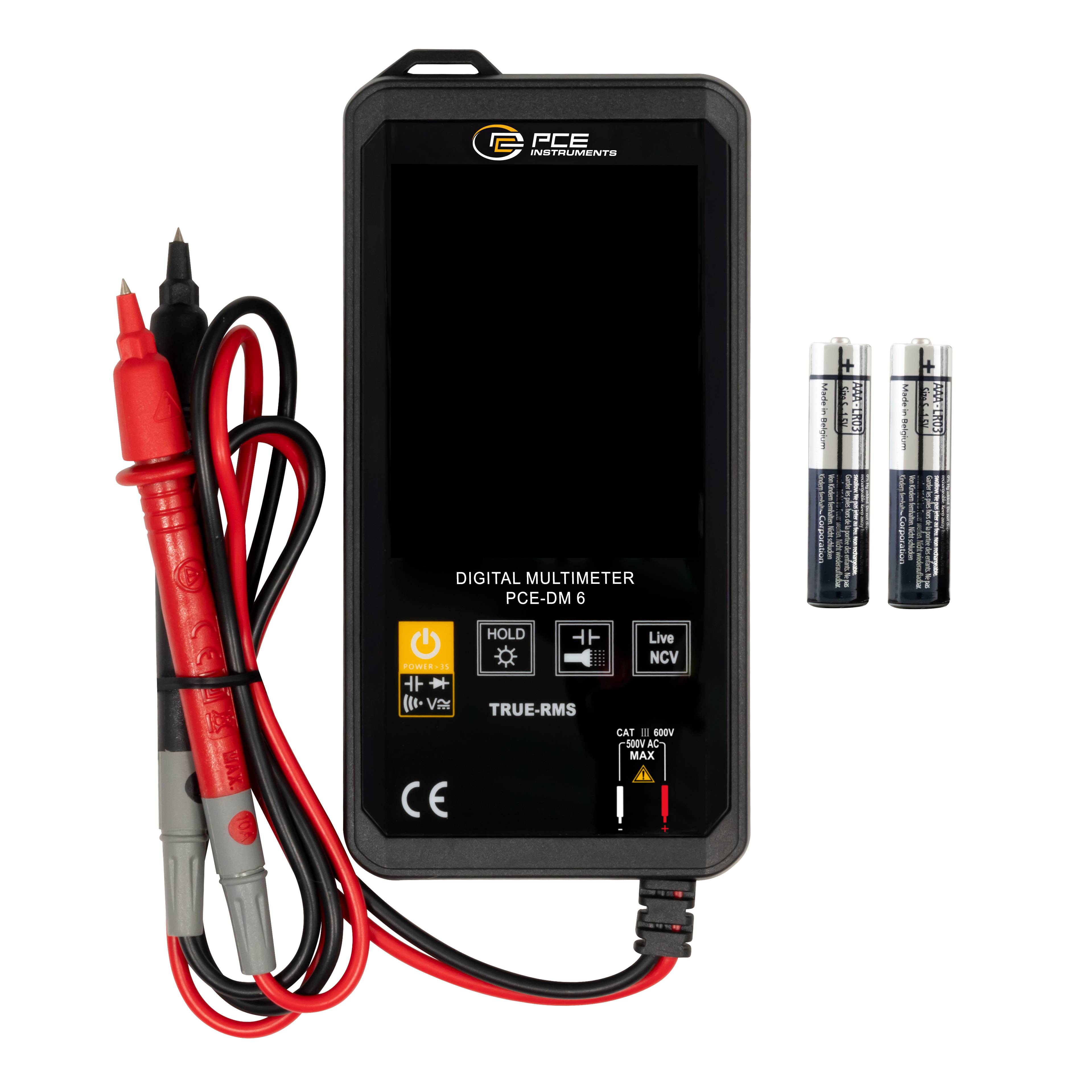

Scope of delivery
- 1 x PCE-DM 6 multimeters

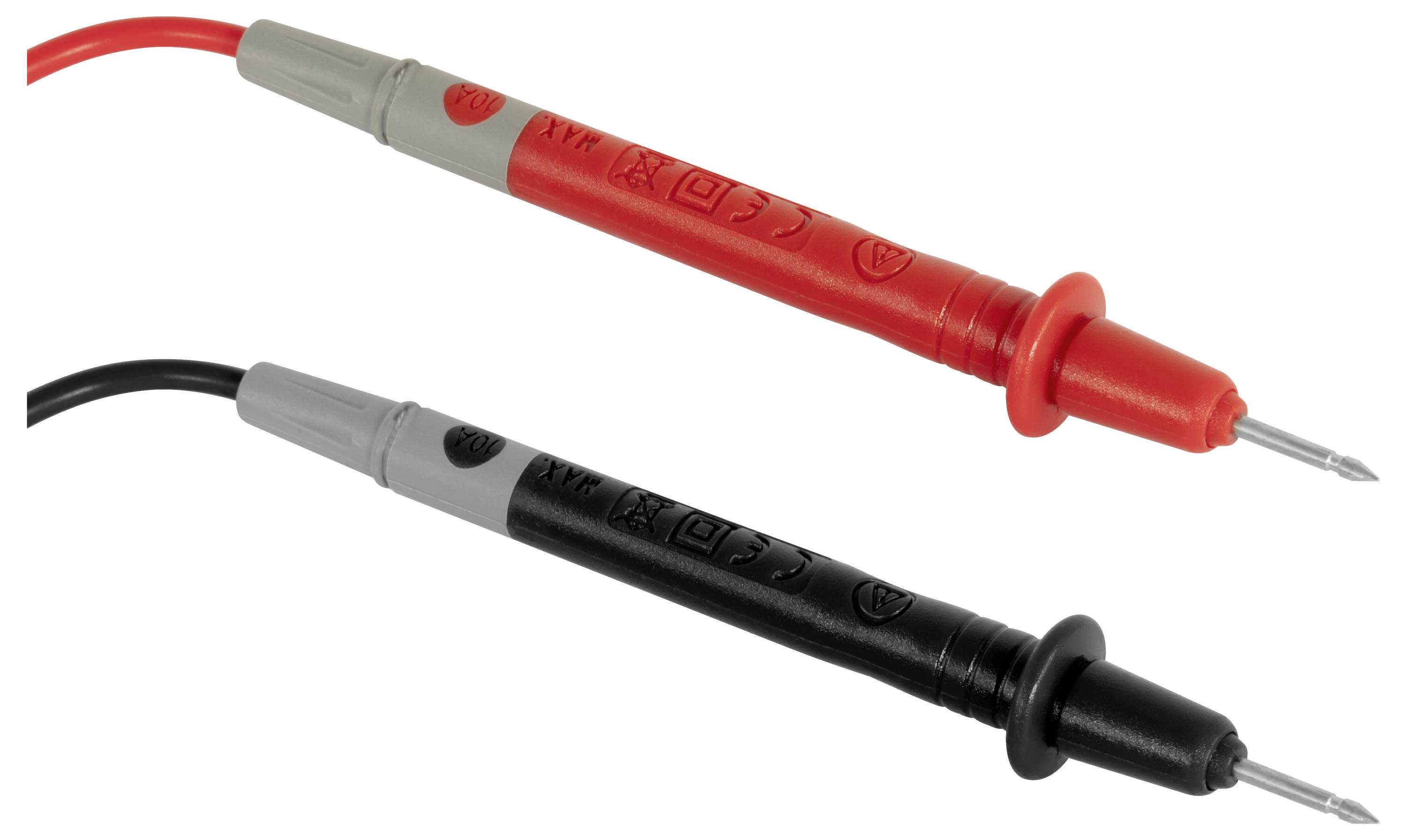

- 1 x test lead set
- 2 x Batteries AAA 1.5V
- 1x user manual
