Name: PCE Instruments PCE-DM 7 Handheld multimeter Digital Data logger CAT II 1000 V, CAT III 600 V
Brand: PCE Instruments
SKU: 3369061
Availability: InStock

Highlights & Details

PCE-DM 7

Contact-free voltage detection
Temperature reading
Automatic power off
Measuring range selection automatic and manual
Hold function

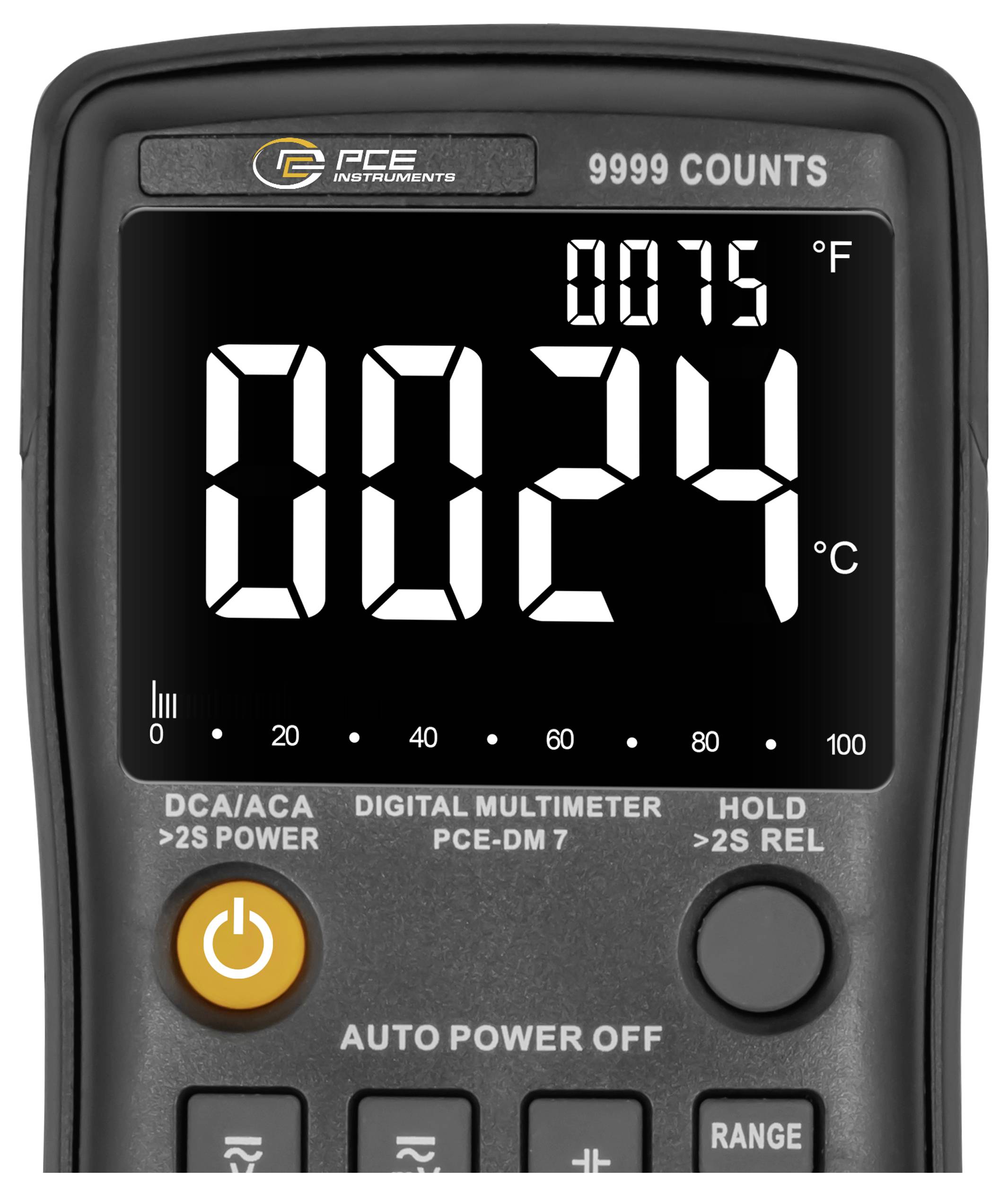

2.8 inch LC display with lighting
Small and compact design

Technical specifications

DC voltage
Measuring range 0 ... 9.999 mV
Resolution 0.001 mV
Accuracy ±(0.5 % from MW. +3 digits)
DC voltage
Measuring range 10 ... 99.99 mV
Resolution 0.01 mV
Accuracy ±(0.5 % from MW. +3 digits)
DC voltage
Measuring range 100 ... 999.9 mV
Resolution0.1mV
Accuracy ±(0.5 % from MW. +3 digits)
DC voltage
Measuring range 1 ... 9.999 V
Resolution 0.001 V
Accuracy ±(0.5 % from MW. +3 digits)
DC voltage
Measuring range 10 ... 99.99 V
Resolution 0.01 V
Accuracy ±(0.5 % from MW. +3 digits)
DC voltage
Measuring range 100 ... 999.9 V
Resolution 0.1 V
Accuracy ±(0.5 % from MW. +3 digits)
Direct current DC
Measuring range 0 ... 9999 µA
Resolution 1 µA
Accuracy ±(0.8 % from MW. +3 digits)
Direct current DC
Measuring range 10 ... 99.99 mA
Resolution 0.01 mA
Accuracy ±(0.8 % from MW. +3 digits)
Direct current DC
Measuring range 100 ... 999.9 mA
Resolution 0.1 mA
Accuracy ±(1 % from MW. +3 digits)
Direct current DC
Measuring range 1 ... 9.999 A
Resolution: 0.001 A
Accuracy ±(1 % from MW. +3 digits)
Capacitance
Measuring range 0 ... 9.999 nF
Resolution 0.001 nF
Accuracy ±(5.0 % from MW. 20 digits)
Capacitance
Measuring range 10 ... 99.99 nF
Resolution 0.01 nF
Accuracy ±(2.0 % from MW. +5 digits)
Capacitance
Measuring range 100 ... 999.9 nF
Resolution 0.1 nF
Accuracy ±(2.0 % from MW. +5 digits)
Capacitance
Measuring range 1 ... 9.999 µF
Resolution 0.001 µF
Accuracy ±(2.0 % from MW. +5 digits)
Capacitance
Measuring range 10 ... 99.99 µF
Resolution 0.01 µF
Accuracy ±(2.0 % from MW. +5 digits)
Capacitance
Measuring range 100 ... 999.9 µF
Resolution 0.1 µF
Accuracy ±(2.0 % from MW. +5 digits)
Capacitance
Measuring range 1 ... 9.999 mF
Resolution 0.001 mF
Accuracy ±(5.0 % from MW. +5 digits)
Alternating voltage AC
Measuring range 0 ... 9.999 mV
Resolution 0.001 mV
Accuracy ±(1 % from MW. +3 digits)
Frequency range 40 ... 1000 Hz
Alternating voltage AC
Measuring range 10 ... 99.99 mV
Resolution 0.01 mV
Accuracy ±(1 % from MW. +3 digits)
Frequency range 40 ... 1000 Hz
Alternating voltage AC
Measuring range 100 ... 999.9 mV
Resolution0.1mV
Accuracy ±(1 % from MW. +3 digits)
Frequency range 40 ... 1000 Hz
Alternating voltage AC
Measuring range 1 ... 9.999 V
Resolution 0.001 V
Accuracy ±(1 % from MW. +3 digits)
Frequency range 40 ... 1000 Hz
Alternating voltage AC
Measuring range 10 ... 99.99 V
Resolution 0.01 V
Accuracy ±(1 % from MW. +3 digits)
Frequency range 40 ... 1000 Hz
Alternating voltage AC
Measuring range 100 ... 750 V
Resolution 0.1 V
Accuracy ±(1 % from MW. +3 digits)
Frequency range 40 ... 1000 Hz
Alternating current (AC)
Measuring range 0 ... 9999 µA
Resolution 1 µA
Accuracy ±(1 % from MW. +3 digits)
Frequency range 40 ... 1000 Hz
Alternating current (AC)
Measuring range 10 ... 99.99 mA
Resolution 0.01 mA
Accuracy ±(1 % from MW. +3 digits)
Frequency range 40 ... 1000 Hz
Alternating current (AC)
Measuring range 100 ... 999.9 mA
Resolution 0.1 mA
Accuracy ±(1.2 % from MW. +3 digits)
Frequency range 40 ... 1000 Hz
Alternating current (AC)
Measuring range 1 ... 9.999 A
Resolution: 0.001 A
Accuracy ±(1.2 % from MW. +3 digits)
Frequency range 40 ... 1000 Hz
Resistance
Measuring range 0 ... 99.99 Ω
Resolution 0.01 Ω
Accuracy ±(1 % from MW. +3 digits)
Resistance
Measuring range 100 ... 999.9 Ω
Resolution 0.1 Ω
Accuracy ±(0.5 % from MW. +3 digits)
Resistance
Measuring range 1 ... 9.999 kΩ
Resolution 0.001 kΩ
Accuracy ±(0.5 % from MW. +3 digits)
Resistance
Measuring range 10 ... 99.99 kΩ
Resolution 0.01 kΩ
Accuracy ±(0.5 % from MW. +3 digits)
Resistance
Measuring range 100 ... 999.9 kΩ
Resolution 0.1 kΩ
Accuracy ±(0.5 % from MW. +3 digits)
Resistance
Measuring range 1 ... 9.999 M Ω
Resolution 0.001 M Ω
Accuracy ±(1.5 % from MW. +3 digits)
Resistance
Measuring range 10 ... 99.99 M Ω
Resolution 0.01 M Ω
Accuracy ±(3.0 % from MW. +5 digits)
Duty cycle
Measuring range 1 ... 99%
Resolution 0.1%
Accuracy ±(0.1 % from MW. + 2 digits)
Frequency
Measuring range 0 ... 99.99 Hz
Resolution 0.01 Hz
Accuracy ±(0.1 % from MW. + 2 digits)
Frequency
Measuring range 100 ... 999.9 Hz
Resolution 0.1 Hz
Accuracy ±(0.1 % from MW. + 2 digits)
Frequency
Measuring range 1 ... 9.999 kHz
Resolution 0.001 kHz
Accuracy ±(0.1 % from MW. + 2 digits)
Frequency
Measuring range 10 ... 99.99 kHz
Resolution 0.01 kHz
Accuracy ±(0.1 % from MW. + 2 digits)
Frequency
Measuring range 100 ... 999.9 kHz
Resolution 0.1 kHz
Accuracy ±(0.1 % from MW. + 2 digits)
Frequency
Measuring range 1 ... 5 MHz
Resolution 0.001 MHz
Accuracy ±(0.1 % from MW. + 2 digits)
Temperature
Measuring range -20 ... +1000 °C
Resolution 1 °C
Accuracy ±(2.5 % from MW. +5 digits)
Temperature
Measuring range -4 ... +1832 °F
Resolution 1 °F
Accuracy ±(2.5 % from MW. +5 digits)
General Technical Data
Measuring functions HOLD
Display type LCD with lighting
Display size 2.8 inches
Measurement rate 3 x per second
Automatically switches off approx. 5 min.
Safety standard CAT II 1000 V, CAT III 600 V.
Measuring range selection automatic, manual
Menu language English (US), English (GB)
Protection class (device) IP20
Weight 175 g
Operating conditions 0 ... 40 °C , 0 ... 75 % r.F.
Storage conditions -20 ... 60 °C , 0 ... 80 % r.F.
Battery 2 x 1.5 V AA battery , alkaline-manganese
Capacity: 3000 mAh
Dimensions ( L x W x H ) 140 x 70 x 35 mm

Voltage reading range DC (min.): 0 V

Product type: Handheld multimeter

Voltage DC reading range (max.): 999.9 V

V AC reading range (min.): 0 mV

V AC reading range (max.): 750 V

Amperage reading range DC (min.): 10 µA

A DC reading range (max.): 9.999 A

A AC reading range (min.): 0 µA

Amperage reading range AC (max.): 9.999 A

Reading range - resistance: 10 ... 99.99 MΩ

Reading range - capacity: 1 ... 9.999 mF

Frequency reading range: 1 ... 5 MHz

Measurement type (details): True RMS

Power supply (details): 1.5 V

Height: 35 mm

Width: 70 mm

Length: 140 mm

Weight: 175 g

: Manufacturer's standards (no certificate)

Reading category: CAT II 1000 V
CAT III 600 V

Voltage metering: DC
AC

Current reading: AC
DC

Type: PCE-DM 7

Display: Digital

Dim: (L x W x H) 140 x 70 x 35 mm

Temperature reading range (max.): 1000 °C

Temperature reading range (min.): -20 °C

Features: Data logger

Documents & Downloads

Datasheet

Datasheet 3369061 PCE Instruments PCE-DM 7 Handheld multimeter Digital Data logger CAT II 1000 V, CAT III 600 V

User & Safety Instructions

User & Safety Instructions 3369061 PCE Instruments PCE-DM 7 Handheld multimeter Digital Data logger CAT II 1000 V, CAT III 600 V

Description

The digital multimeter offers precise measurements for a variety of parameters, including DC and AC voltage, DC and AC current, frequency, resistance, capacity and temperature. Our digital multimeter possesses a Hold function for storing the measurement results as well as a contact-less voltage detection (NCV).

The device allows both automatic and manual measuring range selection and is equipped with an easy-to-read 2.8" LCD display, which has an illuminated display. With a measurement rate of three measurements per second, it provides fast results and automatically switches off after five minutes of inactivity, in order to extend the battery life. In addition, the digital multimeter offers a dual display: A bar graph for quick visual assessments and a numeric display for precise measurements.

The digital multimeter is operated with two 1.5 V batteries and is designed for simple single-handed operation. The compact dimensions of 140 x 70 x 35 mm make the digital multimeter a practical tool for the daily use by electricians, hardware developers or in other technical applications.

This text is machine translated.

Scope of delivery

1 x digital multimeter PCE-DM 7

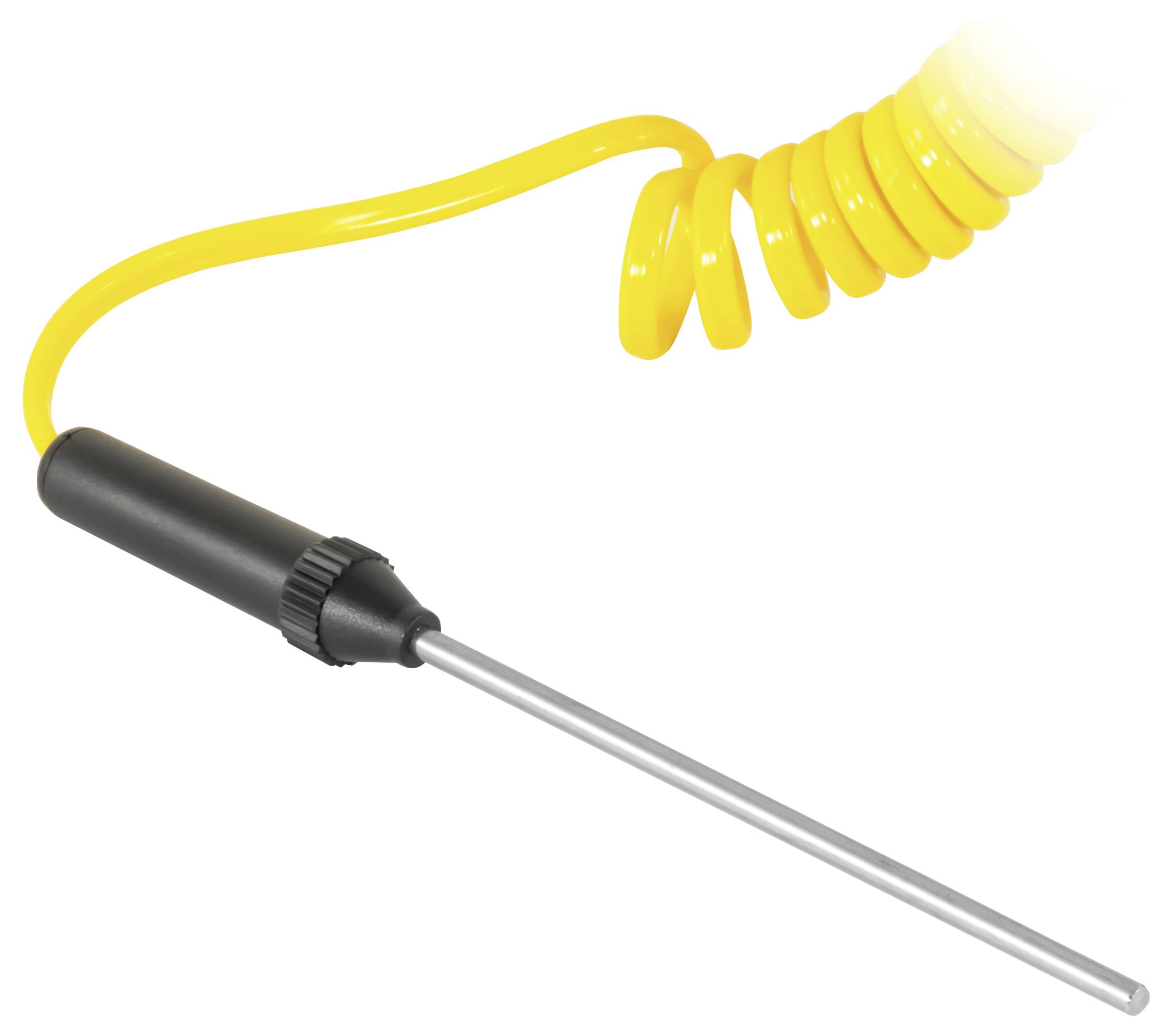

1 x temperature sensors

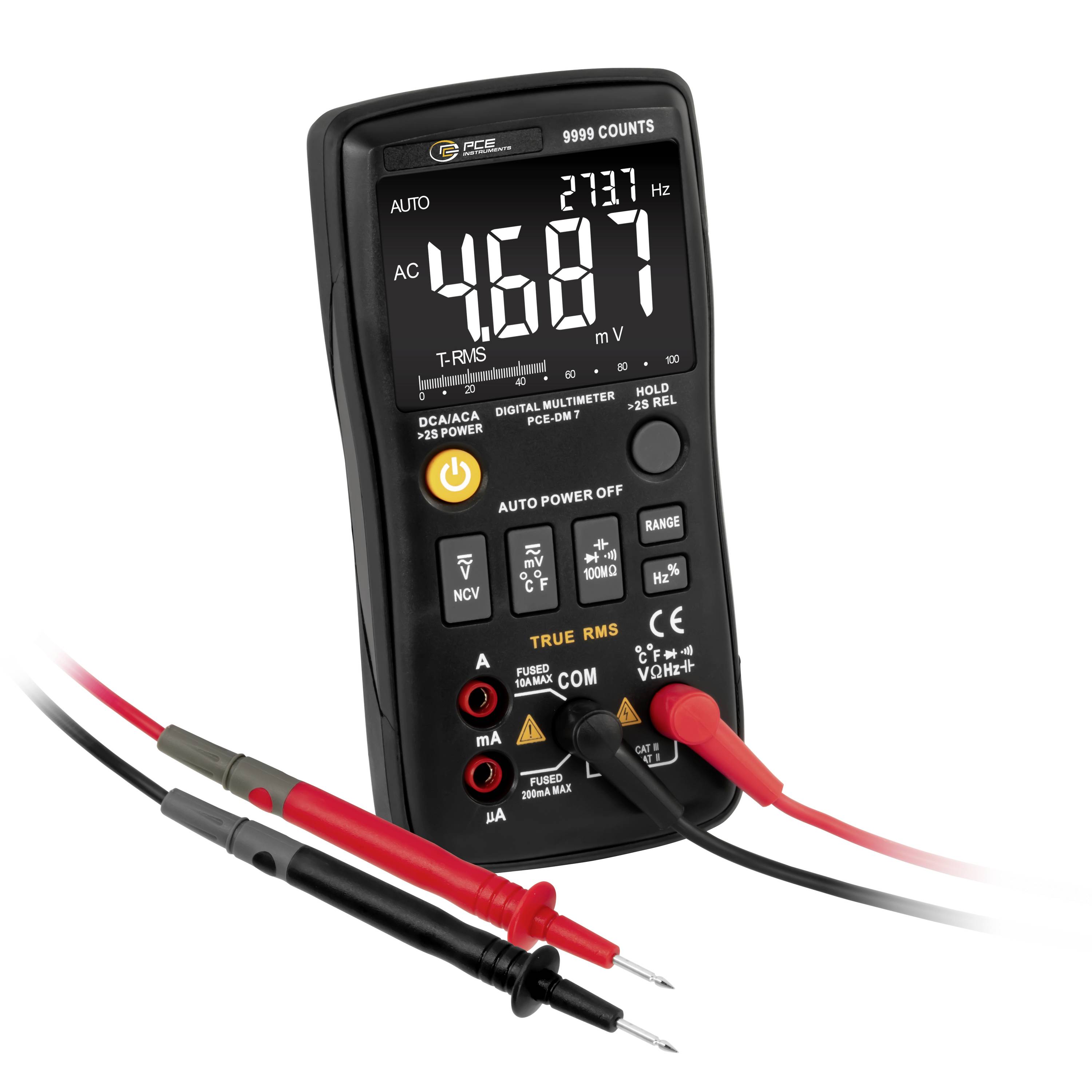

1 x test leads
2 x batteries AA 1.5 V
1x user manual
1 x storage pouch
