Name: PCE Instruments PCE-P17TC Signal converter 1 pc(s)
Brand: PCE Instruments
SKU: 2583841
Availability: InStock

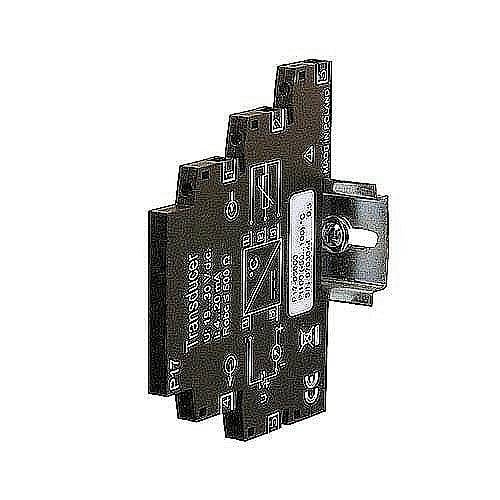

Black DIN-rail circuit module labeled 'Transducer' with printed wiring symbols and a side mounting clip.

Product type

Signal converter

Type

PCE-P17TC

Dim

(L x W x H) 77.5 x 6.2 x 100 mm

Output (current)

4 ... 20 mA

Content

1 pc(s)

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

1 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 83.99 / piece)

€ 145.00

-42 %

€ 83.99

incl. VAT

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Thermocouple signal converter

Signal converter for thermocouplesPower supply via current loopSmall installation widthMounting on DIN railOutput 4 - 20 mAEasy setup

Technical specifications

Weight 80 gInput signal: K-type thermocouplesMeasuring range: -100 °C ... +1370 °C.Load (rLoad): Max. 500 ΩConductor cross-section 0.2 mm² - 2.5 mm² (AWG24-12)Mounting width 6.2 mm

Type: PCE-P17TC

Product type: Signal converter

Dim: (L x W x H) 77.5 x 6.2 x 100 mm

Output (current): 4 ... 20 mA

Content: 1 pc(s)

Width: 6.2 mm

Height: 100 mm

Length: 77.5 mm

RoHS-compliant: Yes

Max. ambient temperature: 65 °C

Min. ambient temperature: -20 °C

Operating voltage U(B): 19 V/DC - 30 V/DC

Documents & Downloads

Datasheet

Datasheet 2583841 PCE Instruments PCE-P17TC Signal converter 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2583841 PCE Instruments PCE-P17TC Signal converter 1 pc(s)

Description

Transducer for thermocouples, conversion to 4 - 20 mA, only 6.2 mm wide, DIN rail mounting, power supply 19 - 30 V DC. The PT-100 PCE-P17TC converter converts the output signal from a thermocouple. The converter for thermocouples PCE-P17TC outputs the temperature signal as a 4 - 20 mA standard signal. This standardized signal enables easy further processing. The PCE-P17TC TC converter impresses with its simplicity. The PCE-P17TC TC converter is supplied via a current loop. No special power supply is required for the TC converter.

This text is machine translated.
