PCE Socket tower PILA 9081001 400 V
EAN:
Part number:
Item no:
Number
Total (€ 889.92 / piece)
€ 889.92
plus VAT.
Only 5 Piece(s) available
Highlights & Details
Energy steel column BV 2 x 16/5 2 xSSD 1x 9441 PC
- 2 x 16/5 2 xSSD
- IP54
Technical specifications
- Product type
Socket tower
- No. of CEE connectors
2
- Type A
Screw terminals
- Type B
CEE connector (5-pin, 16 A)
PG connector
- No. of PG sockets
2
- Inputs
1 x M25 cable gland below
- Outputs
2 x CEE 16 A 5 p400 V
2x protective contact socket 16A 250V
- Nominal input voltage
400 V
- Nominal output voltage
400 V
IP54
- Protection
1 x FI 40/4/0.03 A
- Factory colour
Grey
Red
Aluminium
- Inputs (CEE power distributor)
Screw terminals
- Outputs (CEE power distributors)
CEE connector (5-pin, 16 A)
PG connector
- Content
1 pc(s)
Description

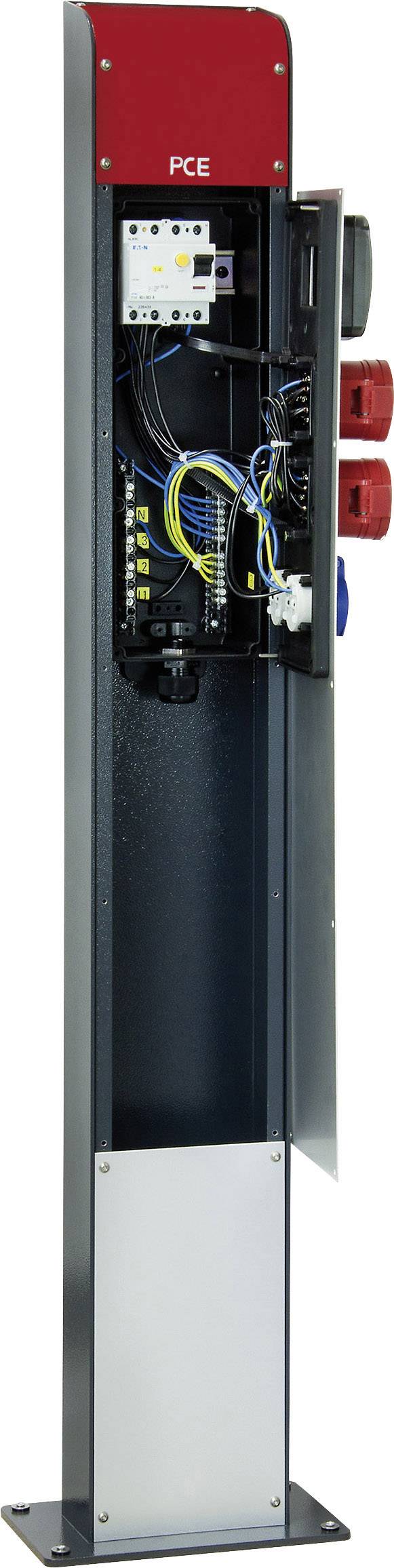

Energy columns made from powder-coated steel sheet, front panels made of anodised aluminum with integrated, closed-rubber distributor. Application areas: trade and industry, public spaces, parks, events, buildings, halls, Camping, Marine, etc.
Advantages: powder-coated steel construction (very stable). Simple mounting and connection possibilities. ENCLOSURE PROTECTION SYSTEM - electrical components in the integrated, enclosed plastic housing for optimal protection! Distribution operation completely wired and tested.
Technical Data Column: dim. (HXWXD) 1200 x 165 x 85 mm · Base plate 250 x 150 mm (hole spacing 220 x 120 mm) · Colors: housing is powder-coated dark gray/red. Front panel: aluminum anodised silver.
Technical data integrated electrical distribution: full-rubber casing · Ready-wired on main terminal · Folding window self sealing.
This text is machine translated.
Advantages: powder-coated steel construction (very stable). Simple mounting and connection possibilities. ENCLOSURE PROTECTION SYSTEM - electrical components in the integrated, enclosed plastic housing for optimal protection! Distribution operation completely wired and tested.
Technical Data Column: dim. (HXWXD) 1200 x 165 x 85 mm · Base plate 250 x 150 mm (hole spacing 220 x 120 mm) · Colors: housing is powder-coated dark gray/red. Front panel: aluminum anodised silver.
Technical data integrated electrical distribution: full-rubber casing · Ready-wired on main terminal · Folding window self sealing.
This text is machine translated.
Hints
Please note: This article is an order-related production. That is why a return is unfortunately not possible.
