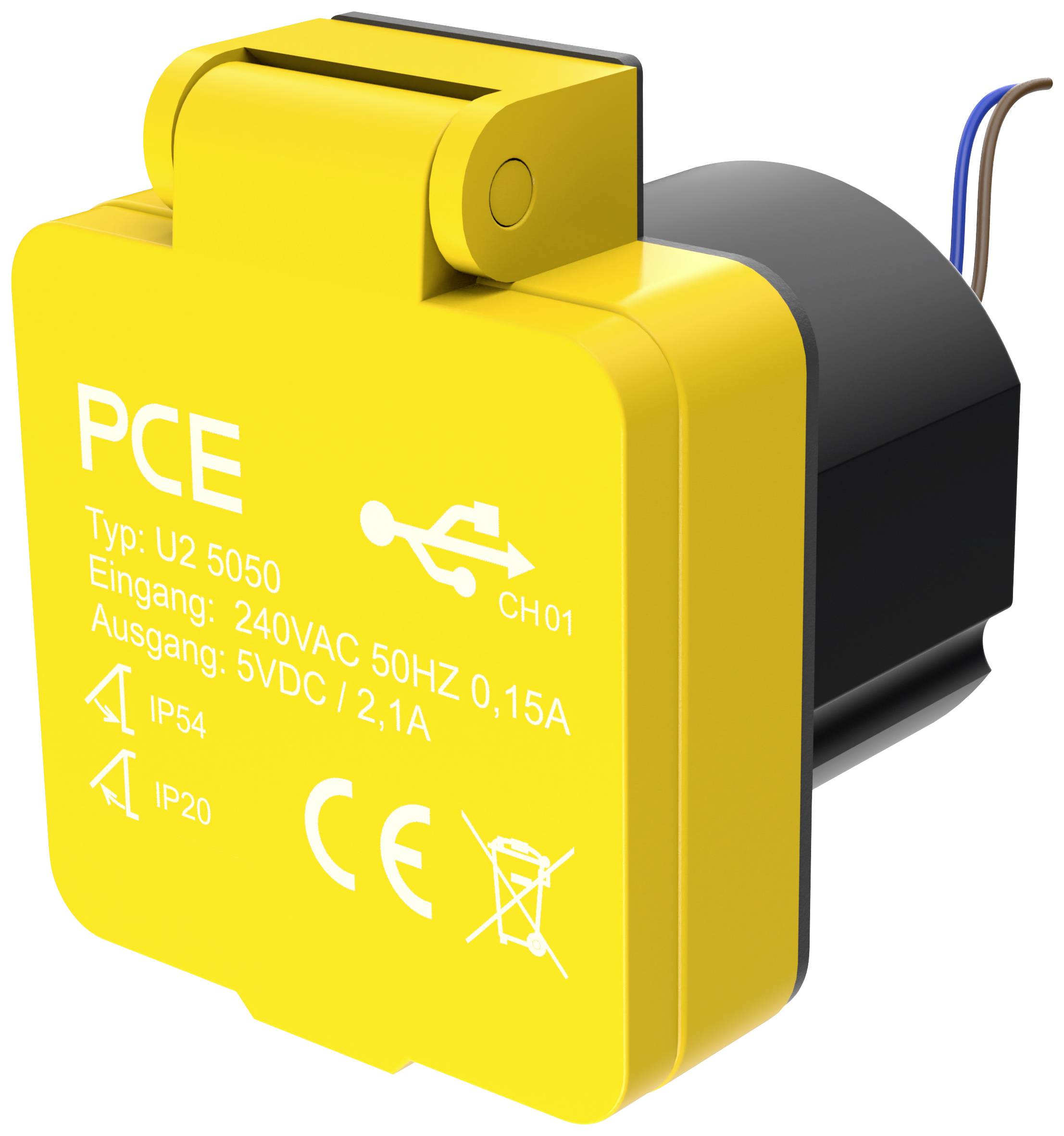

PCE U25050 Surface-mount socket incl. USB charging port IP54 Yellow
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 48.99 / piece)
€ 48.99
incl. VAT
14-day return policy included
Highlights & Details
PCE USB charging socket type A 2 x 5 V (2.1 A)

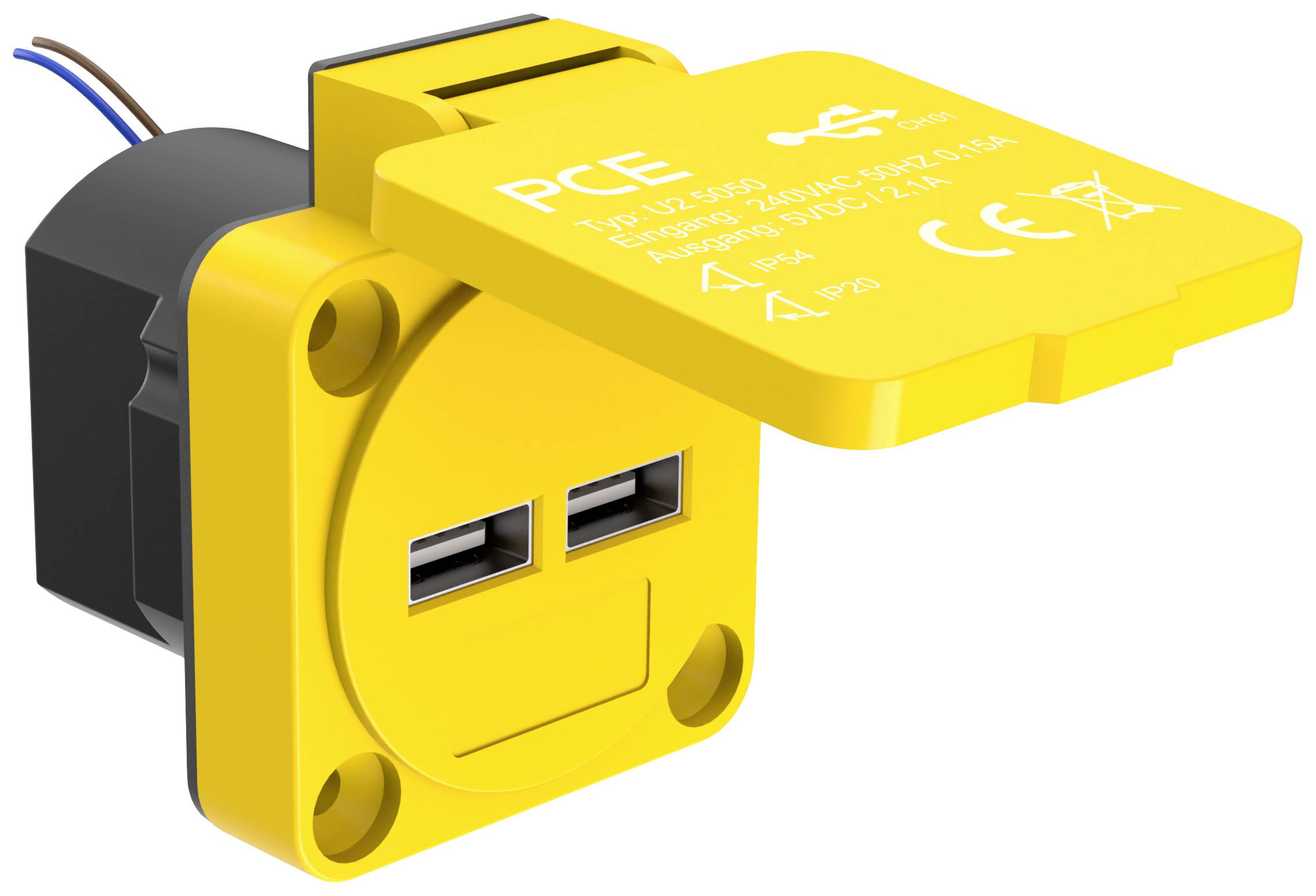

- With 2 x USB-A charging socketProtection class IP54/IP20 (closed/open cover)
Technical specifications
- Plastic housing, color: Similar RAL1023Input 240 V AC, 50/60 Hz, 0.15 A (ext. Fuse 6 A characteristic B necessary)Power supply: 2 x AWG 22-18 connecting wires, length: Approx. 180 mmOutput voltage 2 x 5 V/DCIdle consumption 0.3 W max.Nominal current: 2.1 A per plug - with integrated load management 2.1 A max.Overvoltage category II, protection class IIFlange lock spacing 38 x 38 mm
- Product type
Surface-mount socket
- Light bulb features
incl. USB charging port
- Outlets
2
- Nominal voltage
240 V
- Mounting type
Surface-mount
- Factory colour
Yellow
IP54
- Dim
(W x H x D) 50 x 62.5 x 50.3 mm
- Width
50 mm
- Height
62.5 mm
- Depth
50.3 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2575541 PCE U25050 Surface-mount socket incl. USB charging port IP54 Yellow
User & Safety Instructions
User & Safety Instructions 2575541 PCE U25050 Surface-mount socket incl. USB charging port IP54 Yellow
Description
USB charging socket 5 V/2.1 A, 2-way, with power supply for charging and supplying mobile devices with USB-plug.
This text is machine translated.
This text is machine translated.
Features
- 2 USB type A connection socket for simultaneous charging of 2 end devicesIntegrated electron. Short-circuit and overload protectionIncl. Flange seal (rubber).
