Buy Phoenix Contact 1712025 Screw terminal 2.50 mm² Number of pins 2 Green 50 pc(s) | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

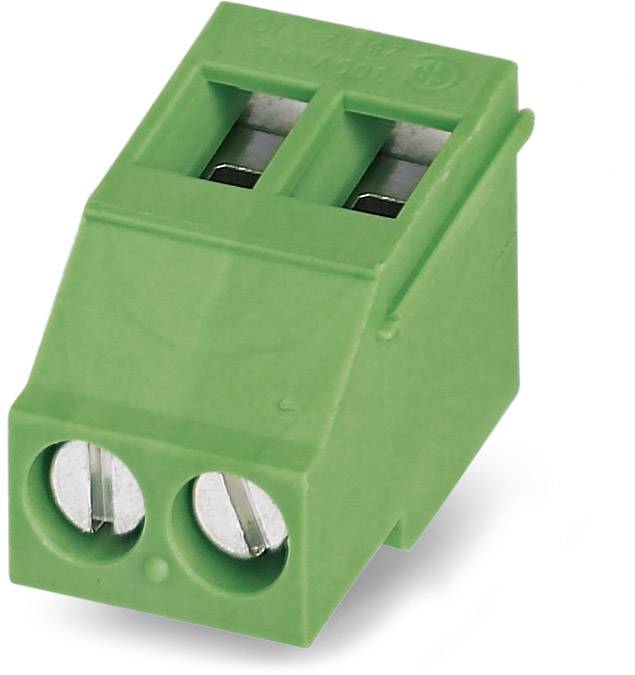

A green two-pole connector for electronic circuits, suitable for wire-to-printed circuit board connections.

A green two-pole connector for electronic circuits, suitable for wire-to-printed circuit board connections.

Image similar

Phoenix Contact

Product type

Screw terminal

CS

5.00 mm

Pins per row

2

Number of pins

2

Connection

Screw terminal

Print

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 20 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 1.36 / piece)

€ 67.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

PCB terminal block MKDSF 3/ 2

MKDSF 3 / 2
Industrial packaging, pack of 50

Technical specifications

Type: MKDSF 3/ 2

Product type: Screw terminal

Features: + extractor sleeve

CS: 5.00 mm

Pins per row: 2

Number of pins: 2

Series: MKDSF

Stripping length (max.): 8.00 mm

Connection: Screw terminal
Print

Nominal current: 24 A

Cross section (flexible) (min.): 0.20 mm²

Nominal current - rounded value: 24 A

Cross section (inflexible) (min.): 0.20 mm²

Cross section (flexible) (max.): 2.50 mm²

Cross section (inflexible) (max.): 4.00 mm²

AWG (min.): 24

Connector orientation: Perpendicular (to the PCB)

AWG max.: 12

Contact material: Tin plated

Factory colour: Green

Actuation direction: Parallel (to the PCB)

Manufacturer part #: 1712025

Industrial packaging: Yes

Content: 50 pc(s)

Nominal voltage: 400 V

Width: 18.00 mm

Height: 15.30 mm

Length: 10.00 mm

Features: + one-hand locking mechanism

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 772400 Phoenix Contact 1712025 Screw terminal 2.50 mm² Number of pins 2 Green 50 pc(s)

User & Safety Instructions

User & Safety Instructions 772400 Phoenix Contact 1712025 Screw terminal 2.50 mm² Number of pins 2 Green 50 pc(s)

Description

PCB terminal block, Nominal current: 24 A, Nom. voltage: 400 V, Pitch: 5 mm, Number of positions: 2, Connection method: Screw connection, Mounting: Soldering, Conductor/PCB connection direction: 90 °, Color: green, The article can be aligned to create different nos. of positions!

Description

PCB terminal block, Nominal current: 24 A, Nom. voltage: 400 V, Pitch: 5 mm, Number of positions: 2, Connection method: Screw connection, Mounting: Soldering, Conductor/PCB connection direction: 90 °, Color: green, The article can be aligned to create different nos. of positions!
