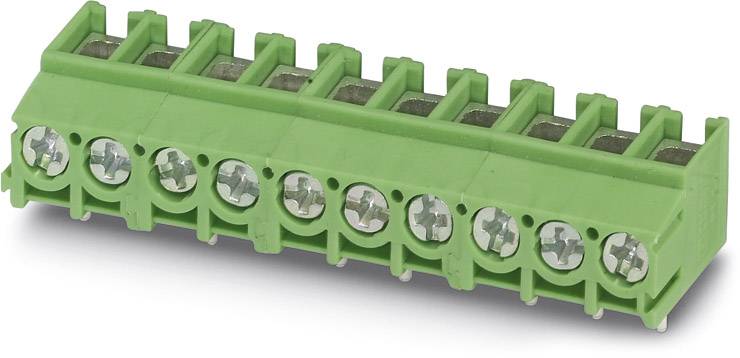

Green screw terminal block with eight connections, used in electrical circuits for securely connecting wires.

Green screw terminal block with eight connections, used in electrical circuits for securely connecting wires.

Image similar

Product type

Screw terminal

CS

5.00 mm

Pins per row

5

Number of pins

5

Connection

Screw terminal

Print

Datasheet (PDF)

Phoenix Contact

Dispatches on Fri, 12 Feb 2027

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 100 pc(s))

Set(s)

Total (€ 1.40 / piece)

€ 139.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Screw compact terminal block PT 2,5/ 5-5,0-V

Content 100 pc(s)

Technical specifications

Type: PT 2,5/ 5-5,0-V

Product type: Screw terminal

Features: + wire protector

CS: 5.00 mm

Pins per row: 5

Number of pins: 5

Series: PT

Stripping length (max.): 6.50 mm

Connection: Screw terminal
Print

Nominal current: 32 A

Cross section (flexible) (min.): 0.50 mm²

Nominal current - rounded value: 32 A

Cross section (inflexible) (min.): 0.50 mm²

Cross section (flexible) (max.): 4.00 mm²

Cross section (inflexible) (max.): 4.00 mm²

AWG (min.): 20

Connector orientation: Perpendicular (to the PCB)

AWG max.: 10

Contact material: Tin plated

Factory colour: Green

Actuation direction: Parallel (to the PCB)

Manufacturer part #: 1987753

Industrial packaging: Yes

Content: 100 pc(s)

Nominal voltage: 400 V

Width: 25.00 mm

Height: 13.50 mm

Length: 13.10 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 566643 Phoenix Contact 1987753 Screw terminal 4.00 mm² Number of pins 5 Green 100 pc(s)

User & Safety Instructions

User & Safety Instructions 566643 Phoenix Contact 1987753 Screw terminal 4.00 mm² Number of pins 5 Green 100 pc(s)

Description

PCB terminal block, Nominal current: 32 A, Nom. voltage: 400 V, Pitch: 5 mm, Number of positions: 5, Connection method: Screw connection, Mounting: Soldering, Conductor/PCB connection direction: 90 °, Color: green

Hints

Special order, no right of withdrawal.

Description

PCB terminal block, Nominal current: 32 A, Nom. voltage: 400 V, Pitch: 5 mm, Number of positions: 5, Connection method: Screw connection, Mounting: Soldering, Conductor/PCB connection direction: 90 °, Color: green

Hints

Special order, no right of withdrawal.
