Phoenix Contact IB IL CNT-PAC 2861852 PLC add-on module 24 V DC
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 275.00 / piece)
€ 275.00
incl. VAT
14-day return policy included
Technical specifications
- Product type
PLC add-on module
- Type
IB IL CNT-PAC
- No. of analogue inputs
1
- No. of inputs (max.)
1
- No. of outputs (max.)
1
- No. of inputs
1 x
- No. of outputs
1 x
- Output signal current
500 mA
- Max. output current per channel
500 mA
- Min. operating voltage
19.2 V DC
- Operating voltage
19.2 - 30 V DC
- Max. operating voltage
30 V DC
- Output signal voltage
24 V
- Operating voltage
24 V DC
- Height
135 mm
- Length
71.5 mm
- Width
24.4 mm
IP20
- Dim
(L x W x H) 71.5 x 24.4 x 135 mm
- Connection method
3-core
- Connection
Inline data shunter
- Field bus system
In-line local bus
- Manufacturer part #
2861852
- Max. ambient temperature
55 °C
- Min. ambient temperature
-25 °C
- Logic voltage UL
7.5 V DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 193995 Phoenix Contact IB IL CNT-PAC 2861852 PLC add-on module 24 V DC
User & Safety Instructions
User & Safety Instructions 193995 Phoenix Contact IB IL CNT-PAC 2861852 PLC add-on module 24 V DC
Description

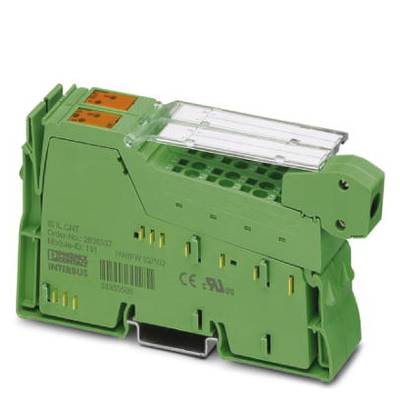

Inline counter terminal block, complete with accessories (plug and labeling field), 1 counter input, 1 control input, 1 output, 24 V DC, 500 mA, 3-wire connection method
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
