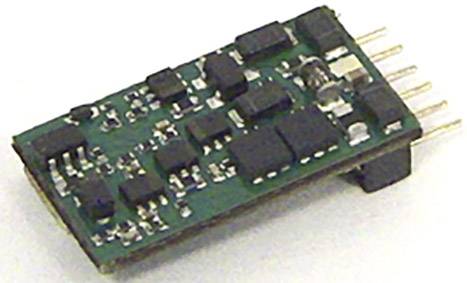

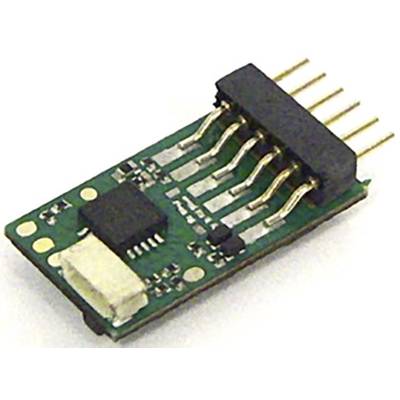

PIKO 46400 Locomotive decoder Module, incl. connector, w/o cable
EAN:
Part number:
Item no:
Number
Total (€ 45.37 / piece)
€ 45.37
plus VAT.
Only 4 Piece(s) available
Technical specifications
- Decoder manufacturer
Piko
- Digital format
DCC
MM
SX
- Decoder type
Module
incl. connector
w/o cable
- Interfaces
6-pin
- Max. motor current
2000 mA
- Length
15 mm
- Width
8.6 mm
- Height
3.9 mm
- Age category
15 years and over
- Dim
(L x W x H) 15 x 8.6 x 3.9 mm
- Manufacturer part #
46400
- Type
SmartDecoder 4.1 6-pin
- Product type
Locomotive decoder
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2247497 PIKO 46400 Locomotive decoder Module, incl. connector, w/o cable
Description
The PIKO SmartDecoder 4.1 6pol is a universal digital decoder of the latest generation with versatile light outputs and a 0.8 A motor control. PIKO SmartDecoder 4.1 supports DCC data formats with Rail-ComPlus®, Motorola® and Selectrix® and can also be used on analogue systems. The decoder recognizes the respective operating mode automatically.
This text is machine translated.
This text is machine translated.
Features
- Fully automatic detection of the operating modes
- Modes of operation DCC, MM, Selectrix®, DC and AC
- Motor current duration 0.8 A
- Motor peak current 2.0 A
- Total current function outputs 0.4 A
- MicroSUSI
- Programmable motor characteristic
- Brake distance modes
- Short-circuit and overtemperature protection
- Dimensions: 15 x 8.6 x 3.9 mm.
