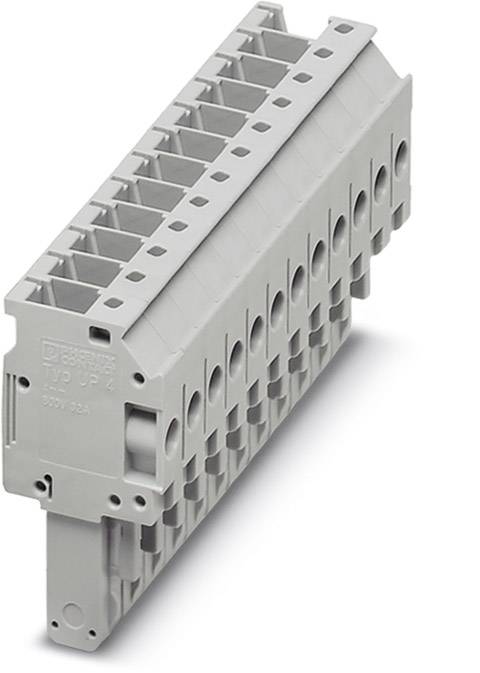

Plug UP 4/12 3060225 Phoenix Contact
Packaging type
Piece
Factory colour
Grey
AWG max.
10
AWG (min.)
26
Stripping length (max.)
9 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 10 pc(s))
Total (€ 17.00 / piece)
€ 169.99
incl. VAT
14-day return policy included
Highlights & Details
Plug UP 4/12
- UP 4/12
- Industrial packaging, pack of 10
- This text is machine translated.
Technical specifications
- Packaging type
Piece
- Factory colour
Grey
- AWG max.
10
- AWG (min.)
26
- Stripping length (max.)
9 mm
- Connector colour
Grey
- Manufacturer part #
3060225
- Industrial packaging
Yes
- Content
10 pc(s)
- Clamp width
73.79999999 mm
- Nominal voltage
800 V
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Number of pins
12
- Width
6.20 mm
- Type
UP 4/12
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (max.)
6 mm²
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Insulation class
I
- Contamination level
3
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 566128 Plug UP 4/12 3060225 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 566128 Plug UP 4/12 3060225 Phoenix Contact
Description
Plug, Connection method: Screw connection, Number of positions: 12, Cross section: 0.14 mm² - 6 mm², AWG: 24 - 10, Width: 74.4 mm, Height: 41.2 mm, Color: gray
Hints
Special order, no right of withdrawal.
