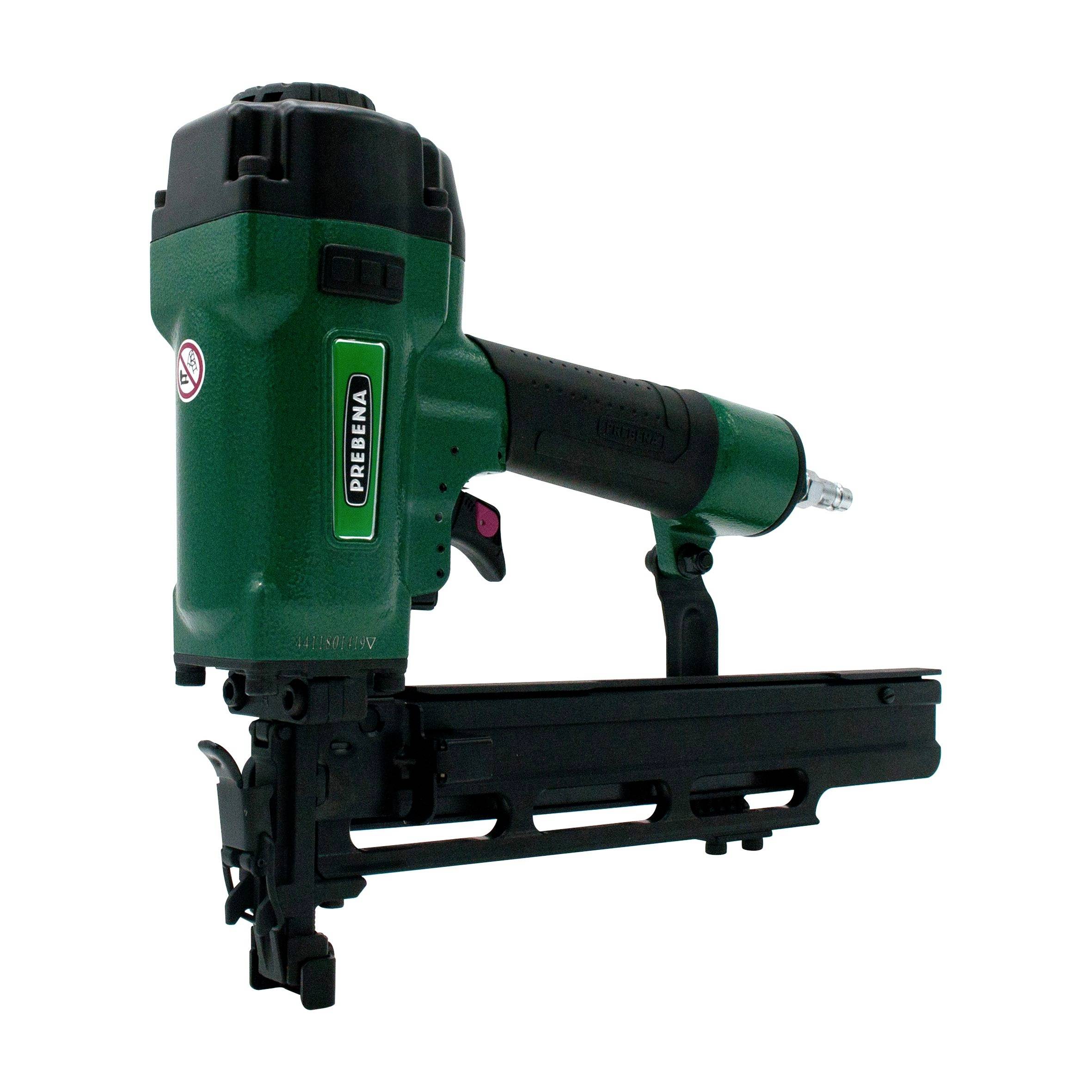

Prebena 4C-Z50 Pneumatic nail gun 8 bar
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 352.10 / piece)
€ 352.10
plus VAT.
14 days return policy included
Technical specifications
- Operating pressure (bar): 5.0 - 8.0
- Mounting material type: Staples
- Application areas: Sub-structures, chipboard/OSB, gypsum board, Fermacell, economy formwork, boxes, Cardboard pallets, packaging
- Individual shot trigger: Yes
- Trigger protection: Yes
- Noise absorber: Yes
- Top-loader magazine: Yes
- Air consumption (l/nail): 1.70
- Length (mm span) 16 - 50
- Powder-coated
- Splash-proof: Yes
- Anti-skid handle: Yes
- High service life: Yes
- Light design: Yes
- Mounting material type Z
- Packaging: Plastic carrying case
- Adjustable exhaust air: Yes
- Quick-release lock of the tool: Yes
- Tool lock - without tools to open: Yes
- Amplified driver: Yes
- Multi-function stop: Yes
- Product type
Pneumatic nail gun
- Max. operating pressure
8 bar
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3778498 Prebena 4C-Z50 Pneumatic nail gun 8 bar
User & Safety Instructions
User & Safety Instructions 3778498 Prebena 4C-Z50 Pneumatic nail gun 8 bar
Conformity certificate
Conformity certificate 3778498 Prebena 4C-Z50 Pneumatic nail gun 8 bar
Description

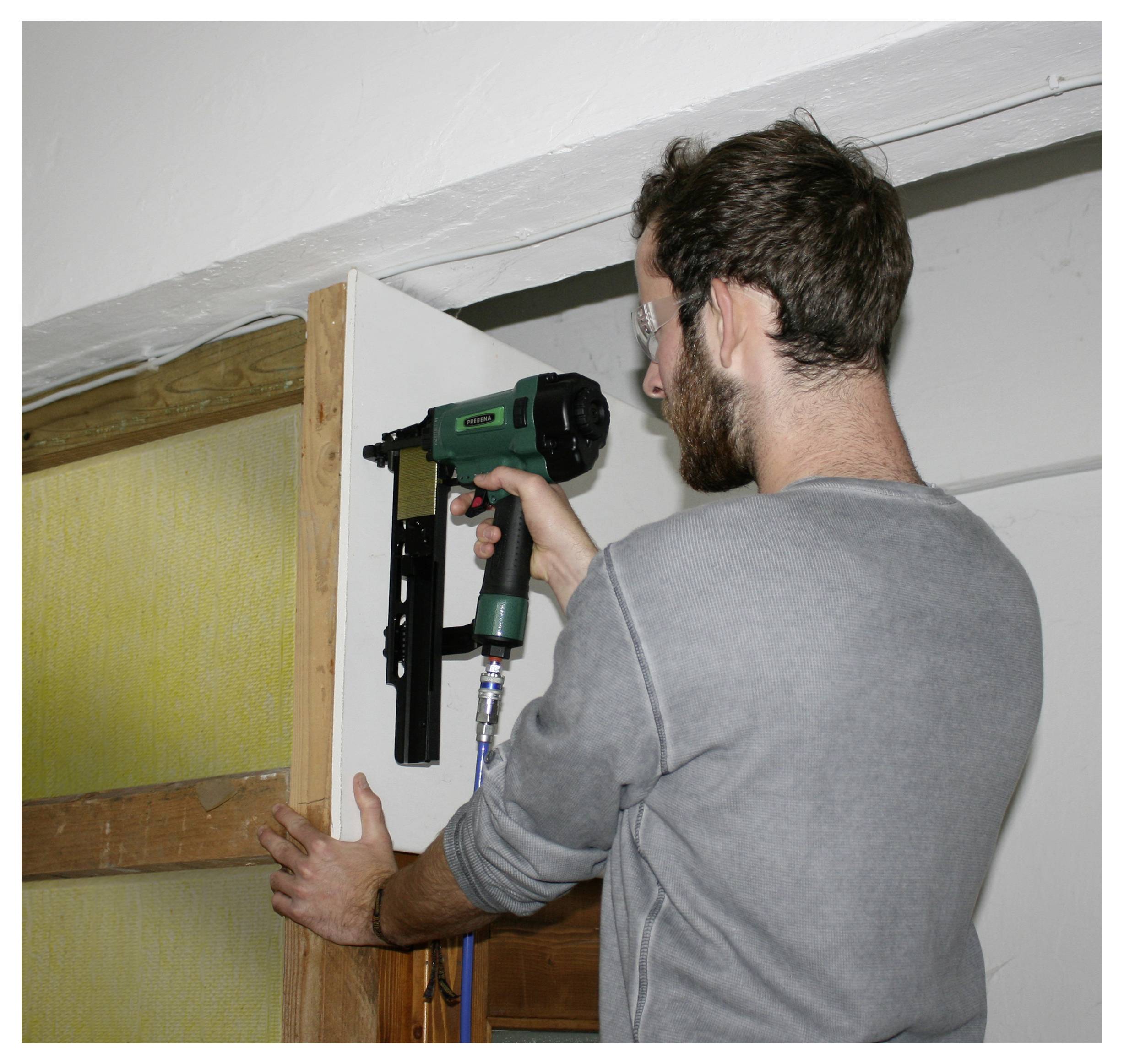

This universal staple gun is ideal for securing Fermacell, plasterboard and wood fiber boards. It processes the Z-clamp recommended by leading system manufacturers in the lengths of 16 - 50 mm.
The 4C-Z50 is supplied as standard with a multi-function stop which - depending on the application area - can be rotated by 180° and can therefore be changed from smooth to toothed. For example, the splined stop is mainly used for securing groove and spring profiles, cross-section formwork or wire protection fences, while the smooth stop is more used for flat materials such as gypsum boards, boxes, corrugated boards, chipboard etc. The clamp nail driver also has a adjustable depth setting, in order to optimally adjust the impact power. If the fastening medium should become jammed, this can be removed by loosening the quick release without additional tools. The changeover mechanism integrated in the release lever from single shot to contact release is actuated with a simple rotation. The 4C-Z50 was installed with a specially reinforced driver to meet the high demands of the construction site and/or operation to the full extent. The standard equipment also includes the adjustable exhaust air at the casing head, the noise absorber and the plastic transport case. In addition, Prebena offers a special stop with a wide contact surface for plasterboard and Fermacell as an accessory.
The Z-clamps to be processed in this air pressure nail are subject to the most stringent quality requirements and conform to Eurocode 5 or DIN EN14592. The highly galvanized (CSVHA) and stainless steel clamps in 1.4301 (CRFHA) are tested and ETA certified. As an innovative manufacturer, Prebena produces the ETA clamps on its specially developed production equipment to meet the high certification requirements. Against the background of these certified production and testing processes, the Z-clamps have been recommended for years by leading system manufacturers such as Xella, Fermacell, Swiss Krono, AGEPAN etc. for the professional attachment of their components!
Processed by Device: Staple type Z of 16 - 50mm length.
This text is machine translated.
The 4C-Z50 is supplied as standard with a multi-function stop which - depending on the application area - can be rotated by 180° and can therefore be changed from smooth to toothed. For example, the splined stop is mainly used for securing groove and spring profiles, cross-section formwork or wire protection fences, while the smooth stop is more used for flat materials such as gypsum boards, boxes, corrugated boards, chipboard etc. The clamp nail driver also has a adjustable depth setting, in order to optimally adjust the impact power. If the fastening medium should become jammed, this can be removed by loosening the quick release without additional tools. The changeover mechanism integrated in the release lever from single shot to contact release is actuated with a simple rotation. The 4C-Z50 was installed with a specially reinforced driver to meet the high demands of the construction site and/or operation to the full extent. The standard equipment also includes the adjustable exhaust air at the casing head, the noise absorber and the plastic transport case. In addition, Prebena offers a special stop with a wide contact surface for plasterboard and Fermacell as an accessory.
The Z-clamps to be processed in this air pressure nail are subject to the most stringent quality requirements and conform to Eurocode 5 or DIN EN14592. The highly galvanized (CSVHA) and stainless steel clamps in 1.4301 (CRFHA) are tested and ETA certified. As an innovative manufacturer, Prebena produces the ETA clamps on its specially developed production equipment to meet the high certification requirements. Against the background of these certified production and testing processes, the Z-clamps have been recommended for years by leading system manufacturers such as Xella, Fermacell, Swiss Krono, AGEPAN etc. for the professional attachment of their components!
Processed by Device: Staple type Z of 16 - 50mm length.
