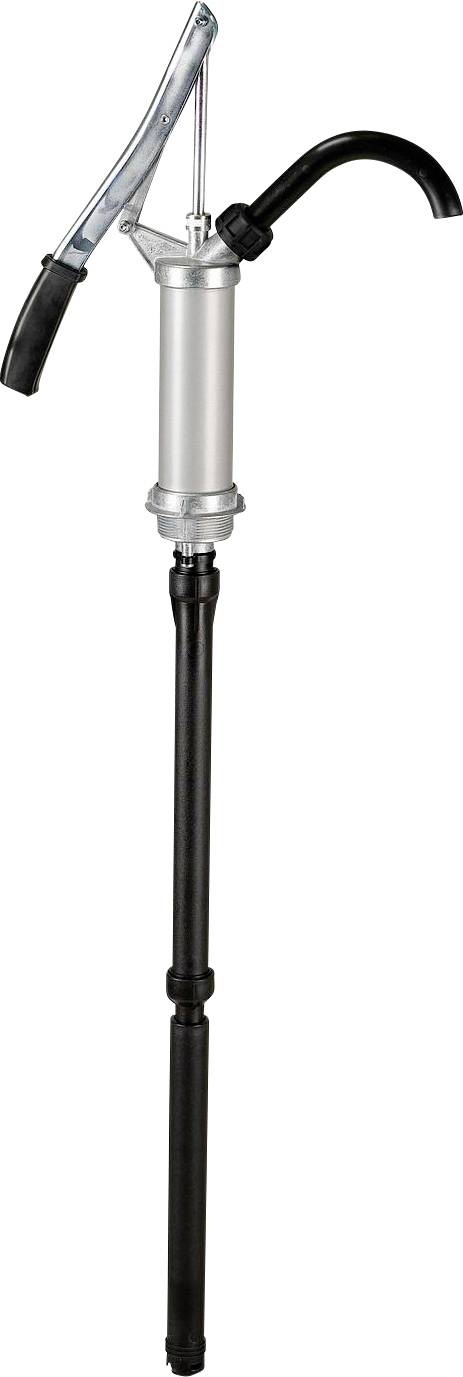

Pressol 13012 SRL 480-900-16 l/min-STAK Barrel pump 18
EAN:
Part number:
Item no:
Number
Total (€ 35.29 / piece)
€ 42.85
-18 %
€ 35.29
plus VAT.
14-day return policy included
Technical specifications
- Flow rate 0.3 l/stroke
- Flow rate at 60 strokes: 18 l/min.
- Media: Oils up to SAE 90
- Application: Container for 60/200/220 l.
- Spout: Spout, fixed with union nut
- Length of suction pipe (mm) 355 mm
- Diving depth (2-part): 355 - 625 mm
- Immersion depth (3-part): 685 - 955 mm
- Screw connection: G 2'' a
- Materials of the wetted parts:
- Pump head: Impact-resistant die-cast zinc
- Pump body: Aluminum
- Suction pipe: HDPE (high density polyethylene)
- Outlet manifold: PP
- SEALS: PVC, NBR, FKM
- Product type
Barrel pump
- Max. feed rate
18
- Immersion depth
955 m. m
- Weight
1.59 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2373558 Pressol 13012 SRL 480-900-16 l/min-STAK Barrel pump 18
Description
· Telescopic suction tube (13 094) adjustable in length (from 355 to 955 mm)
· ergonomic handle, non-slip, very good power transmission and handling
Special features:
· Can be used for engine oil from SAE 5 W to SAE 50, gear oil from SAE 75 W to SAE 90, fuel oil, diesel, machine oil, cutting oil, Petroleum, undiluted frost protection
· due to the easy disassembly, a problem-free cleaning is possible possible
· in the suction pipe can be easily made without tools Install a check valve
· The medium does not run into the through the check valve Container back
This text is machine translated.
