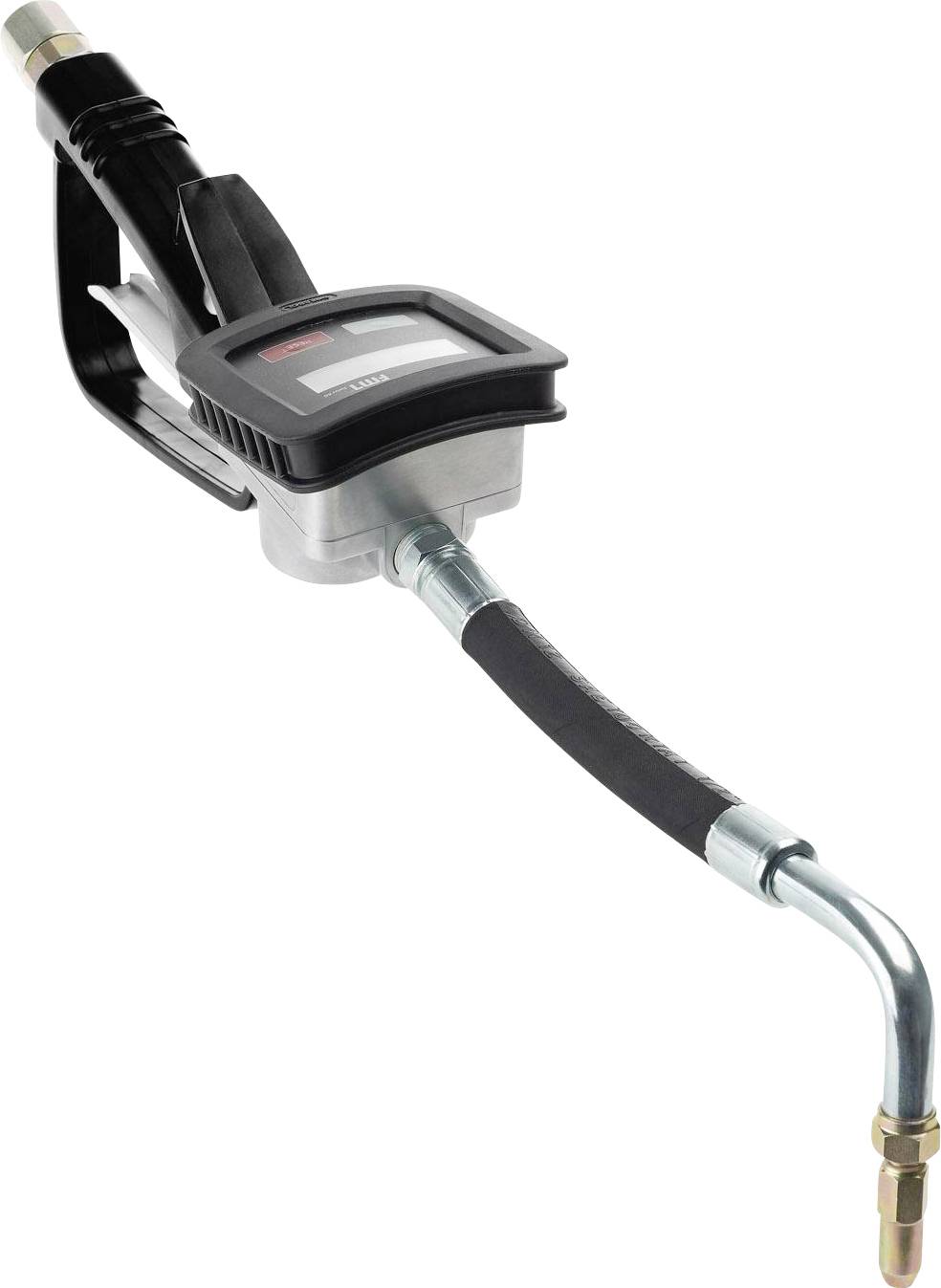

Pressol 19698 NEF Handheld digital counter
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 184.87 / piece)
€ 184.87
plus VAT.
Only 5 Piece(s) available
Technical specifications
- Connection thread: G 1/2'' BSP
- Nominal diameter: DN 12
- Measuring principle: Oval wheels
- Typical media: Engine oils SAE 5 to 50, gear oils SAE 80 to 240
- Flow rate 0 - 30 l/min.
- Viscosity: 8 - 5000 MPa s
- Nominal pressure 70 bar
- Operating pressure: Min. 0.30
- Temperature range -10 to +50 °C)
- Measuring accuracy ± 0.5 %
- Repeatability ± 0.3%
- Resolution 0.002 l
- Pulses 216 pulses/l
- Design: Non-calibratable (NEF)
- Housing material: Die-cast aluminum
- Display: digital, three decimal places and two decimal places
- Digit height: 8 mm
- Battery type LR1 1.5 V
- Battery life: Approx. 2 years at 0.5 h operation per day (20 °C)
- Length
590 mm
- Width
120 mm
- Height
155 mm
- Dim
(L x W x H) 590 x 120 x 155 mm
- Weight
1.92 kg
- Product type
Handheld digital counter
Documents & Downloads
Datasheet
Datasheet 2373574 Pressol 19698 NEF Handheld digital counter
User & Safety Instructions
User & Safety Instructions 2373574 Pressol 19698 NEF Handheld digital counter
Description
· Discharge hose with 90° angle (19 746) and anti-drip mouthpiece, can be closed manually
· Swivel joint (19 616)
· Valve
Special features:
· Housing including the chamber for the electronics of die-cast aluminum, cast skin is not machined
· Shock-proof electronics
· easy to read large 5-digit display
· Display reset
· Rubber buffer provides shock protection in hard use
· The measuring accuracy can be adjusted to the viscosity via the calibration factor
· User-adjustable display units: Liters + gallons
