Pressol 13044 G 2''-ABS+PA 6 SRL 355-955-24 l/min Barrel pump 24
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 80.66 / piece)
€ 109.24
-26 %
€ 80.66
plus VAT.
Only 8 Piece(s) available
Highlights & Details

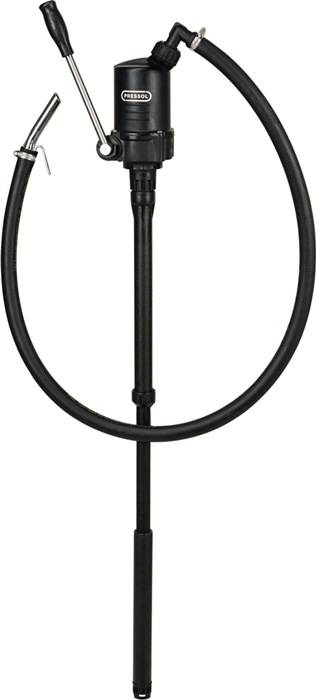

Barrel PUMP-G 2"-M 64x4-ABS+PA6 SRL 355-955-24 l/min.
- Pump casing with piston, hand lever and outlet manifold
- Telescopic suction pipe (13 094) in the length adjustable (from 355 to 955 mm)
- Socket adapter G 2'' (13 085) and barrel adapter M 64x4 (13 085 003)
- Outlet hose, 1500 mm, with steel spout (13 044 010)
- Tube holder (00 845)
- Outlet manifold (81 112)
Technical specifications
- Flow rate 0.4 l/stroke
- Flow rate at 60 strokes: 24 l/min.
- Conveying media: Oils up to SAE 50, diesel, petroleum, kerosene, glycerin and radiator antifreeze undiluted
- Use: Drums 60/200/220 l.
- Length of three-part suction pipe 355 - 955 mm
- Screw connection: G 2'' a and M 64x4 a
- Materials of the wetted parts:
- Pump body: ABS + PA6
- Seals: FKM
- Metal parts: Steel, galvanized stainless steel, powder-coated
- Product type
Barrel pump
- Max. feed rate
24
- Immersion depth
955 m. m
- Weight
1.24 kg
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2373561 Pressol 13044 G 2''-ABS+PA 6 SRL 355-955-24 l/min Barrel pump 24
User & Safety Instructions
User & Safety Instructions 2373561 Pressol 13044 G 2''-ABS+PA 6 SRL 355-955-24 l/min Barrel pump 24
Description
Special features: Constant flow rate, over years. Fully dismantled - easy to clean. Spare parts, seals and lifting pistons available for 10 years. Simple barrel mounting using barrel adapter. Can be positioned freely in 30° raster.
