Name: Pressol 23510082 FZP 60 l/min-230 V-1~AC-50 Hz Electric diesel & fuel oil pump 230 V AC
Brand: Pressol
SKU: 2373666
Availability: BackOrder

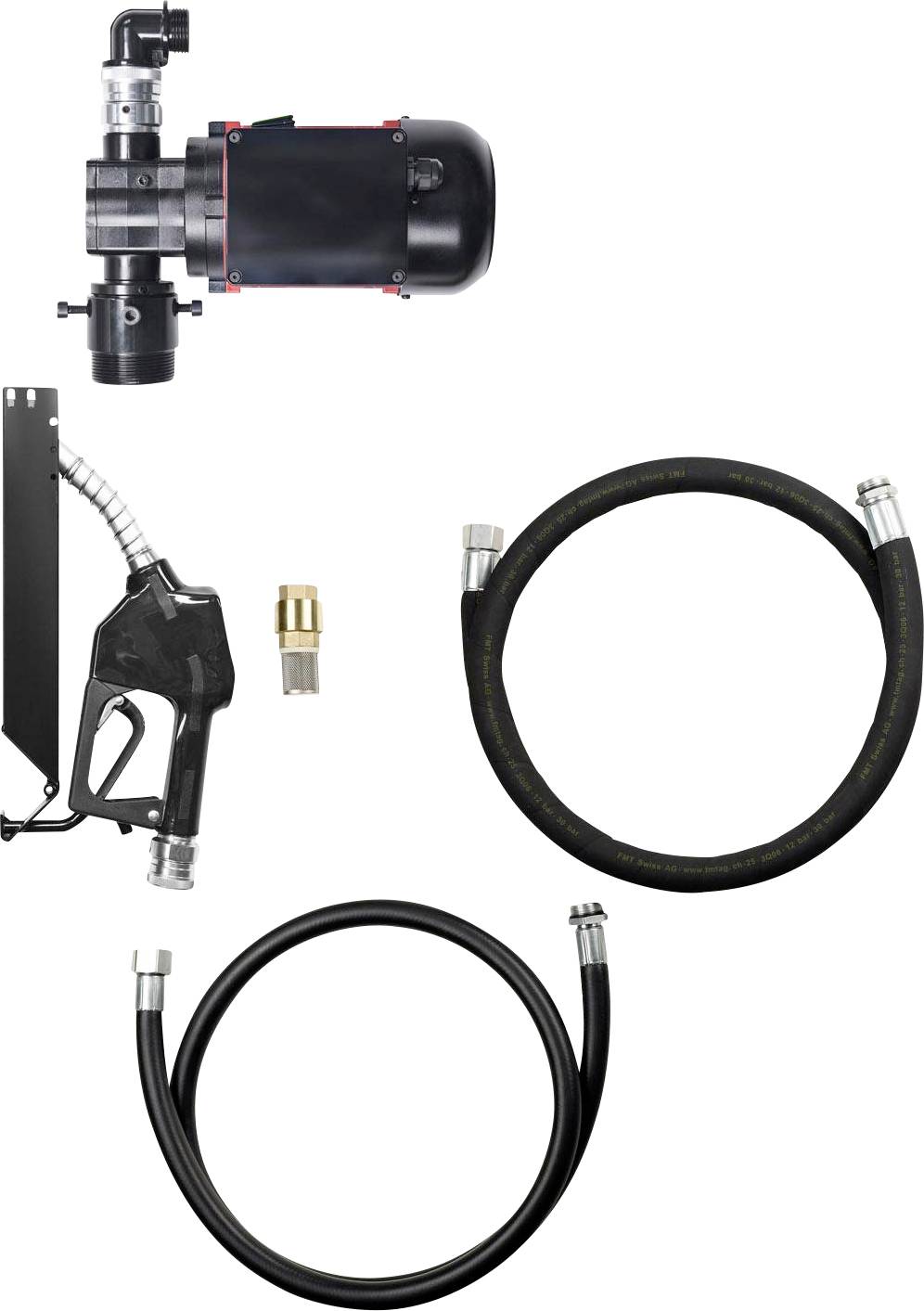

Fuel Tank Set with pump, two hoses and dispensing nozzle, suitable for diesel fuel transfer. Includes adapters and mounting accessories.

Image similar

EAN:

Part number:

Item no:

Dispatches on Thu 12 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 559.00 / piece)

€ 559.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

PVC connection cable, length 2 m
Connection on suction side: G 1'' i.
Pressure side connection: G 1'' i.
Hydraulic data:
Type Pump: Vane pump, self-priming
Flow rate at free outlet: 60 l/min.
Discharge pressure up to 1.8 bar
Suction height 5 m
Media: Fuel oil and diesel fuels
Motor data:
Insulation class: F
Maximum permissible temperature: 155 °C.
Voltage: 230 V
Frequency: 50 Hz
Current consumption: 3 A.
Power: 0.6 kW
Thermal protection: Self-resetting
Duty cycle: Continuous operation - a real endurance test
Torque: 1.27 Nm
Speed 2800 rpm
Design: IMB 3
Materials of the wetted parts:
Seals: FKM (Viton®)/NBR
Pump housing: AlSi 12 (seawater-resistant)
Stator: 1.4301
Wings: POM

Product type: Electric diesel & fuel oil pump

Operating voltage: 230 V AC

Max. delivery head: 18 m

Max. discharge pressure: 1.8 bar

Hose connector: G1"

Pressure connection: G1"

Power consumption (P1): 600 W

Immersion depth: 5 m

Selfpriming up to: 5 m

Length: 280 mm

Width: 115 mm

Height: 170 mm

Dim: (L x W x H) 280 x 115 x 170 mm

Weight: 13.36 kg

: IP66

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2373666 Pressol 23510082 FZP 60 l/min-230 V-1~AC-50 Hz Electric diesel & fuel oil pump 230 V AC

Description

· for 200 to 1000 L containers
· Socket screw connection, G 2" a, G 1" a (19 524)
· vane pump with integrated bypass (23 430)
· On and off switch
· Hover protection according to WHG (Water Budget Act), permanently effective
· Automatic tap valve with type approval and swivel joint, ZVABD (23 168)
· Drop hose, 4 m, DN 19, G 1" a, G 1" i (23 155 957)
· Suction hose, 1.6 m, DN 25, G 1" a, G 1" i (23 156)
· Foot valve with suction cup (19 890)
· Universal tap valve holder (23 174)
· first-class electrical machinery and pump construction
· designed for long total life
· Encapsulation of the electric motor, this largely prevents the formation of condensation water that causes short-circuit in the event of strong temperature fluctuations
· Motor and switch housing made of impact-resistant die-cast aluminum
· Continuous operation - a real endurance runner
· high suction power, 5 m.
· Close tolerances ensure high suction and pressure performance at the best possible efficiency
· Low weight and extremely long life due to the choice of materials

This text is machine translated.
