Pressol 23517100 MOBIFIxx 35 l/min-9.2 gpm Electric diesel & fuel oil pump 12 V DC 3500 ml/min
EAN:
Part number:
Item no:
Number
Total (€ 340.34 / piece)
€ 340.34
plus VAT.
Technical specifications
- Connection cable with alligator clips, length (m) / (ft): 3 / 10
- Connection on suction side: G 1'' i.
- Pressure side connection: G 1'' i.
- Hydraulic data:
- Type Pump: Vane pump, self-priming
- Flow rate at free outlet up to
- (l/min) / (gpm): 35/9.2
- Suction height up to (m) / (ft): 3 / 10
- Discharge pressure to (bar) / (psi): 1.6 / 23.2
- Media: Fuel oil and diesel fuels
- Motor data:
- Insulation class: F
- Maximum permissible limit temperature (°C) / (°F): 155 / 311
- VOLTAGE (V): 12 V DC
- Current consumption (A): 19
- Power (W) 230
- Fuse (A): 25 A fuse
- Duty cycle at free outlet max. (min): 180
- Runtime (min) with closed
- Tap valve max.: 2
- Torque (Nm): 0.38
- Speed (rpm): 3000
- Design: IMB 5
- IP66 protection rating
- Materials of the wetted parts
- Seals: FKM (Viton®)/NBR
- Pump housing: AlSi 12 (seawater-resistant)
- Stator: GG 25
- Wings: POM
- Operating voltage
12 V DC
- Max. delivery head
16 m
- Max. feed rate
3500 ml/min
- Max. discharge pressure
1.6 bar
- Power consumption (P1)
230 W
- Immersion depth
3 m
- Selfpriming up to
3 m
- Max. cable length
3 m
- Length
130 mm
- Width
130 mm
- Height
350 mm
- Dim
(L x W x H) 130 x 130 x 350 mm
- Weight
9.38 kg
IP66
- Product type
Electric diesel & fuel oil pump
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2373668 Pressol 23517100 MOBIFIxx 35 l/min-9.2 gpm Electric diesel & fuel oil pump 12 V DC 3500 ml/min

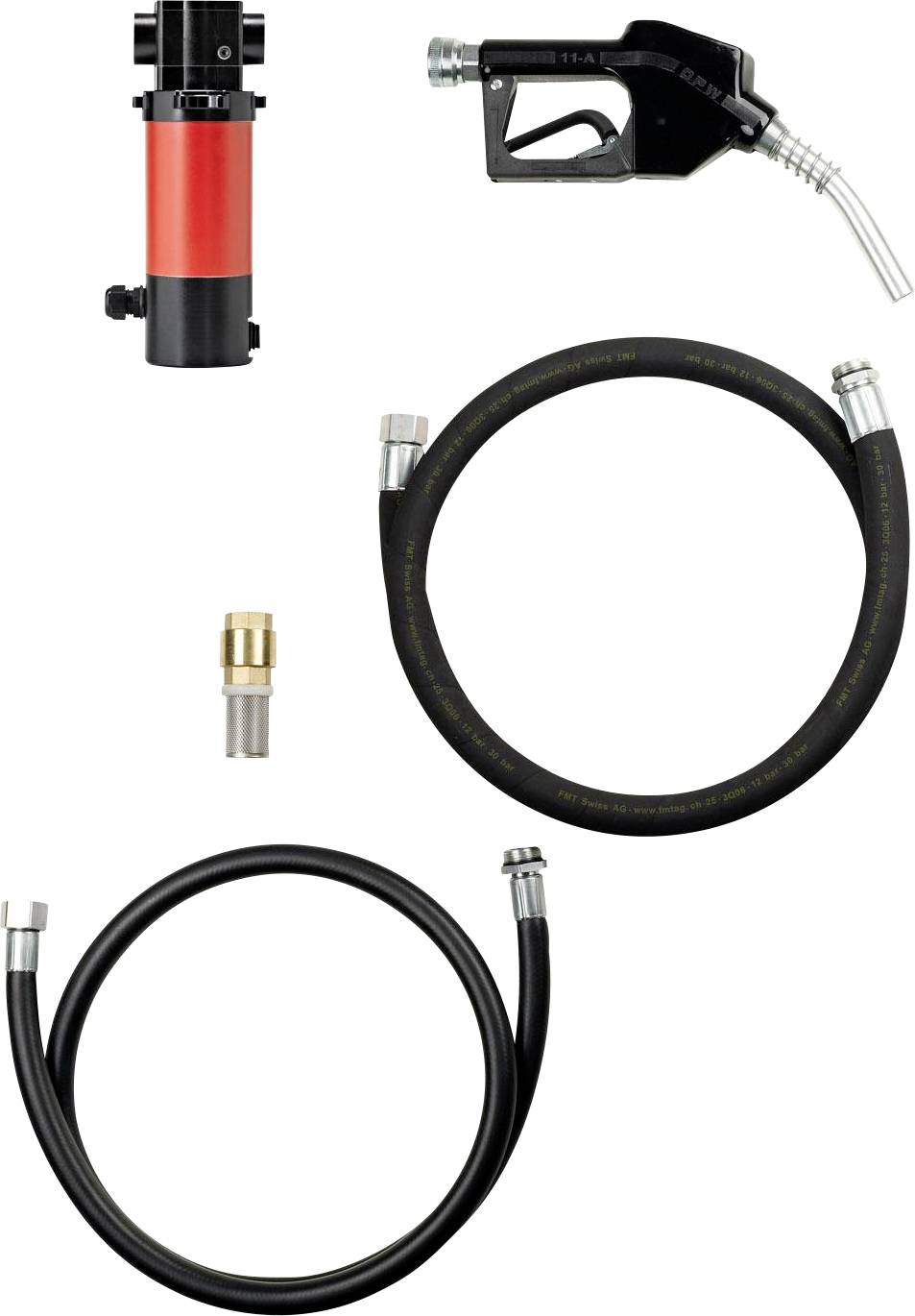

Description
· On and off switch
· Fuse
· Hover protection according to WHG (Water Budget Act), permanently effective
· Automatic tap valve with type approval and swivel joint, ZVABD (23 168)
· vane pump with integrated bypass (23 404)
· Drop hose, 4 m / 13.1 ft, DN 19, G 1" a, G 1" i (23 155 957)
· Suction hose, 1.6 m / 5.2 ft, DN 25, G 1" a, G 1" i (23 156)
· Foot valve with suction cup (19 890)
· Installation of throughfeed counter NUMERIxx³, three-digit, possible (23 192)
Special features:
· first-class electrical machinery and pump construction
· Continuous operation - 3 hours - with the valve open
· Sealed shaft ring seal set
· Encapsulation of the electric motor, this largely prevents the formation of condensation water that causes short-circuit in the event of strong temperature fluctuations
· Pump housing can be freely positioned in all 90° positions
· Switch housing can be freely positioned in all 90° positions
· Switch housing in impact-resistant die-cast zinc coated with cataphoresis
· Pump housing made of seawater-resistant aluminum die-cast, coated with cataphoresis
· Motor housing completely galvanized, coated outdoors
· tight tolerances help to maintain high suction and pressure performance Best efficiency
· The material pair of blades - stator guarantees the dimensional stability of the blades Up to 200 °C / 392 °F.
· Low weight and extremely long life due to the choice of materials
