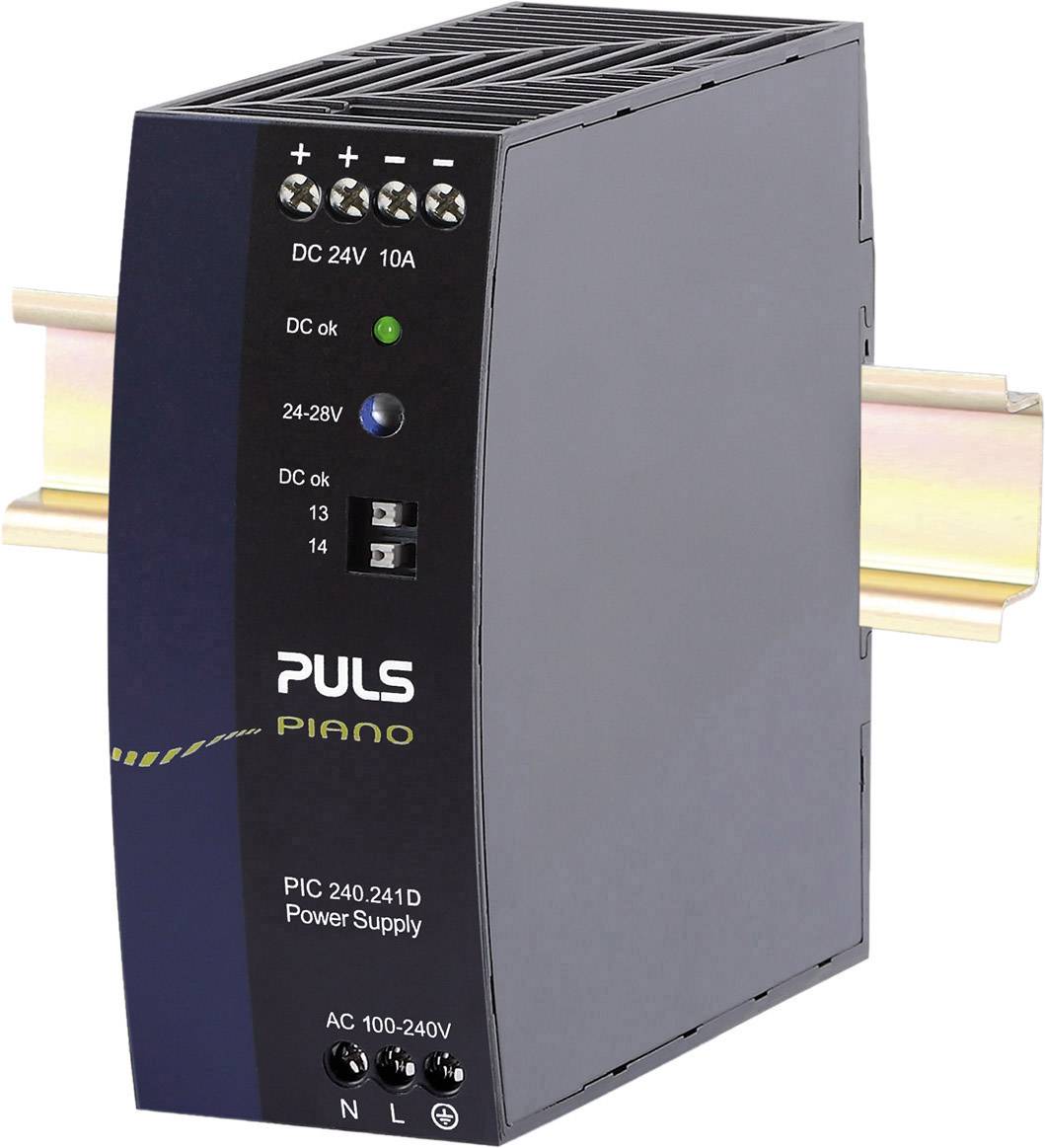

Name: PULS PIC240.241D Rail mounted PSU (DIN) 24 V 10 A 240 W No. of outputs:1 x Content 1 pc(s)
Brand: PULS
SKU: 1499788
Availability: InStock

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Fri 6 Nov

7 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 164.99 / piece)

€ 164.99

incl. VAT

Only 7 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Nominal input voltage: 115 V/AC
230 V/AC

Type: Power Supply

Product type: Rail mounted PSU (DIN)

Min. input voltage: 100 V AC

Inputs: 1

Input voltage: 115 V/AC
230 V AC

Input voltage (max.): 240 V AC

Max. output current: 10 A

Output current (max.) - rounded: 10 A

: 240 W

Output type (power supply units): Adjustable

Phases: 1

Output voltage (nominal): 24 V

No. of outputs: 1 x

Connection: Screw terminal

Dim: (L x W x H) 124 x 49 x 124 mm

Weight: 540 g

Output voltage (max.): 28 V DC

Output voltage (min.): 24 V DC

Operating temperature (max.): 55 °C

Operating temperature (min.): -25 °C

Manufacturer part #: PIC240.241D

Content: 1 pc(s)

PSU features: Adjustable voltage output

Width: 49 mm

Height: 124 mm

Length: 124 mm

Max. temperature: +55 °C

Min. temperature: -10 °C

Type: Piano

Efficiency: 95.2 %

Depth: 124 mm

Connections: Screw terminal

Output current (details): 10 A

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1499788 PULS PIC240.241D Rail mounted PSU (DIN) 24 V 10 A 240 W No. of outputs:1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1499788 PULS PIC240.241D Rail mounted PSU (DIN) 24 V 10 A 240 W No. of outputs:1 x Content 1 pc(s)

Description

The DIN rail power supplies of the series PIANO are characterized by an extraordinary compactness and by focusing on the essential properties, which are required for today's industrial applications. In addition, the excellent price/performance ratio and also opens up many new possibilities, without having to compromise on quality and reliability. The sturdy die-cast housing is made of a high-quality, reinforced plastic, regarding the use at ambient temperature from -25°C up to 55 °C enables. Thanks to the input voltage range of 100 - 240 V/AC, it is possible to simplify the circuit design and significant advantages in terms of reliability, efficiency and cost. Through the built-in DC-OK signal, the power supply is suitable for many industrial applications such as process automation and can thus avoid downtime by a preventive monitoring length.

This text is machine translated.
