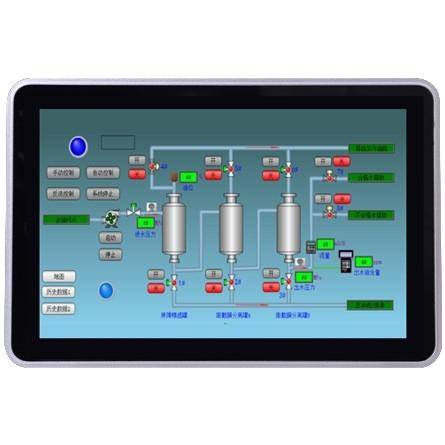

PUSR USR-SH800 USR-SH800 PLC PC console
Part number:
Item no:
Number
Total (€ 268.07 / piece)
€ 268.07
plus VAT.
Technical specifications
- Touch Screen: PCAP multi-touch 10-point
- Concurrent Displays: 2
- Other Features: WukongEdge, OpenPLC, IEC61131-3 programming, AI models
- Construction: IP65 front frame, metal enclosure
- Wireless Communication: Wi-Fi 802.11 b/g/n, GNSS (GPS, BDS)
- Microarchitecture: ARM Cortex-A55, 1 TOPS NPU, 3D GPU
- Cores / Threads: 4 x A55 / 4T
- Power Supply: Mating Connector: DC jack 5,5/2,1 mm
- OS support: Ubuntu 20.04
- Interfaces
100 Mb x2, USB 3.2 Gen 1x1, USB 3.2 Gen 1x1 OTG, RS-232 x2, RS-485, Line-out, HDMI
- Type
USR-SH800
- Manufacturer part #
USR-SH800
- Operating voltage
12 V DC
- Height
40.00 mm
- Length
258.00 mm
- Width
173.00 mm
- Dim
(L x W x H) 258.00 x 173.00 x 40.00 mm
- Content
1 pc(s)
- Display
Yes
- Fitting type (details)
Panel mount, VESA 75
- Screen size diagonal (inches)
10.1 inch
- Display resolution
1280 x 800 Pixel
- Hard drive
32 GB
- Cooling
Passive
- HDD 1 type
eMMC
- CPU
Rockchip RK3568
- CPU speed
2 GHz
- Brightness
280 cd/m²
4 GB
- RAM type
DDR4 RAM
- Max. temperature
50 °C
- Min. temperature
0 °C
- Hor. viewing angle
178°
- Vertical viewing angle
178°
- Product type
PLC PC console
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3639346 PUSR USR-SH800 USR-SH800 PLC PC console
Description
USR-SH800 ;Panel PC 10,1" 800x1280 CTP Rockchip RK3568 4GB RAM 32GB eMMC 0...+50°C
