Name: Radxa RS117-D2 Rock 3 A 2 GB 4 x 2.0 GHz
Brand: Radxa
SKU: 2490825
Availability: SoldOut

A green developer board with multiple ports and chips, similar to a Raspberry Pi, for computer projects and programming.

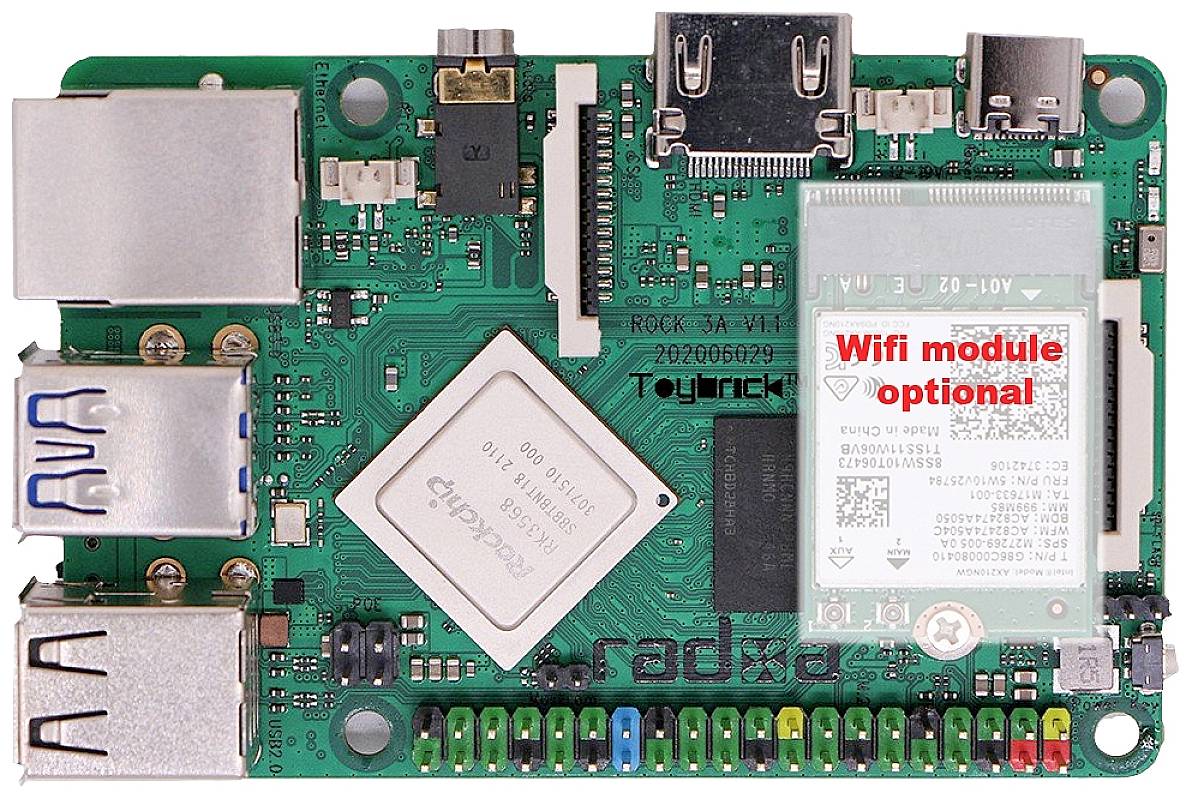

Microcomputer circuit board with USB ports, HDMI, processor, and optional Wi-Fi module.

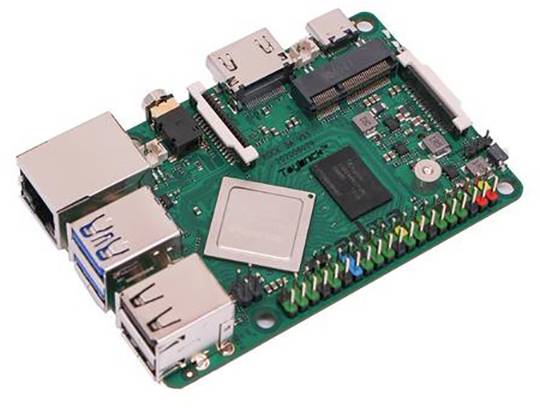

A green single-board computer with multiple USB ports and an HDMI port, suitable for technical projects.

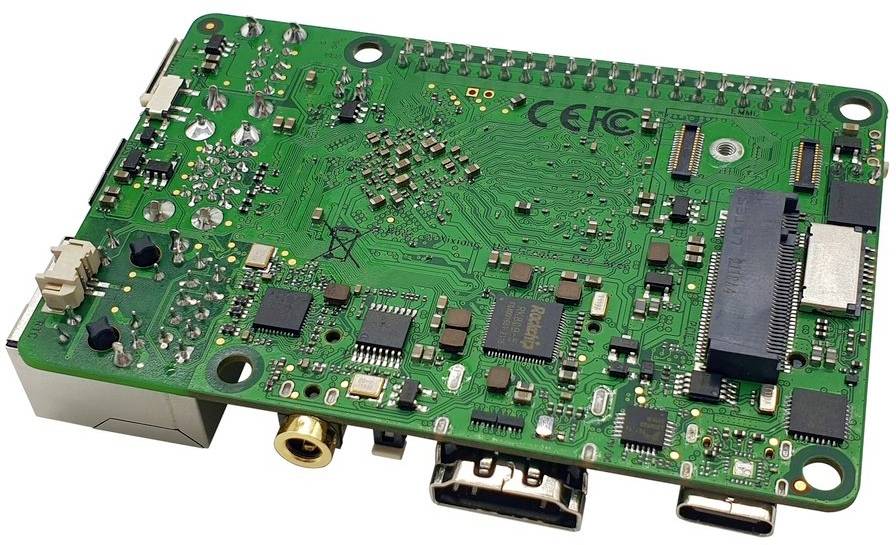

Green circuit board with various electronic components, including USB ports and HDMI interfaces. Markings for 'CE' and 'FC'.

Figure of a single-board computer with labels: Main components are Power Button, HDMI, USB ports, and SoC.

1/5

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 75.99 / piece)

€ 96.99

-22 %

€ 75.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Radxa ROCK3 A (2 GB)

Based on the Rockchip RK3568
4x Cortex A55 cores with 2 GHz clock frequency
RAM: 2 GB
Mali G52 graphics processor

Technical specifications

SoC: RK3568
CPU: Quad-core Cortex-A55, frequency 2Ghz
GPU: Mali G52
NPU: 0.8TOPS NPU
Memory: 2 GB LPDDR4 3200MT/s, up to 1560MHz
Storage: eMMC, μSD card (μSD slot supports up to 128 GB μSD card), M.2 SSD (M.2 connector supports up to 8TB M2 NVME SSD)
Display: HDMI 2.0 up to 4k*2k@60, MIPI DSI 2 lanes via FPC connector, Any two of HDMI, MIPI DSI can work at the same time, support mirror mode or extend mode.
Audio: 3.5mm jack with mic, HD codec that supports up to 24-bit/96KHz audio.
Camera: MIPI CSI 2 lanes via FPC connector, support up to 800 MP camera.
Wireless: None. Optional ROCK Pi Wireless Module
USB: 1x USB 3.0 OTG, hardware switch for host/device switch, front one, 1x USB 3.0 HOST, 2x USB 2.0 HOST
Ethernet: GbE LAN with Power over Ethernet (PoE) support, additional HAT is required for powering from PoE
Other ports: 40-pin expansion header with 5x UART, 1x SPI bus, 2x I2C bus, 6x PWM, 1x ADC, 1x CAN, 6x GPIO, 2x 5V DC power in, 1x 3.3V DC power in
Others: RTC, RTC battery connector for time backup(optional)
Power: USB PD, support USB Type C PD 2.0, 9V/2A, 12V/2A, 15V/2A, 20V/2A., Qualcomm® Quick ChargeTM: Supports QC 3.0/2.0 adapter, 9V/2A, 12V/1.5A

Product type: SBC

Type: Rock 3 A

SoC: Rockchip RK3568

Processor: Quad-Core Cortex-A55

Processor cores (No.): 4 x

: 2 GB

Clock speed: 2.0 GHz

Operating system (Version): w/o OS

Internal ports: CSI (camera)
DSI (display)
GPIO (40-pin)

External ports: USB 2.0
USB 3.0
HDMI™
3.5 mm jack

Power supply (LOV): via USB

Output voltage: 9 V DC

Output current: 2 A

Length: 85 mm

Width: 56 mm

Documents & Downloads

Datasheet

Datasheet 2490825 Radxa RS117-D2 Rock 3 A 2 GB 4 x 2.0 GHz

User & Safety Instructions

User & Safety Instructions 2490825 Radxa RS117-D2 Rock 3 A 2 GB 4 x 2.0 GHz

Description

ROCK 3A is an improved version of ROCK Pi 4 with some performance improvements and additional new interfaces.

The Rock 3A is based on the RK3568 chip. This allows more input and output possibilities. In addition to an M.2 Key M port for connecting an NVMe SSD with two PCIe 3.0 lanes, an M.2 Key E port connected via a single PCIe 2.0 lane is also available. This can also be addressed via UART, but also supports WiFi 6 cards for a particularly fast, wireless connection to a network.

The built-in RK3568 has four Cortex A55 cores, with clock speeds of up to two gigahertz. Plus a Mali G52 graphics solution. In addition to the NVMe SSD, an eMMC module or a classic microSD card can be used to store the operating system, applications and data. A Gigabit Ethernet port with PoE support is available for network connection.

Image signals can be transmitted via the HDMI 2.0 port, plus a MIPI DSI connector. A 3.5 mm jack plug allows the easy connection of headsets or loudspeakers. External accessories and also external memory can be connected via two USB 2.0 and USB 3.0 ports each. A battery-operated real-time clock is available on the 85 x 54 mm large developer board. The 40-pin GPIO pin header is color-coded and is mostly compatible with the Raspberry Pi and the Rock Pi 4.

Debian 10 is also supported on the software page.

Specification:
- SoC - RK3568
- CPU – Quad A55 to 2GHz
- GPU - MALI G52 GPU, 0.8T NPU
- Operating system: Android 11.0, Debian 10 / Ubuntu / Slackware
- Plug-in eMMC module, 2/4/8GB LPDDR4 3200MT/s, DRAM controller frequency up to 1560MHz
- QC/PD performance support with a new generation QC/PD protocol IC
- two USB2.0 two USB3.0 (1x OTG+1x HOST), the two USB3.0 can be configured in SATA mode with a SATA breakout cable
- GbE with PoE support
- M.2 M-Key for NVMe with PCIe 3.0 x2 lanes
- M.2 E-Key for connectivity with PCIe 2.0 x1/SDIO/UART, supports Wi-Fi 6 cards
- 1x MIPI DSI, 1x MIPI CSI, compatible with ROCK Pi 4
- 40P GPIO header, mostly compatible with ROCK Pi 4

This text is machine translated.

Features

RK3568 based, Quad A55 up to 2GHz, Mali G52 GPU, 0.8T NPUPlug-in eMMC module2/4/8GB LPDDR4 3200MT/SDRAM controller frequency up to 1560MHzQC/PD power support, with a new generation QC/PD protocol IC2x USB2 similar to ROCK Pi 42x USB3 (1x OTG+1x HOST)Both USB3 can be configured in SATA mode with a SATA breakout cableGbE with PoE supportM.2 M key for NVMe SSD with PCIe 3.0 x2 lanesM.2 E-Key for connectivity with PCIe 2.0 x1/SDIO/UART, supports WiFi 6 cards1x MIPI DSI, 1x MIPI CSI, compatible with ROCK Pi 440Pin GPIO is mostly compatible with ROCK Pi 4

Hints

The software required for the ROCK3 A can be downloaded from Radxa Wiki

Description

Features

RK3568 based, Quad A55 up to 2GHz, Mali G52 GPU, 0.8T NPUPlug-in eMMC module2/4/8GB LPDDR4 3200MT/SDRAM controller frequency up to 1560MHzQC/PD power support, with a new generation QC/PD protocol IC2x USB2 similar to ROCK Pi 42x USB3 (1x OTG+1x HOST)Both USB3 can be configured in SATA mode with a SATA breakout cableGbE with PoE supportM.2 M key for NVMe SSD with PCIe 3.0 x2 lanesM.2 E-Key for connectivity with PCIe 2.0 x1/SDIO/UART, supports WiFi 6 cards1x MIPI DSI, 1x MIPI CSI, compatible with ROCK Pi 440Pin GPIO is mostly compatible with ROCK Pi 4
