Buy RAFI 3.14.100.001/0000 3.14100.001 Pushbutton 42 V DC/AC 0.1 A 1 x Off/(On) momentary 1 pc(s) Single | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

A white rocker switch button next to a matching switch housing. The housing shows the electrical connection pin.

A white rocker switch button next to a matching switch housing. The housing shows the electrical connection pin.

RAFI 3.14.100.001/0000 3.14100.001 Pushbutton 42 V DC/AC 0.1 A 1 x Off/(On) momentary 1 pc(s) Single-1

1/2

Image similar

RAFI

Packaging type

Single

Product type

Pushbutton

Lighting type

None

Switch position

1 x Off/(On)

Contact type

1 maker

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

101 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 2.51 / piece)

€ 3.79

-34 %

€ 2.51

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Button RF 15 non-illuminated

Our service for you

Technical specifications

Illuminated with 1 or 2 LED (spot or full lighting)
Confirmation travel 0.5 (+0.2) mm
Switch travel 0.5 (+0.2) mm
Stop strength = 100 N
Solder temperature 250 °C
Solder duration max. 2.5 sec.
Installation height 9.7 mm.

Packaging type: Single

Product type: Pushbutton

Switch/button features: Planar

Casing/button colour: White
Transparent

Functions: momentary

Type: Snap-action contact

Lighting type: None

Switch position: 1 x Off/(On)

Contact type: 1 maker

Contact material: Gold (Au)

Connection: Solder pins

Resistance: ≤ 100 mΩ

Switching voltage: 42 V DC/AC

Max. switching capacity: 2 W

Switching current (max.): 0.1 A

Bounce duration: ≤ 5 ms

Min. temperature: -25 °C

Max. temperature: +70 °C

Height: 9.7 mm

Durability: 1 million cycles

Actuating force: 2.9 N

Content: 1 pc(s)

RoHS-compliant: Yes

Front panel cut-out: 15 x 15 mm

Board thickness (max.): 9 mm

Switching current (inductive): 0.1 A

Type: 3.14100.001

Switching capacity: (resistive load) 2 W

Type: 3, 14100,001

Actuating force: (±0.6) 2.9 N

Connection: tin-plated

Temperature range: -25 - +70 °C

Documents & Downloads

Datasheet

Datasheet 704393 RAFI 3.14.100.001/0000 3.14100.001 Pushbutton 42 V DC/AC 0.1 A 1 x Off/(On) momentary 1 pc(s) Single

Description

A button cap may be fitted to the non-illuminated button if alternative labelling is required or a height of 12.5 mm has to be reached. The labelling on the button cap is visible through a window in the deco film. The button cap may be exchanged to modify the labelling.

Hints

Re switch position: content in parentheses describes the n/o and n/c contact constellation

Description

A button cap may be fitted to the non-illuminated button if alternative labelling is required or a height of 12.5 mm has to be reached. The labelling on the button cap is visible through a window in the deco film. The button cap may be exchanged to modify the labelling.

Hints

Re switch position: content in parentheses describes the n/o and n/c contact constellation

Frequently Bought Together

(^*All information is plus legal VAT)

This article

-34%

RAFI 3.14.100.001/0000 3.14100.001 Pushbutton 42 V DC/AC 0.1 A 1 x Off/(On) momentary 1 pc(s) Single

RAFI 3.14.100.001/0000 3.14100.001 Pushbutton 42 V DC/AC 0.1 A 1 x Off/(On) momentary 1 pc(s) Single

Conrad Electronic

€ 3.79

€ 2.51^*

TRU COMPONENTS 701240 Switching sequence converter 35 V 1.5 A 1 x Off/On latch 1 pc(s)

TRU COMPONENTS 701240 Switching sequence converter 35 V 1.5 A 1 x Off/On latch 1 pc(s)

Conrad Electronic

€ 10.07^*

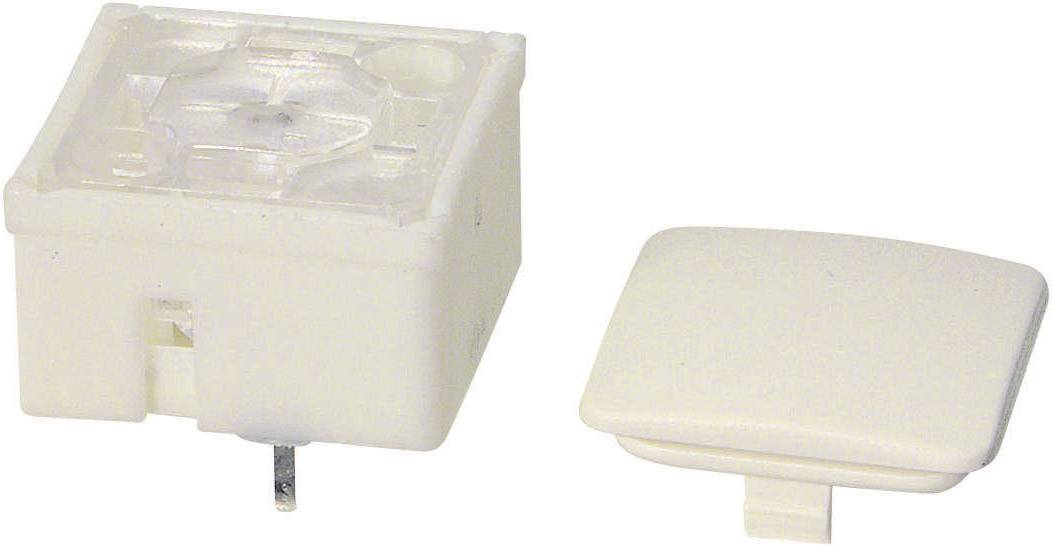

RAFI 5.46.654.059/0227 5.46654.059/0227 Switch cap 1 pc(s)
