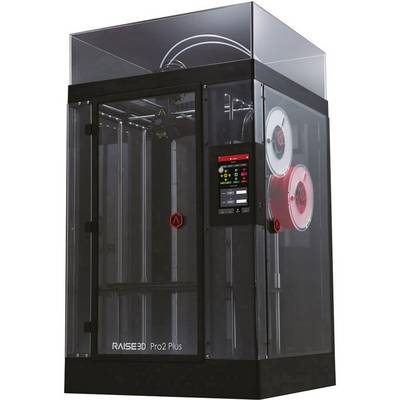

RAISE3D Raise3D Pro2 Plus 3D printer
EAN:
Part number:
Item no:
Datasheet (PDF)
Total (€ 3,057.98 / piece)
€ 3,057.98
plus VAT.
Highlights & Details
Raise3D Pro2 PLUS 3D printer
- Air filter (environmentally friendly and health-protecting)
- Electronically driven lifting system
- Improved extruder head with increased torque output and double gear drive
Technical specifications
- Product type
3D printer
- Type
Pre-assembled printer
- Printing technology
Fused deposition modeling (FDM)
- Supported printing supplies
PLA
Polycarbonat (PC)
TPU 95A
ABS
Flex
HIPS
PETG
- Max. printing width (X)
305 mm
- Max. printing height (Y)
305 mm
- Printing depth (Z) max.
605 mm
- Printing pad features
Heatable
- Printing height (Z)
400 mm -
- Extruder type
Dual
- Suitable for filament Ø
1.75 mm
- Range of uses (3D printers)
Industry & Trade
- Nozzle Ø
0.4 mm
- Printed layer thickness (min.)
0.01 mm
- Printed layer thickness (max.)
0.25 mm
- SD card slot
Yes
- Software
IdeaMaker
- Width
616 mm
- Height
590 mm
- Depth
1107 mm
- Dim
(W x H x D) 616 x 590 x 1107 mm
Documents & Downloads
Datasheet
Datasheet 2180218 RAISE3D Raise3D Pro2 Plus 3D printer
User & Safety Instructions
User & Safety Instructions 2180218 RAISE3D Raise3D Pro2 Plus 3D printer
Description
Improved dual extruder
Multi-colored objects are no problem thanks to the dual extruder. If PVA or HIPS is used as a second filament, complex components can be realized with overhangs. After the finished 3D printing, the support filament can be easily dissolved and is available for a great result.
Resume function
This allows active print jobs to continue even after a power failure. A built-in 1000mA battery enables the storage of the print progress, whereby the printing process can be resumed easily.
3D print bed with better adhesion on the building platform
The new silicone heated bed based on a magnetic aluminum bed increases the adhesion of the components on the platform. It is equipped with an improved 4 + 9 point lock system.
This text is machine translated.
Multi-colored objects are no problem thanks to the dual extruder. If PVA or HIPS is used as a second filament, complex components can be realized with overhangs. After the finished 3D printing, the support filament can be easily dissolved and is available for a great result.
Resume function
This allows active print jobs to continue even after a power failure. A built-in 1000mA battery enables the storage of the print progress, whereby the printing process can be resumed easily.
3D print bed with better adhesion on the building platform
The new silicone heated bed based on a magnetic aluminum bed increases the adhesion of the components on the platform. It is equipped with an improved 4 + 9 point lock system.
This text is machine translated.
Scope of delivery
- 1x RAISE3D Pro2 PLUS 3D printer with dual extruder2x PLA filament rolls (approx. 1.00 kg each)2x metal rods for cleaning the hot ends1x tweezers1x set of hex keys1x SpatulaMultiple fuses1x power cordUser manual.
