Name: Rautronic 94460 Ribbon cable Contact spacing: 1.27 mm 10 x 0.14 mm² Blue Sold per metre
Brand: Rautronic
SKU: 3448683
Availability: InStock

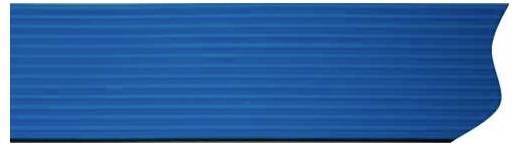

A blue yoga mat with ribbed texture and a curved edge on the right side.

A diagram of a mechanical part with repeating circular elements. Dimensions are marked: width is 12.43, height is 1.0, spacing is 1.27.

1/2

Image similar

Product type

Ribbon cable

1.27 mm

No. of leads

10 x

Cross section (each core)

0.14 mm²

Content

Sold per metre

Datasheet (PDF)

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

58 meter

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

meter

Total (€ 4.79 / piece)

€ 4.79

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: Ribbon cable

CS: 1.27 mm

No. of leads: 10 x

Cross section (each core): 0.14 mm²

Cross section: 10 x 0.14 mm²

Width: 12.43 mm

Height: 1 mm

Factory colour: Blue

Content: Sold per metre

Nominal voltage: 300 V

: 26

Shielded: No

Halogen-free: No

Insulation material: PVC

Min. temperature range (fixed installation): -30 °C

Max. temperature range (fixed installation): 105 °C

Min. temperature range (flexible installation): -20 °C

Max. temperature range (flexible installation): 105 °C

Manufacturer part #: 94460

Type: FBL 10P AWG26 BLAU

Material (details): Copper tin-plated

Test voltage: 2 kV

Weight: 0.022 kg

Documents & Downloads

Datasheet

Datasheet 3448683 Rautronic 94460 Ribbon cable Contact spacing: 1.27 mm 10 x 0.14 mm² Blue Sold per metre

User & Safety Instructions

User & Safety Instructions 3448683 Rautronic 94460 Ribbon cable Contact spacing: 1.27 mm 10 x 0.14 mm² Blue Sold per metre

Description

Flat ribbon cable, 10-pin, RM 1.27 mm, 0.14 mm², AWG 26, PVC, BLUE, FBL 10P AWG26

This text is machine translated.

Description

Flat ribbon cable, 10-pin, RM 1.27 mm, 0.14 mm², AWG 26, PVC, BLUE, FBL 10P AWG26

This text is machine translated.
