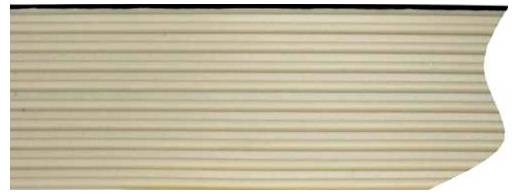

Rautronic FB0626250G Ribbon cable Contact spacing: 2.5 mm 6 x 0.14 mm² Grey Sold per metre

A section of tan corrugated metal with parallel lines, possibly part of a roof or siding material.
A wavy line pattern with floral motifs. Vertical measurement is 1.35, horizontal spacing is 2.5. Length B equals 13.85.
1/2
Image similar
Product type
Ribbon cable
CS
2.5 mm
No. of leads
6 x
Cross section (each core)
0.14 mm²
Content
Sold per metre
Datasheet (PDF)
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
66 meter
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 3.49 / piece)
€ 3.49
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Product type

Ribbon cable

CS

2.5 mm

No. of leads

6 x

Cross section (each core)

0.14 mm²

Cross section

6 x 0.14 mm²

Width

13.85 mm

Height

1.35 mm

Factory colour

Grey

Content

Sold per metre

Nominal voltage

300 V

26

Shielded

No

Halogen-free

No

Insulation material

PVC

Min. temperature range (fixed installation)

-30 °C

Max. temperature range (fixed installation)

105 °C

Min. temperature range (flexible installation)

-10 °C

Max. temperature range (flexible installation)

105 °C

Manufacturer part #

FB0626250G

Type

FBL 06P AWG26 GRAU

Material (details)

Copper tin-plated

Test voltage

2 kV

Weight

0.022 kg

Documents & Downloads

Datasheet

Datasheet 3448713 Rautronic FB0626250G Ribbon cable Contact spacing: 2.5 mm 6 x 0.14 mm² Grey Sold per metre

User & Safety Instructions

User & Safety Instructions 3448713 Rautronic FB0626250G Ribbon cable Contact spacing: 2.5 mm 6 x 0.14 mm² Grey Sold per metre

Description

Flat ribbon cable, 6-pin, RM 2.5 mm, 0.14 mm², AWG 26, PVC, GRAY FBL 06P AWG26 G
