Rautronic FB1428127B Ribbon cable Contact spacing: 1.27 mm 14 x 0.09 mm² Sold per metre

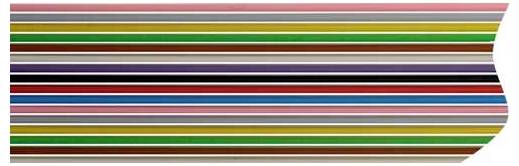

A row of colored pencils providing a rainbow of hues, ranging from shades of pink, red, green, blue, to black, displayed horizontally.
Diagram of a wavy line with floral patterns inside. It shows a width labeled 'B' of 17.51 and various labeled sections measuring 1.0 and 1.27.
1/2
Image similar
Product type
Ribbon cable
CS
1.27 mm
No. of leads
14 x
Cross section (each core)
0.09 mm²
Content
Sold per metre
Datasheet (PDF)
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
85 meter
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 5.99 / piece)
€ 5.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Product type

Ribbon cable

CS

1.27 mm

No. of leads

14 x

Cross section (each core)

0.09 mm²

Cross section

14 x 0.09 mm²

Width

17.51 mm

Height

1 mm

Content

Sold per metre

Nominal voltage

300 V

28

Shielded

No

Halogen-free

No

Insulation material

PVC

Min. temperature range (fixed installation)

-30 °C

Max. temperature range (fixed installation)

105 °C

Min. temperature range (flexible installation)

-20 °C

Max. temperature range (flexible installation)

105 °C

Manufacturer part #

FB1428127B

Type

FBL 14P AWG28 DIN47100

Material (details)

Copper tin-plated

Test voltage

2 kV

Weight

0.033 kg

Documents & Downloads

Datasheet

Datasheet 3448707 Rautronic FB1428127B Ribbon cable Contact spacing: 1.27 mm 14 x 0.09 mm² Sold per metre

User & Safety Instructions

User & Safety Instructions 3448707 Rautronic FB1428127B Ribbon cable Contact spacing: 1.27 mm 14 x 0.09 mm² Sold per metre

Description

Flat ribbon cable, 14-pin, RM 1.27 mm, 0.09 mm², AWG 28, PVC, FBL 14P AWG28 DIN47
