Name: Rautronic FB2026127B Ribbon cable Contact spacing: 1.27 mm 20 x 0.14 mm² Sold per metre
Brand: Rautronic
SKU: 3448698
Availability: InStock

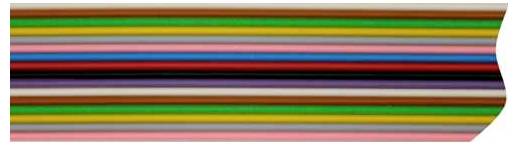

A stack of colorful pencils arranged horizontally, showcasing various vibrant colors including red, blue, green, pink, and brown.

Illustration showing a wavy line with flower patterns. Dimensions given: height 1.2, spacing 1.27, and total length B equals 25.33.

1/2

Image similar

Product type

Ribbon cable

1.27 mm

No. of leads

20 x

Cross section (each core)

0.14 mm²

Content

Sold per metre

Datasheet (PDF)

Fast track dispatch on Wed 21 Oct

78 meter

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

meter

Total (€ 10.99 / piece)

€ 10.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: Ribbon cable

CS: 1.27 mm

No. of leads: 20 x

Cross section (each core): 0.14 mm²

Cross section: 20 x 0.14 mm²

Width: 25.33 mm

Height: 1.2 mm

Content: Sold per metre

Nominal voltage: 300 V

: 26

Shielded: No

Halogen-free: No

Insulation material: PVC

Min. temperature range (fixed installation): -30 °C

Max. temperature range (fixed installation): 105 °C

Min. temperature range (flexible installation): -20 °C

Max. temperature range (flexible installation): 105 °C

Manufacturer part #: FB2026127B

Type: FBL 20P AWG26 DIN47100

Material (details): Copper tin-plated

Test voltage: 2 kV

Weight: 0.006 kg

Documents & Downloads

Datasheet

Datasheet 3448698 Rautronic FB2026127B Ribbon cable Contact spacing: 1.27 mm 20 x 0.14 mm² Sold per metre

User & Safety Instructions

User & Safety Instructions 3448698 Rautronic FB2026127B Ribbon cable Contact spacing: 1.27 mm 20 x 0.14 mm² Sold per metre

Description

Flat ribbon cable, 20-pin, RM 1.27 mm, 0.14 mm², AWG 26, PVC, FBL 20P AWG26 DIN47

This text is machine translated.

Description

Flat ribbon cable, 20-pin, RM 1.27 mm, 0.14 mm², AWG 26, PVC, FBL 20P AWG26 DIN47

This text is machine translated.
