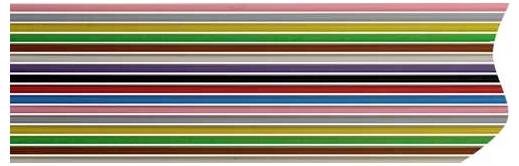

Rautronic FB3428127B Ribbon cable Contact spacing: 1.27 mm 34 x 0.09 mm² Sold per metre
Part number:
Item no:
Product type
Ribbon cable
CS
1.27 mm
No. of leads
34 x
Cross section (each core)
0.09 mm²
Content
Sold per metre
Datasheet (PDF)
Quantity (meter)
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
6% = € 0.58
€ 9.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
Technical specifications
- Product type
Ribbon cable
- CS
1.27 mm
- No. of leads
34 x
- Cross section (each core)
0.09 mm²
- Cross section
34 x 0.09 mm²
- Width
42.91 mm
- Height
1 mm
- Content
Sold per metre
- Nominal voltage
300 V
28
- Shielded
No
- Halogen-free
No
- Insulation material
PVC
- Min. temperature range (fixed installation)
-30 °C
- Max. temperature range (fixed installation)
105 °C
- Min. temperature range (flexible installation)
-20 °C
- Max. temperature range (flexible installation)
105 °C
- Manufacturer part #
FB3428127B
- Type
FBL 34P AWG28 DIN47100
- Material (details)
Copper tin-plated
- Test voltage
2 kV
- Weight
0.071 kg
Documents & Downloads
Datasheet
Datasheet 3448711 Rautronic FB3428127B Ribbon cable Contact spacing: 1.27 mm 34 x 0.09 mm² Sold per metre
User & Safety Instructions
User & Safety Instructions 3448711 Rautronic FB3428127B Ribbon cable Contact spacing: 1.27 mm 34 x 0.09 mm² Sold per metre
Description
Flat ribbon cable, 34-pin, RM 1.27 mm, 0.09 mm², AWG 28, PVC, FBL 34P AWG28 DIN47
