Name: Rautronic FB4026127B Ribbon cable Contact spacing: 1.27 mm 40 x 0.14 mm² Sold per metre
Brand: Rautronic
SKU: 3448699
Availability: InStock

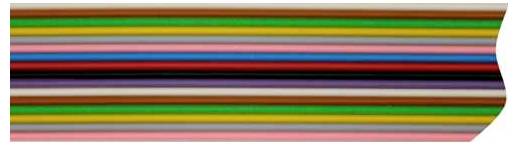

Colorful pencils aligned next to each other, showcasing a spectrum of vibrant colors including green, blue, pink, red, and yellow.

Illustration of a decorative ribbon with a wavy floral pattern. Width is labeled as 1.2, spacing between patterns as 1.27, and total length as 50.73.

1/2

Image similar

Product type

Ribbon cable

1.27 mm

No. of leads

40 x

Cross section (each core)

0.14 mm²

Content

Sold per metre

Datasheet (PDF)

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

50 meter

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

meter

Total (€ 11.99 / piece)

€ 11.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: Ribbon cable

CS: 1.27 mm

No. of leads: 40 x

Cross section (each core): 0.14 mm²

Cross section: 40 x 0.14 mm²

Width: 50.73 mm

Height: 1.2 mm

Content: Sold per metre

Nominal voltage: 300 V

: 26

Shielded: No

Halogen-free: No

Insulation material: PVC

Min. temperature range (fixed installation): -30 °C

Max. temperature range (fixed installation): 105 °C

Min. temperature range (flexible installation): -20 °C

Max. temperature range (flexible installation): 105 °C

Manufacturer part #: FB4026127B

Type: FBL 40P AWG26 DIN47100

Material (details): Copper tin-plated

Test voltage: 2 kV

Weight: 0.12 kg

Documents & Downloads

Datasheet

Datasheet 3448699 Rautronic FB4026127B Ribbon cable Contact spacing: 1.27 mm 40 x 0.14 mm² Sold per metre

User & Safety Instructions

User & Safety Instructions 3448699 Rautronic FB4026127B Ribbon cable Contact spacing: 1.27 mm 40 x 0.14 mm² Sold per metre

Description

Flat ribbon cable, 40-pin, RM 1.27 mm, 0.14 mm², AWG 26, PVC, FBL 40P AWG26 DIN47

This text is machine translated.

Description

Flat ribbon cable, 40-pin, RM 1.27 mm, 0.14 mm², AWG 26, PVC, FBL 40P AWG26 DIN47

This text is machine translated.
