Reflecta Tapa Projector ceiling mount Max. distance to floor/ceiling: 65 cm Distance to wall (max.): 56 cm White

Metal ceiling mount, height-adjustable, for projectors or audiovisual equipment, stands on four stable legs.
White, modern living room with an oval table, plush carpet, sofa and television mounted on the wall. The room appears bright and spacious.
Bright, well-designed living room with a modern sofa, large flat-screen television mounted on the wall, and minimalist decor.

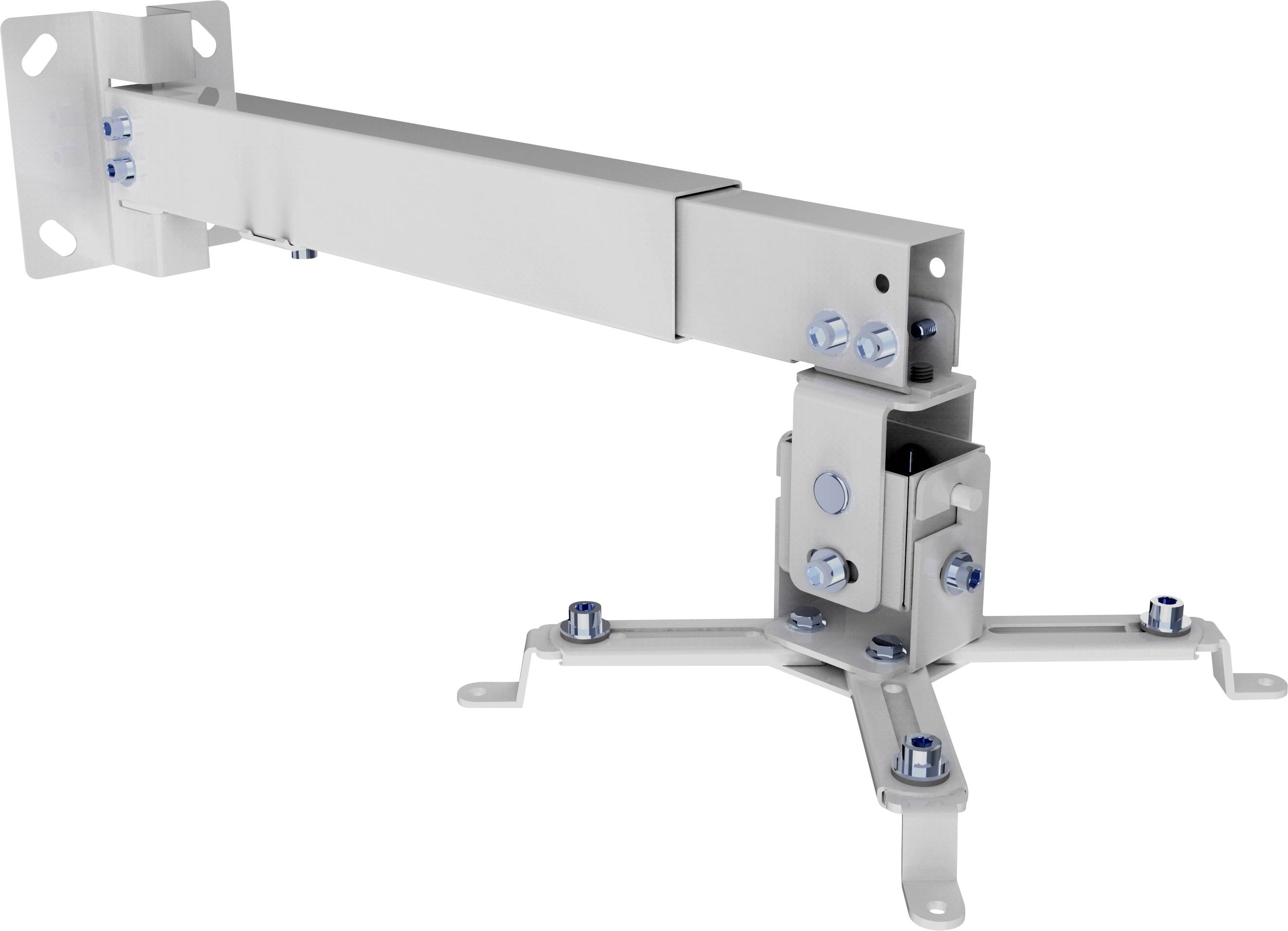

Adjustable metal TV wall mount, installed with multiple screws for stability and a flexible arm to allow various viewing angles.

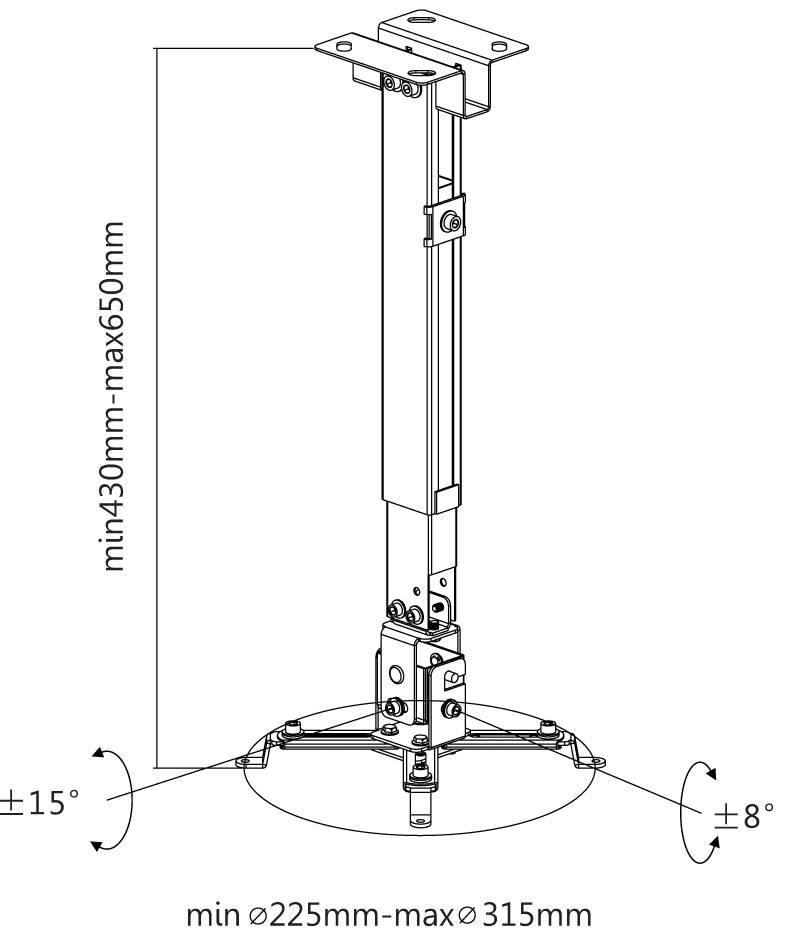

Projector mount with adjustable height from 430 mm to 650 mm. Tilt angle: ±15°, swivel range: ±8°. Base diameter: 225 mm to 315 mm.
Drawing of an adjustable projector mount with details: horizontally adjustable from 350 mm to 560 mm, vertically tiltable ±8°, base rotatable ±15°, base diameter 225 mm to 315 mm.
1/6
EAN:
Part number:
Item no:
Fast track dispatch on Mon 2 Nov
4 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 24.99 / piece)
€ 24.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 4 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

Reflecta Universal ceiling mount Tapa white for data projectors L = 430-650mm

  • Adjustable angle of inclination +/-15°
  • Adjustable length 43-65 cm (ceiling mounting) / 35-56 cm (wall mounting)
  • Cable management

Technical specifications

  • Also suitable for wall mounting
Product type

Projector ceiling mount

Rotatable

Yes

Tilt range (top)

15°

Tilt range (bottom)

15°

Max. distance to floor/ceiling

65 cm

Min. distance to floor/ceiling

43 cm

Distance to wall (min.)

35 cm

Distance to wall (max.)

56 cm

Max. load capacity

20 kg

Factory colour

White

Length

650 mm

Width

315 mm

Height

315 mm

Content

1 pc(s)

Dim

(L x W x H) 650 x 315 x 315 mm

UKCA

not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2436787 Reflecta Tapa Projector ceiling mount Max. distance to floor/ceiling: 65 cm Distance to wall (max.): 56 cm White

Description

Universal wall and ceiling bracket for projectors

For projectors weighing up to 20kg

The TAPA is a universal holder made of solid steel for most projectors up to 20kg. The adjustable angle can meet various wall mounting and ceiling installation requirements. The bracket provides flexible mounting of the projector, through the 4 arms, which are suitable for a variety of mounting holes. The TAPA holder enables a quick installation of the projector. The projector can be easily removed for maintenance without reorienting. The internal cable management keeps the cables organized.

PROPERTIES


• adjustable angle of inclination: For the optimum alignment of the beamer
• adjustable length: For different needs
• Cable management: Keeps the cables organized

This text is machine translated.

Features

  • Max. load: 20 kg
  • Arm length 225-315 mm
  • Swivel angle +/-8°
  • Material: Powder-coated steel
  • Dimensions 237 x 203 x 650 mm.

Scope of delivery

  • Mount
  • Fitting Material
  • User manual.
