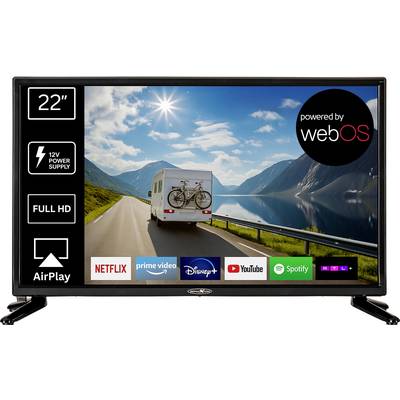

A 22-inch HD TV displays a scenic road with a camper van. Icons for streaming apps like Netflix, Prime Video, and Disney+ are shown.

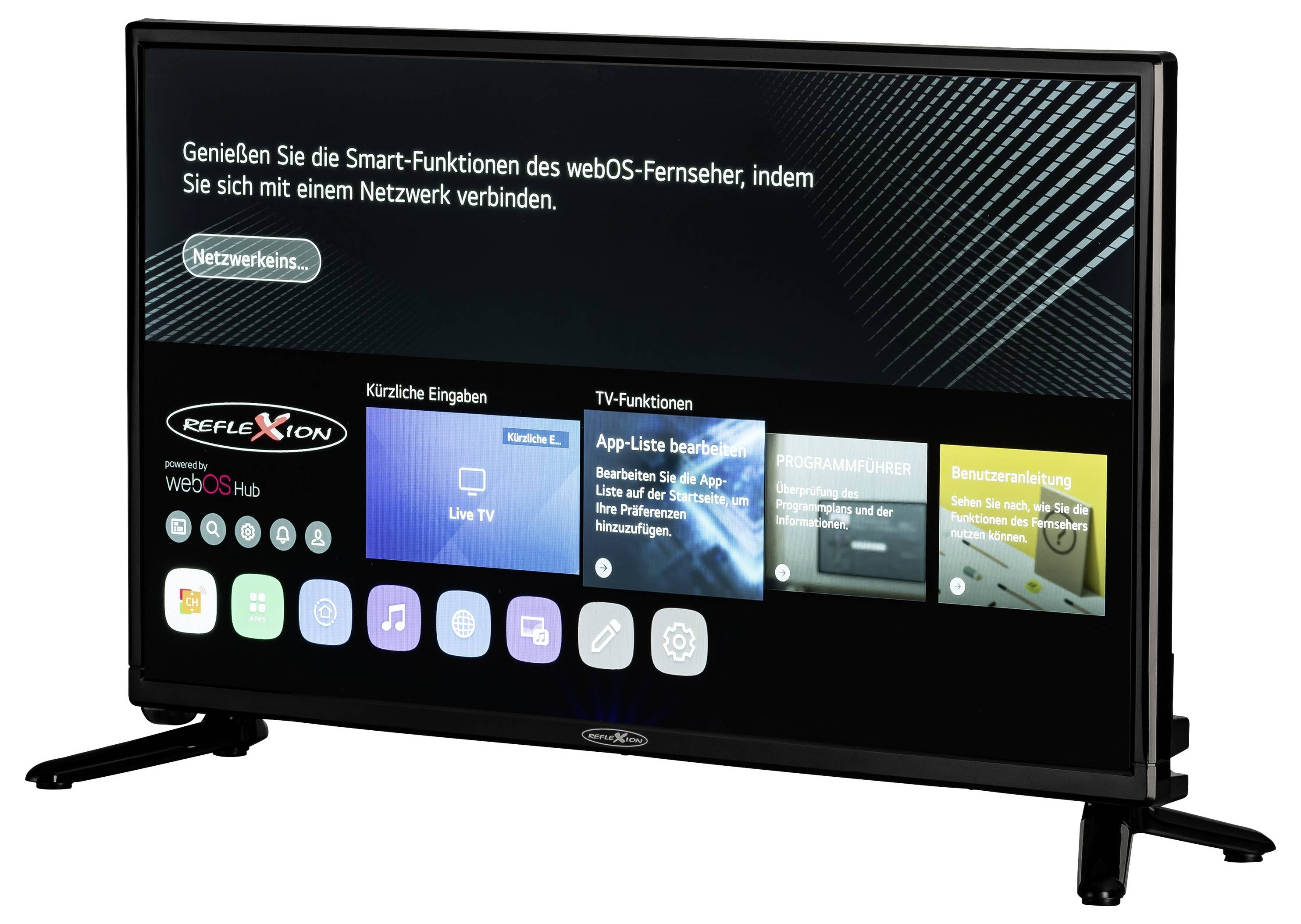

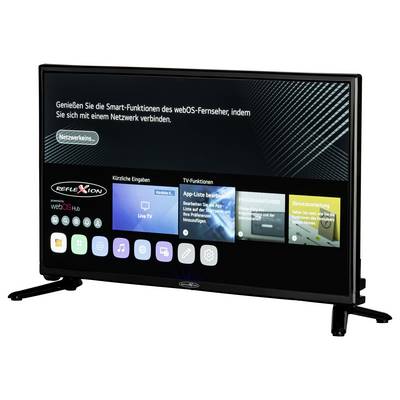

A television with an on-screen menu. At the top it reads: 'Enjoy the smart features of the webOS television by connecting to a network.'

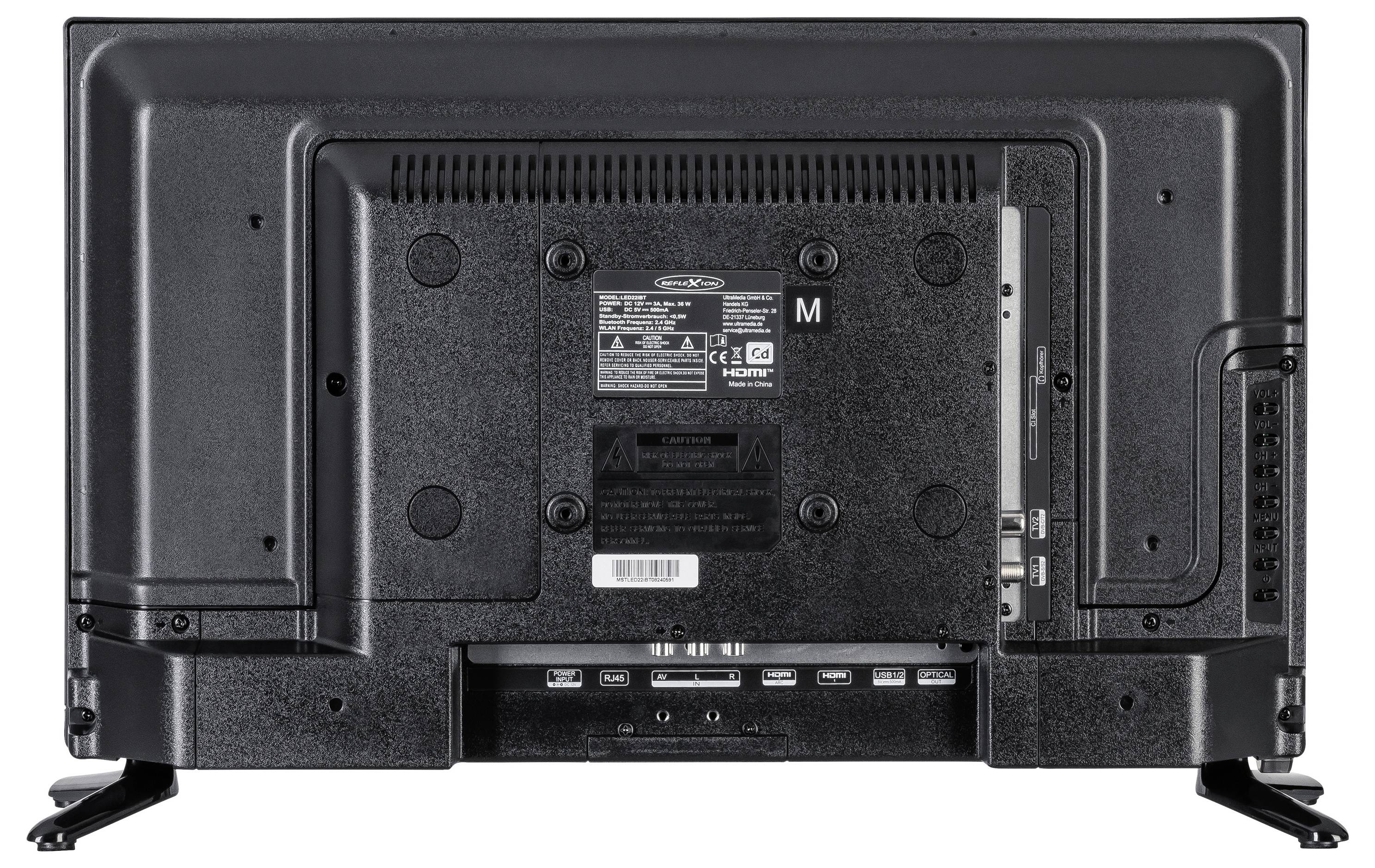

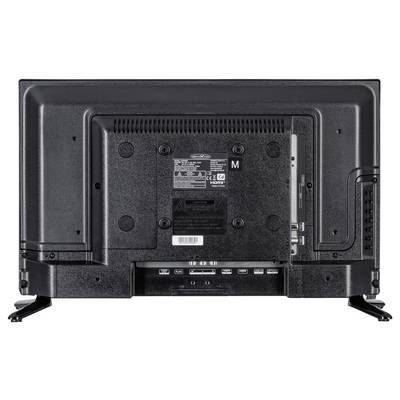

The image shows the back of a flat-screen TV, featuring various input and output ports, ventilation areas, and a manufacturer label.

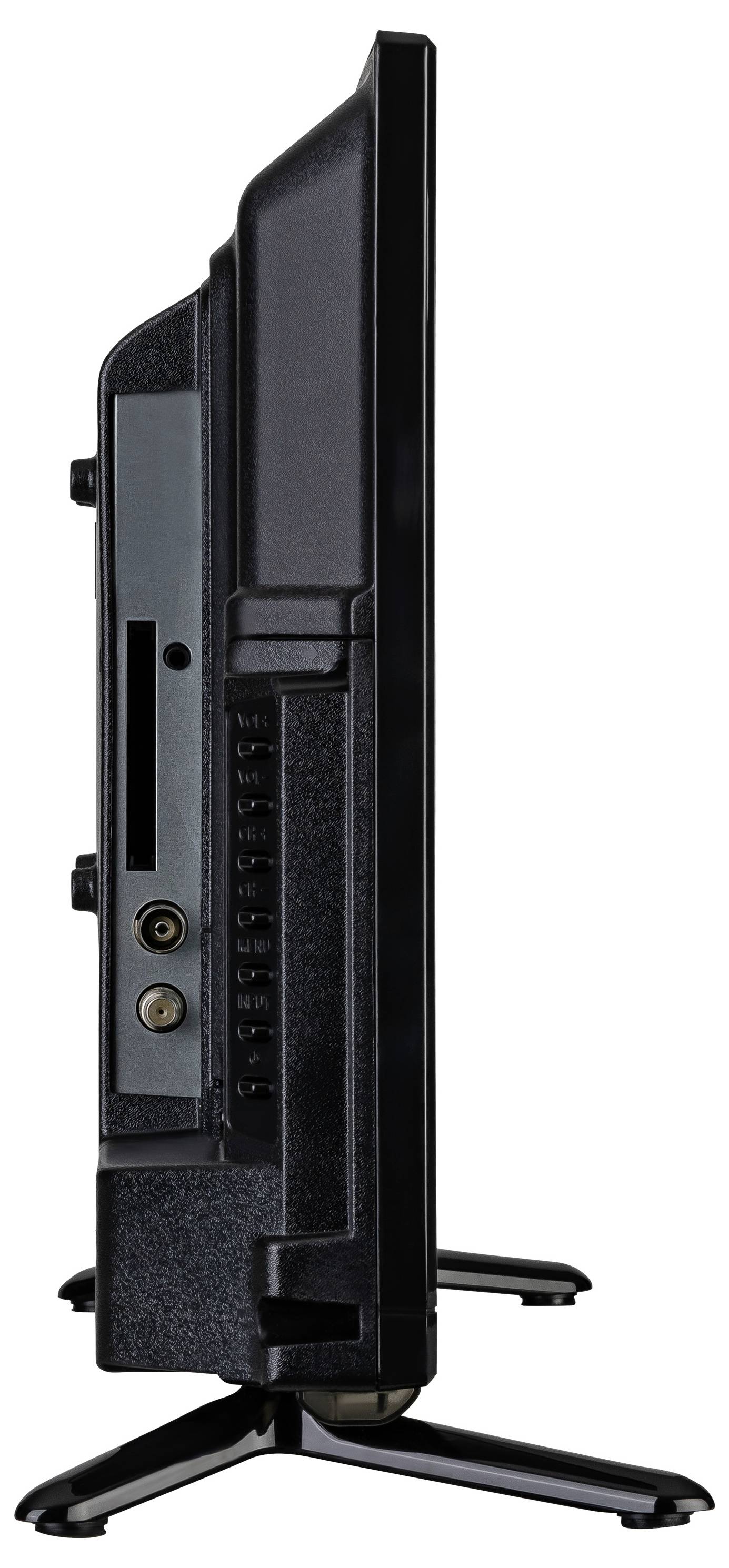

Side view of a flat-screen television, showcasing its slim design on a double stand.

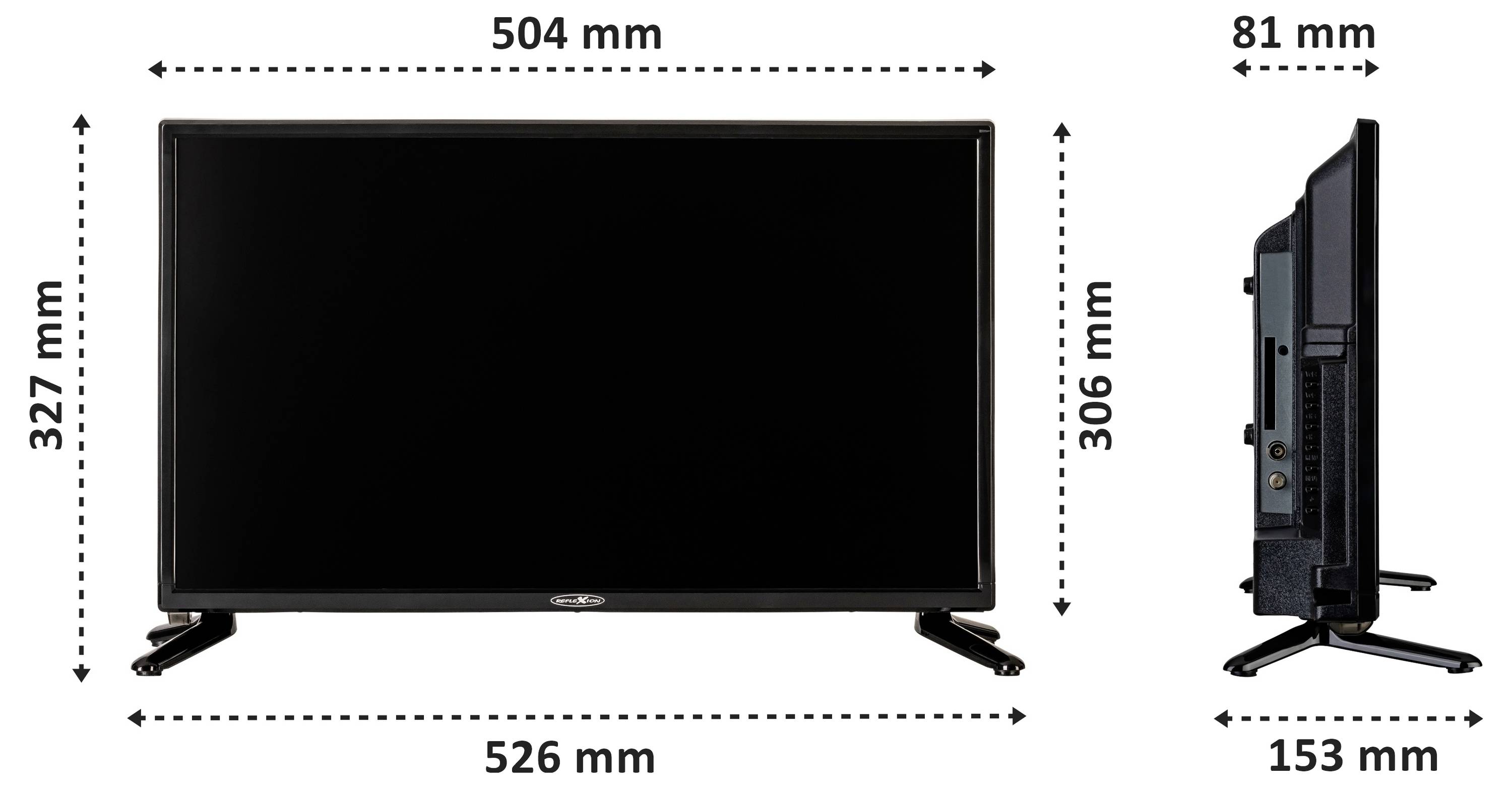

Television dimensions: front view is 526 mm wide, 327 mm tall; side view is 81 mm deep. Screen width is 504 mm, height is 306 mm.

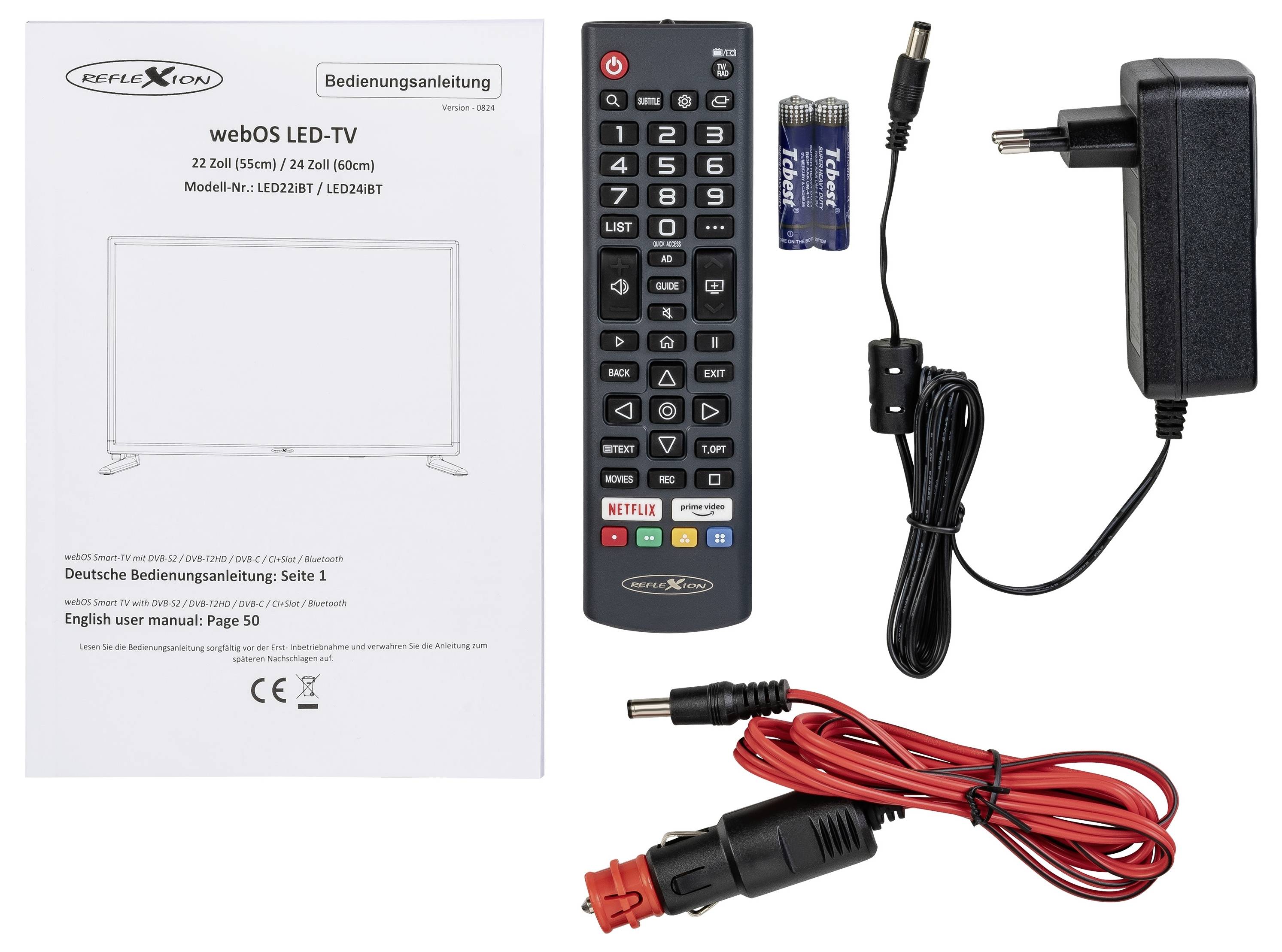

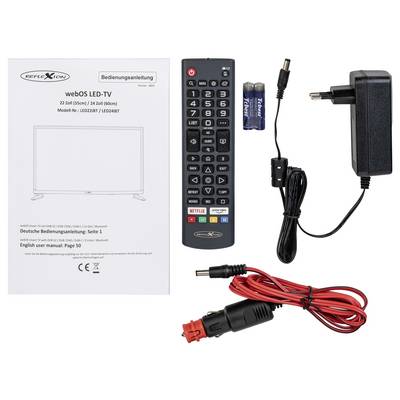

A TV remote, power adapter, batteries, and cables are shown alongside a quick start guide for a 'webOS LED-TV' model.

1/6

Product data sheet

Datasheet (PDF)

Fast track dispatch on Wed, 15 Jul

5 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 193.27 / piece)

€ 193.27

plus VAT.

Only 5 Piece(s) available

Report legal concerns

Highlights & Details

Reflexion LED22iBT 19" webOS Smart-TV with DVB-S2, DVB-C/T2 HD tuner and Bluetooth

Screen size diagonal: 55 cm (22 inch)
Full HD (1920 x 1080 Pixel)
Reception: DVB-S (sat), DVB-S2, DVB-C (cable), DVB-T2 (aerial)
Energy efficiency rating (calc): E (A - G)
Recording function: None

Technical specifications

Power consumption "On" (standard SD): 20W
Type of electrical display: DLED
Aspect ratio: 16:9
Screen size (cm) 55 cm
Screen size (inches): 22 inches
Visible screen area: 12.7dm²
Refresh rate / response time 60 Hz / 18 ms
Viewing angle: H:178° / V:178°
3000:1 contrast
Brightness (cd/m²): 180 cd/m²
Input voltage for device DC 12V / 3A
Average annual consumption (kWh/1000h): 20kWh / 1000h
OSD language: German, English, etc.
Power CONSUMPTION MAXIMUM: <36W
Mercury content included in mg / lead: 0mg / No.
Weight: 3.20kg
Power consumption "On" (Standard SDR): 15W
Power consumption "On" (HDR): 20W
Power consumption standby: < 0.5W
Power consumption "networked stand-by": < 0.5W
Screen resolution (pixels) 1920 x 1080
Average annual consumption (kWh/1000h)
Standard SDR: 15kWh / 1000h
Average annual consumption (kWh/1000h) HDR: 20kWh / 1000h
Colours: 16.7M colors
TV function: Channels: DVB-S/S2: 6000
ATX + DVB-T/C 3000
TV-function: Video text (ATV / DTV): 1000 / 1000
Power input DC 12V 1x
Optical (output): 1x
AV L/R 1X
RJ45: 1x
TV1 DVB-S/S2: 1X
TV2 DVB-C/T2HD 1X
HDMI 2
USB 5 V/500 mA 2
Headphones (3.5 mm): 1x
CI+Slot: 1x
Bluetooth / WLAN: Antennas are integrated
WLAN: 802.11b/g/n/ac, 2.4GHz & 5GHz
2.4 GHz: Max. 17dBm / 5GHz: Max. 14dBm
Bluetooth: Bluetooth: V.5.0 / max. 6 dBm
USB formats FAT32 / Max 1TB: AVI /MP4 / MPEG / MPG / MOV/
MKV / VOB / JPG / JPEG / BMP / PNG / MP3 / AAC
Smart TV interface: WebOS 2.0s (version 8.1.0 or higher) - automatic
Updates
AUDIO output 2x 3W
Weight (without feet): 2.15 kg
Weight, note: With base
VESA 100 x 100 mm
Wall mounting option: Yes

Features: Smart TV
CI+
Camping TV

Manufacturer: Reflexion

Product type: LCD TV

Screen size diagonal (inches): 22 inch

Reception: DVB-S (sat)
DVB-S2
DVB-C (cable)
DVB-T2 (aerial)

Display size: - 23 inch

Contrast ratio (dyn): 3000 : 1

Brightness: 180 cd/m²

Network/internet function: Bluetooth®
WiFi

Wi-Fi: built-in

No. of HDMI connections: 2

No. of USB ports: 2 x

Interfaces: Digital audio (optical)
RJ45
AV
Headphone jack (3.5 mm)
CI+ slot

Audio power (max.): 2 x 3 W

Power consumption (standby): 0.5 W

Recording function: None

Image format: 16:9

Display technology: LCD

: 100 x 100 mm

Wall mounting option: Yes

Factory colour: Black

Width: 526 mm

Height: 327 mm

Depth: 153 mm

Height (without base): 306 mm

Device depth (without stand): 81 mm

Weight: 2.15 kg

Weight, information: with base

Power supply (details): 230 V

Power supply (LOV): mains-powered

: E (A - G)

Dim: (W x H x D) 526 x 327 x 153 mm

Viewing angle: 178°

Screen resolution: Full HD (1920 x 1080 Pixel)

Display (cm): 55.9 cm

Screen size diagonal (cm): 55 cm

Screen size diagonal (inches): 22 inch

: 20 kWh/year

Power consumption (ON): 20 W

Documents & Downloads

Datasheet

Datasheet 3368916 Reflexion LED22iBT LCD TV 55 cm 22 inch EEC E (A - G) DVB-T2, DVB-C, DVB-S2, Full HD, Smart TV, Wi-Fi, CI+ Black

User & Safety Instructions

User & Safety Instructions 3368916 Reflexion LED22iBT LCD TV 55 cm 22 inch EEC E (A - G) DVB-T2, DVB-C, DVB-S2, Full HD, Smart TV, Wi-Fi, CI+ Black

Warranty Terms

Warranty Terms 3368916 Reflexion LED22iBT LCD TV 55 cm 22 inch EEC E (A - G) DVB-T2, DVB-C, DVB-S2, Full HD, Smart TV, Wi-Fi, CI+ Black

Description

Basic Smart-TV with triple-tuner

This text is machine translated.

Features

DVB-T2 HD, DVB-S2, DVB-C
WebOS smart function (LG Store)
Bluetooth

Scope of delivery

Remote control (batteries included)
User manual.

Hints

HDMI is a registered trademark of HDMI Licensing, LLC. The “CI Plus” Logo is a trademark of CI Plus LLP. All information provided is subject to change without notice. Design and functions are subject to change
