ElectromechanicsRelaysMonitoring RelaysEUM Monitoring Relays

Relay 24 V DC (max) 1 maker Metz Connect RM1-I 24 V DC Piece 1 pc(s)

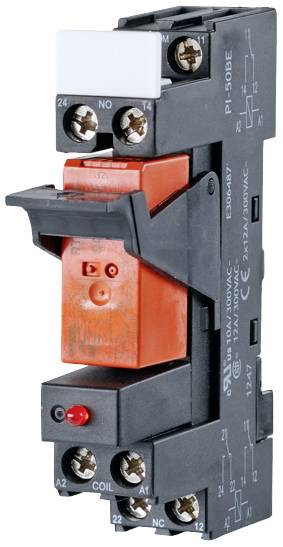

'Industrial relay with black housing and red switch, showing connections for electrical circuits and specifications.'
Packaging type
Piece
Product type
Relay
Max. operating voltage
24 V DC
Contact type
1 maker
Switching voltage (max.)
250 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 11 Nov
6 Piece(s) (Only while stocks last)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 19.99 / piece)
€ 19.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 6 Piece(s) available
14-day return policy included
Report legal concerns

Technical specifications

  • Power consumption max. 17 mA
Packaging type

Piece

Product type

Relay

Type

RM1-I 24 V DC

Features

pluggable

Operating voltage

24 V DC

Max. operating voltage

24 V DC

Operating voltage

24 V DC (max)

Switch-on current

165 A

Contact type

1 maker

Contact material

AgSnO2 + W

Switching voltage (max.)

250 V AC

Connection

Screw terminal

Min. temperature

-20 °C

Max. temperature

+55 °C

Width

15.50 mm

Height

75 mm

Depth

65 mm

Dim

(W x H x D) 15.50 x 75 x 65 mm

Content

1 pc(s)

Weight

95 g

AWG max.

22

AWG (min.)

12

Factory colour

Black

Cross section (inflexible) (max.)

2.5 mm²

Cross section (inflexible) (min.)

0.2 mm²

Documents & Downloads

Datasheet

Datasheet 3164635 Relay 24 V DC (max) 1 maker Metz Connect RM1-I 24 V DC Piece 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3164635 Relay 24 V DC (max) 1 maker Metz Connect RM1-I 24 V DC Piece 1 pc(s)

Description

Relay module for high loads and high inrush currents such as LED lighting systems and lamp loads for the potential separation between logic and load. Inrush relay for heavy loads and high inrush currents, connection with screw terminals, relay socket 2-level, plug-in relay, with labeling field, Socket, retainer clip and LED module.

This text is machine translated.

Features

  • Interface technology
  • Interface component
  • Relay module
  • Industrial Relays
  • Socket
  • Plug-in relay
  • 1 NOC
