Reolink NVS8-5MD4 NVS8-5MD4 Corded, Wi-Fi IP-CCTV set 2880 x 1616 p

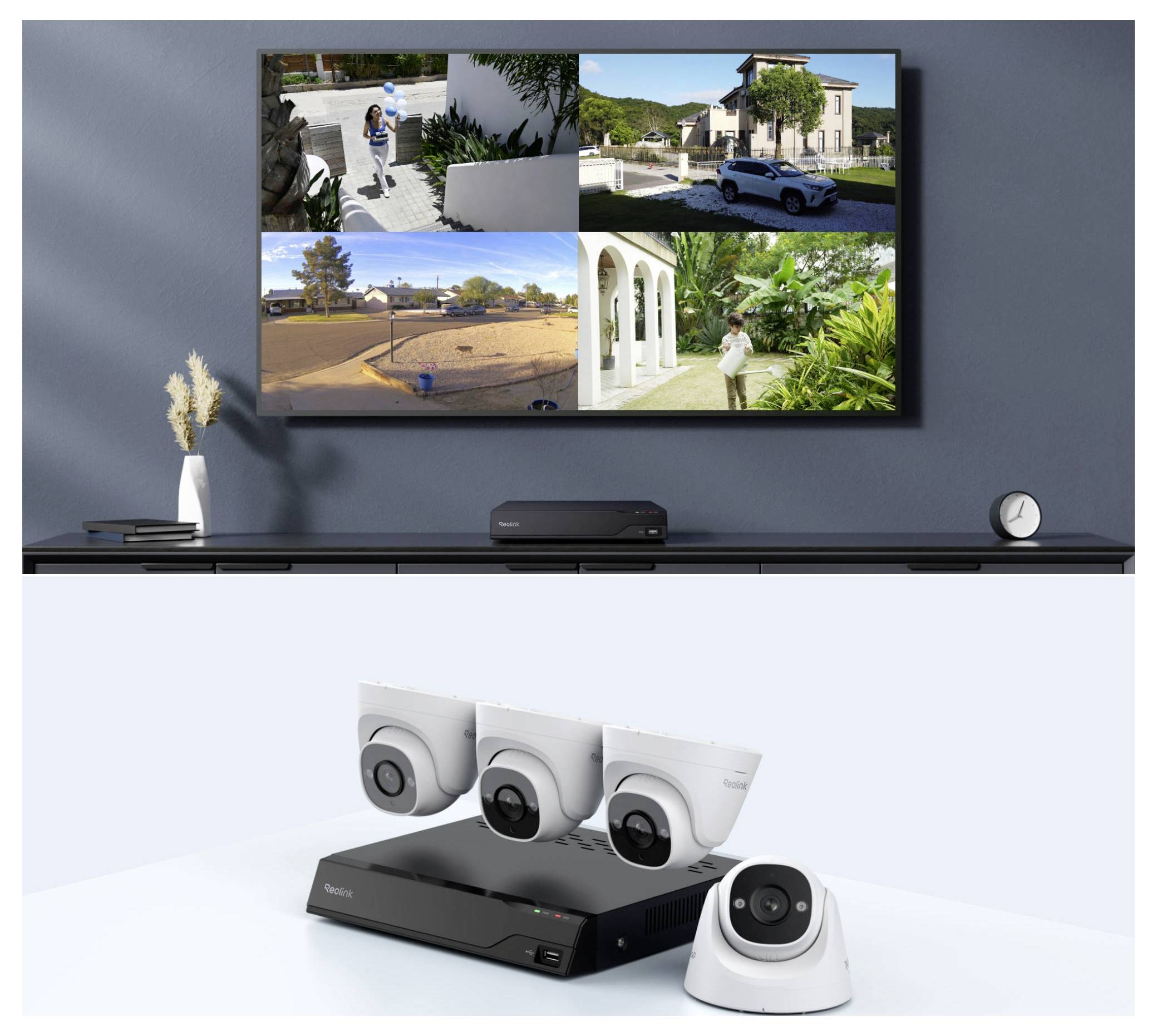

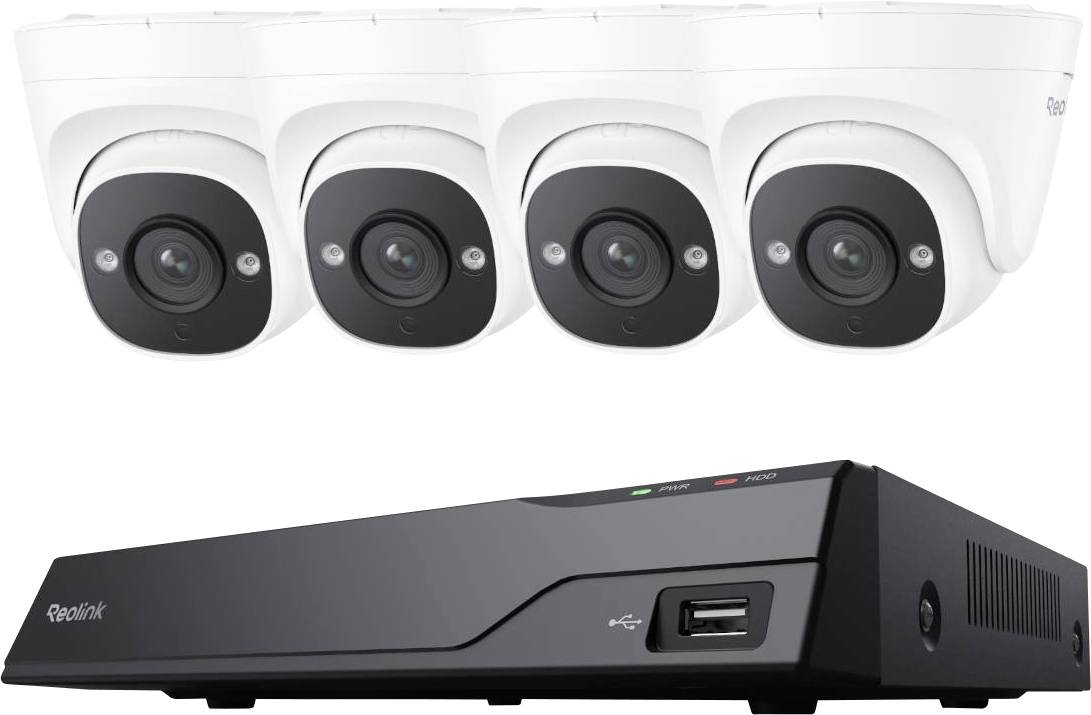

The Reolink NVS8-5MD4 5MP PoE security camera system is a powerful complete solution for reliable video surveillance of homes, commercial buildings and outdoor areas. The set consists of a 8-channel PoE network video recorder (NVR) with integrated 2TB hard drive as well as four high-resolution 5MP Reolink dome cameras and enables a central, stable and permanently available security monitoring system.

The cameras deliver a 2K+ 5MP super HD resolution (2880 × 1616 pixels at 30 fps) and capture even fine details precisely thanks to the 1/2.7" CMOS sensor and bright lens (f=2.8 mm, F1.6). The large viewing angle of 110° horizontal provides for a comprehensive surface coverage. Built-in infrared LEDs with a range of up to 30 meters are available for reliable monitoring in the dark. The automatic IR cut-filter ensures a seamless changeover between day and night mode.

A special feature is the intelligent detection of people, vehicles and pets. AI-based analysis distinguishes relevant events from insignificant movements such as rain or foliage and thus reduces false alarms considerably. Real-time notifications via APP or email.

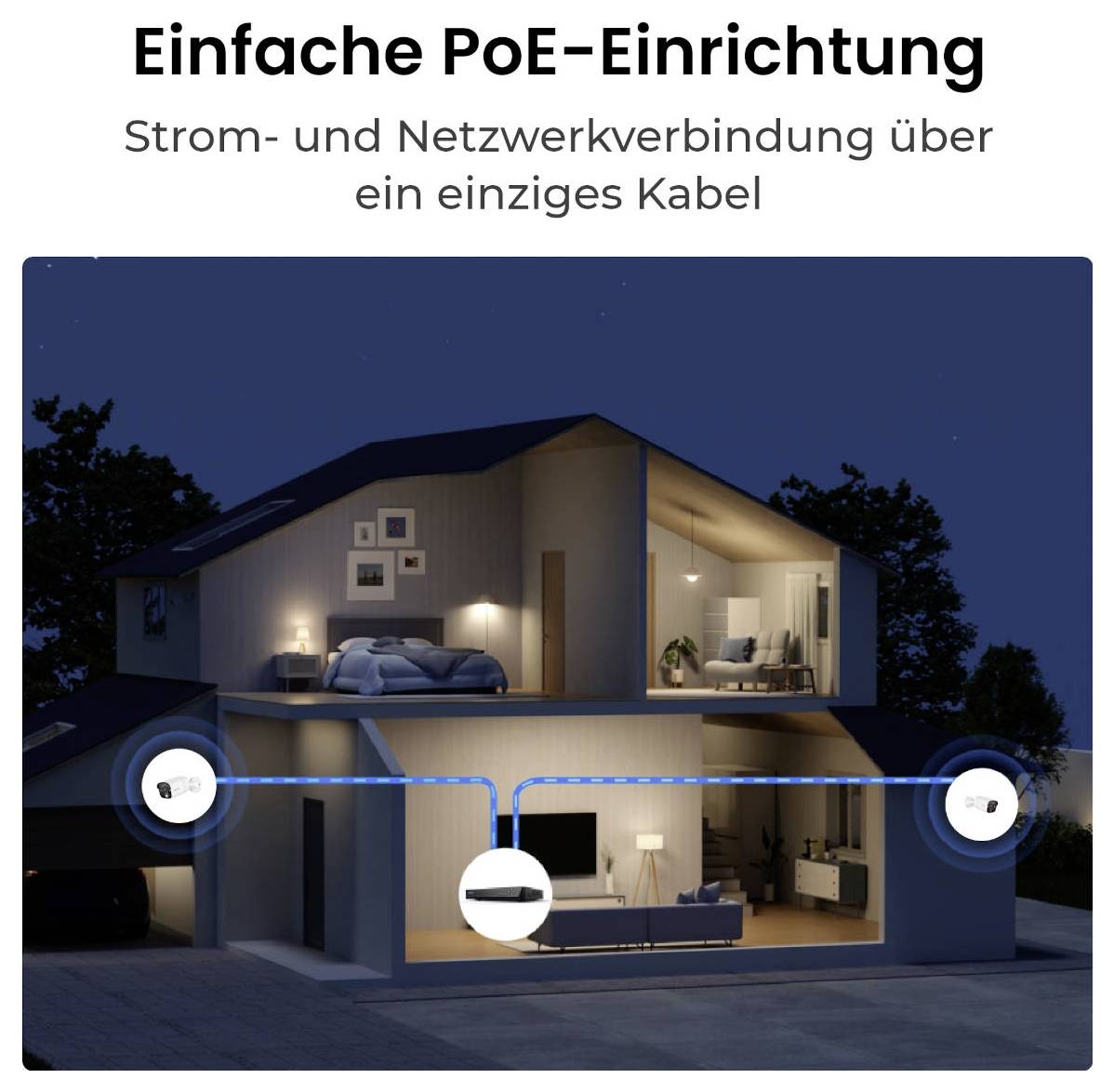

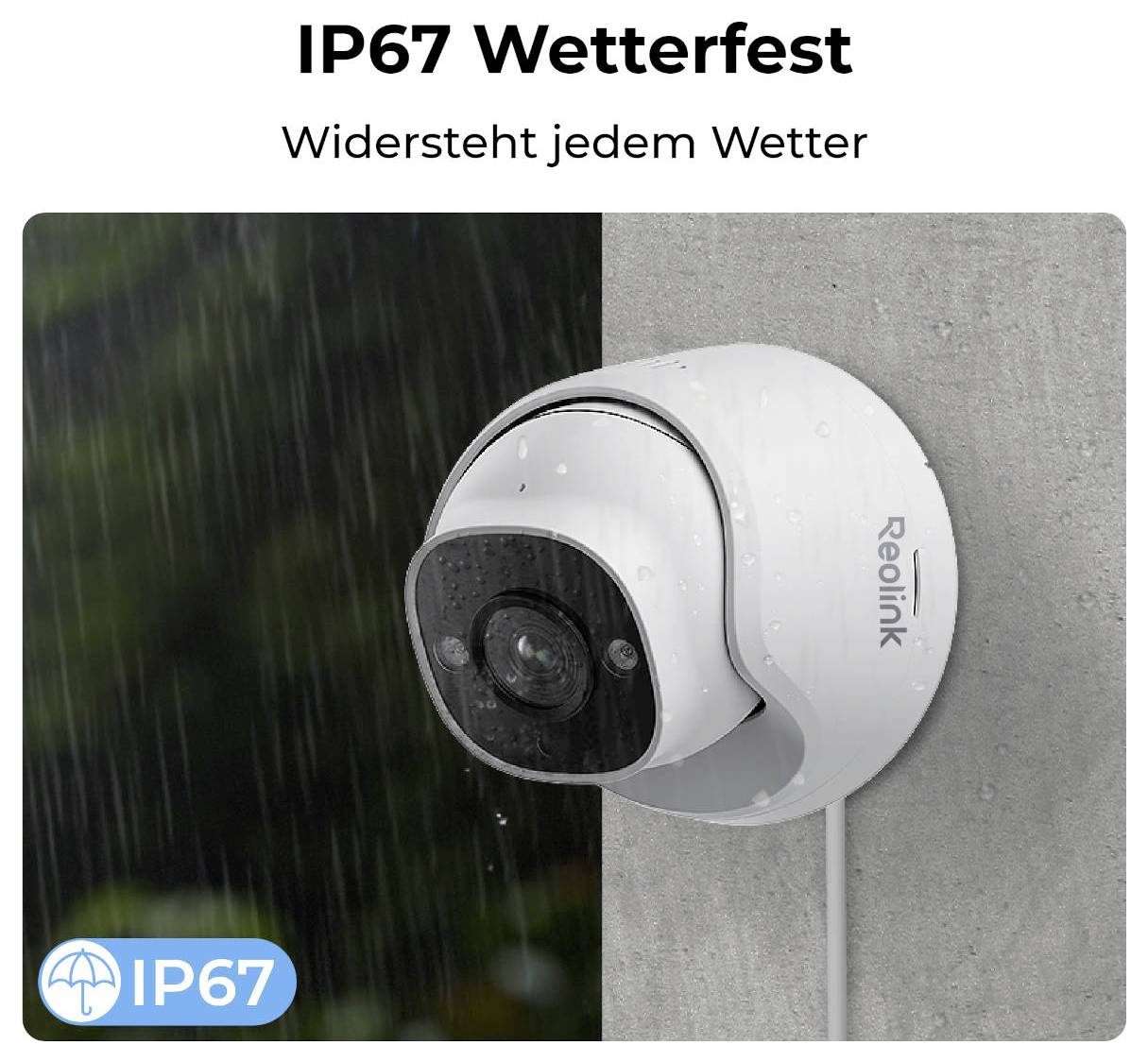

Installation is very simple thanks to PoE (Power over Ethernet). A single network cable per camera simultaneously transmits power and data, eliminating the need for separate power supplies, and providing clean, structured cabling. The reliable aluminum housing of the surveillance cameras, which are certified according to IP67, makes it robust and waterproof. Even in bad weather conditions like rain, snow, cold and heat the cameras function reliably indoors as well as outdoors.

The 8-channel PoE-NVR allows the connection of up to 12 IP cameras, of which 8 are cable-bound cameras and supports HDMI as well as VGA-outputs with resolutions up to 3840 × 2160 (4K). The system supports all Reolink PoE IP cameras with a resolution of up to 16 MP, including bullet, dome, or PTZ cameras. The integrated 2TB SATA hard drive enables a continuous 24/7-recording. The storage capacity can be extended up to 16TB via SATA and eSATA interface. The modern H.265/H.264-compression provides for efficient memory and bandwidth usage.
For additional interaction, the system supports two-way audio with built-in microphone and speaker. A direct communication with visitors or delivery services is thus possible at any time. Remote access is easy via Windows, Mac OS, iOS or Android as well as via popular browsers such as Edge, Chrome, Firefox or Safari. Up to 20 user accounts are supported. There are no current monthly fees.
* Reolink network video recorders (NVR) ONLY work with Reolink IP cameras.
* The Reolink surveillance cameras included in the set ONLY work in the set.



Network video recorder: NVS8video/audio input
IP video input: Up to 12 IP cameras (max. 8 wired cameras)
Audio input: Cameras with built-in microphone
Video output 1 HDMI port, 1 VGA port
Screen resolution: HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768
VGA: 1920x1080, 1280x1024, 1280x720, 1024x768
1 audio output channel, RCA

Decode
Video compression: H.265 / H.264
Live view/playback Resolution: 780x2160, 4608x1728, 4512x2512, 4096x3072, 3840x21600.2560x2560, 2560x1920, 2560x1440, 2048x1536, 2304x1296.1080p, 720p
Synchronous playback: 1–4 channels (only 1 channel at 8 MP or higher resolution in view)

Hard disk drive
SATA 1 SATA-interface
External hard drive: 1 eSATA port for hard drive
Capacity: Up to 16 TB (up to 8 TB capacity per hard drive)

External interfaces
USB interface 2 x USB 2.0
Network interface (PoE): 8 x RJ-45, 10/100 Mbit/s self-adaptive PoE Ethernet interface (for IP cameras)
Network interface (LAN/WAN): 1 x RJ-45, 10/100/1000 Mbit/s self-adaptive

PoE
Maximum power per port 25 W
Supported standard: IEEE 802.3 AF/at

Networks
NETWORK PROTOCOLS: HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
Supported browsers: Edge, Firefox, Chrome, Safari
Supported operating systems: PC: Windows, Mac OS; Smartphone: IOS, Android
Max. User access: 20 users (1 Administrator & 19 Users); up to 12 simultaneous video streams (10 Substreams & 2 Mainstream)

General
Power supply: Direct current 48 V ~ 52 V
Power consumption: <10W (without HDD & PoE)
Working environment: Temperature: -10°C ~ +45°C (14°F ~ 113°F);
Humidity: 10% ~ 90%
Dimensions: 255 mm (W) x 49.5 mm (H) x 230 mm (D)
Weight: 1.4 kg (without hard drive)


Reolink surveillance camera

Video & audio
1/2.7" CMOS sensor
Video resolution 2880 x 1616 (5.0 megapixels) at 30 fps
Lens: F=2.8mm fixed, F=1.6
H.264 video format
Viewing angle: Horizontal: 110°; vertical: 57°; diagonal: 133°
Day/night mode: IR band-blocking filter with automatic switching
Night vision: Up to 30 m (infrared LED: 2 piece/1.8 W/850 nm)
Audio: Two-way audio

Power Supply
PoE: IEEE 802.3af, 48 V active
DC Power DC 12.0 V/1 a, <12 W

Interface
Power DC-power connection
System: Reset button
Ethernet 1 x 10 M/100 Mbps RJ45
Storage: Micro SD-card slot (Max. 256 GB
Audio: Built-in microphone and speaker

Software
Frame rate: Main stream: 2 fps – 30 fps (standard: 30 fps); sub-stream: 4 fps – 15 fps (standard: 10 fps)
Bit rate: Main stream: 2048kbps -6144kbps (standard: 5120kbps); sub-stream: 64 kbps - 1228 kbps (standard: 256Kbps)
Browser: IE, Edge, Chrome, Firefox, Safari
Operating system: PC: Windows, Mac OS; Smartphone: IOS, Android
Smart alarm: Motion detection / detecting people / detecting cars / detecting pets
Recording mode: Motion recording / schedule recording / 24/7-recording (standard: Motion recording)
NETWORK PROTOCOL & STANDARDS: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Max. User access: 20 users (1 administrator account & 19 user accounts); supports up to 12 simultaneous video streams (10 x Substream & 2 x Mainstream)
Smart home compatibility Google assistant

Work environment
Temperature: Operating temperature: -10°C~+55°C (14°F~131°F)
Humidity: Operating humidity: 10% ~ 90%
IP 67 protection

Size & weight
Dimensions Φ 117.4 x 103.8 mm
Weight: 526 g.

This text is machine translated.
