eufy eufy NVR Security System S4 E8E00325 Corded, LAN IP-Network video recorder set 3840 x 2160 p

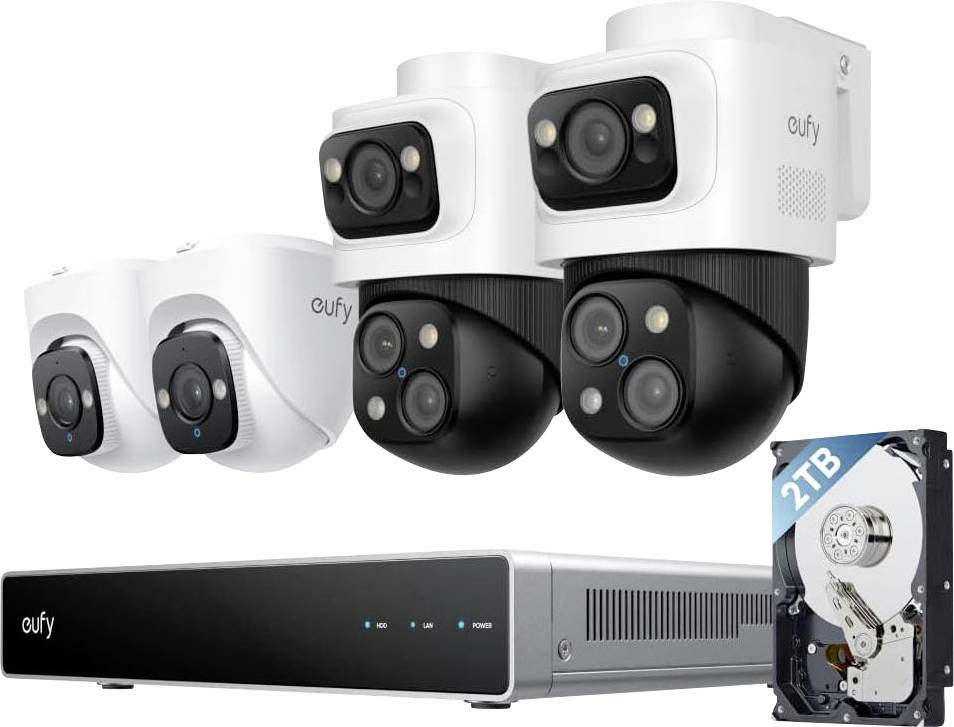

The Eufy PoE NVR Security System S4 is a wired monitoring system for the permanent 24/7 video surveillance of properties, entrances, driveways, courtyards, warehouses or commercial outdoor areas. The kit combines a network video recorder with a pre-installed 2 TB hard drive, two triple lens PTZ cameras and two 4K Turret cameras. The cameras are powered via PoE (Power over Ethernet) and at the same time transfer the video data via the same cable. Thus the installation remains clear, since only one cable is needed for each camera.

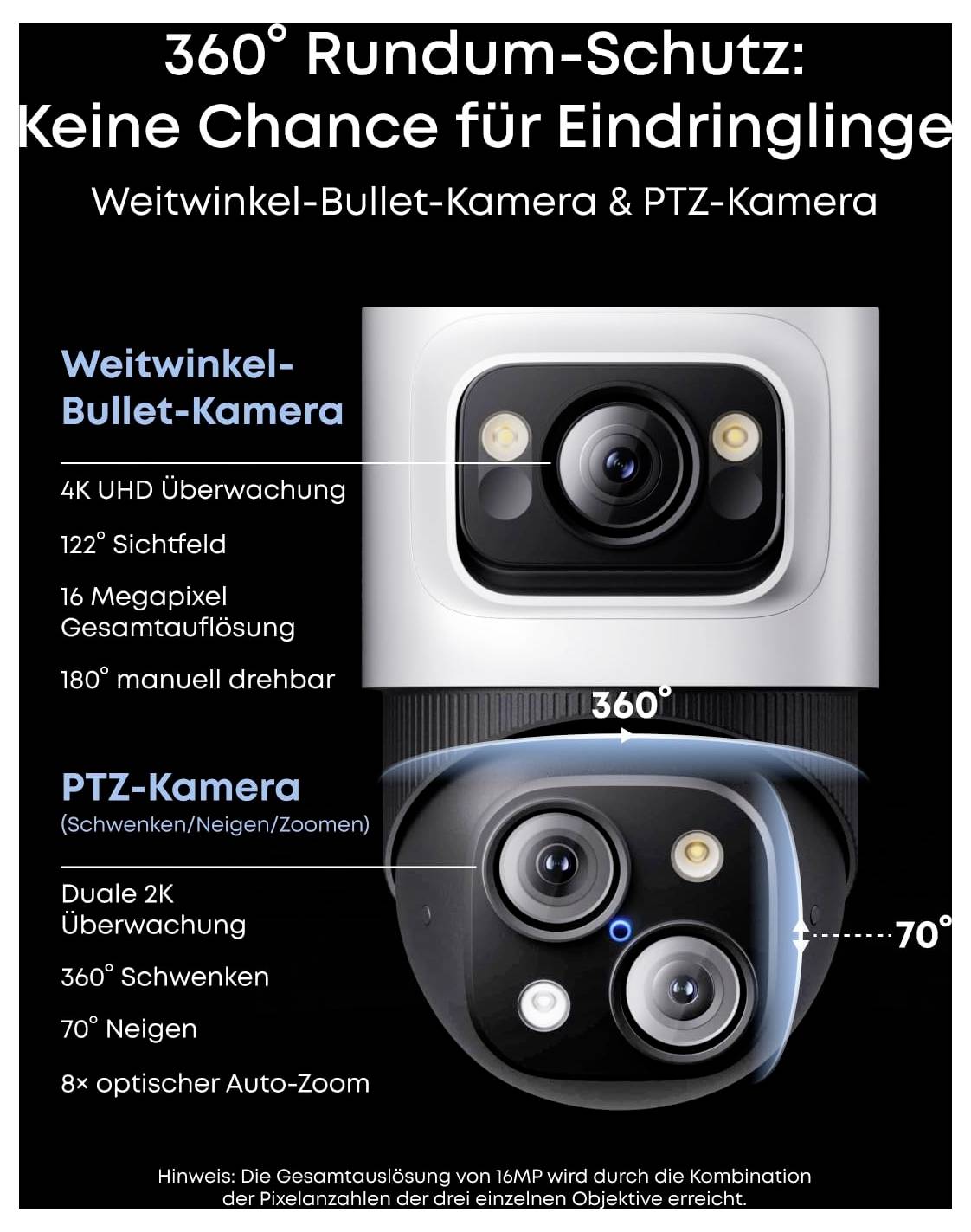

The Triple Lens PTZ cameras connect an upper 4K wide-angle camera to a lower moving PTZ unit. The wide-angle camera captures the overall image, while the PTZ unit tracks identified people or groups, automatically zooms in and keeps them centered in the image. With 360° horizontal PTZ cover, 0-70° vertical tilt range and 8-fold hybrid Zoom, the system is suitable for overview as well as for detailed close-ups.

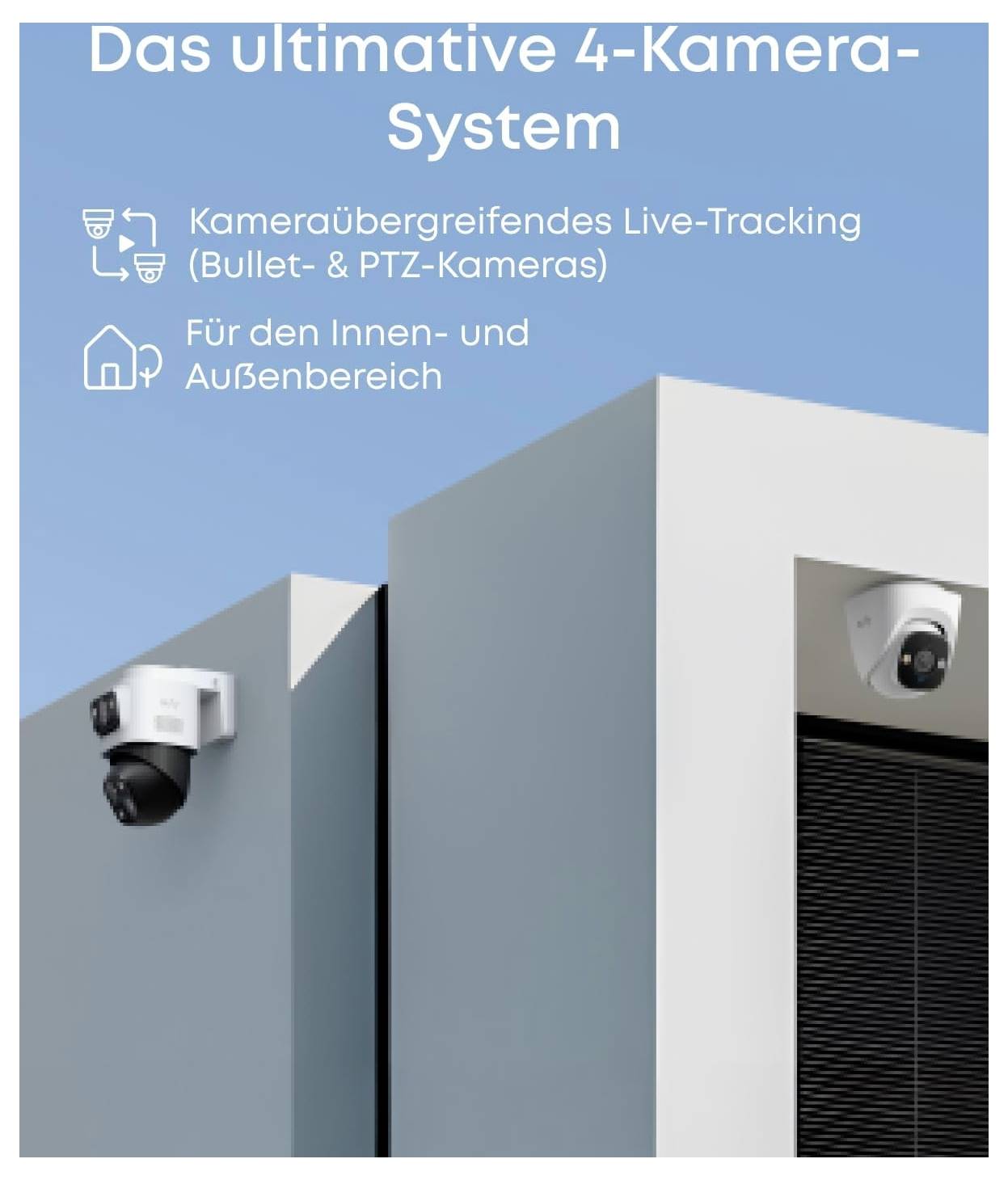

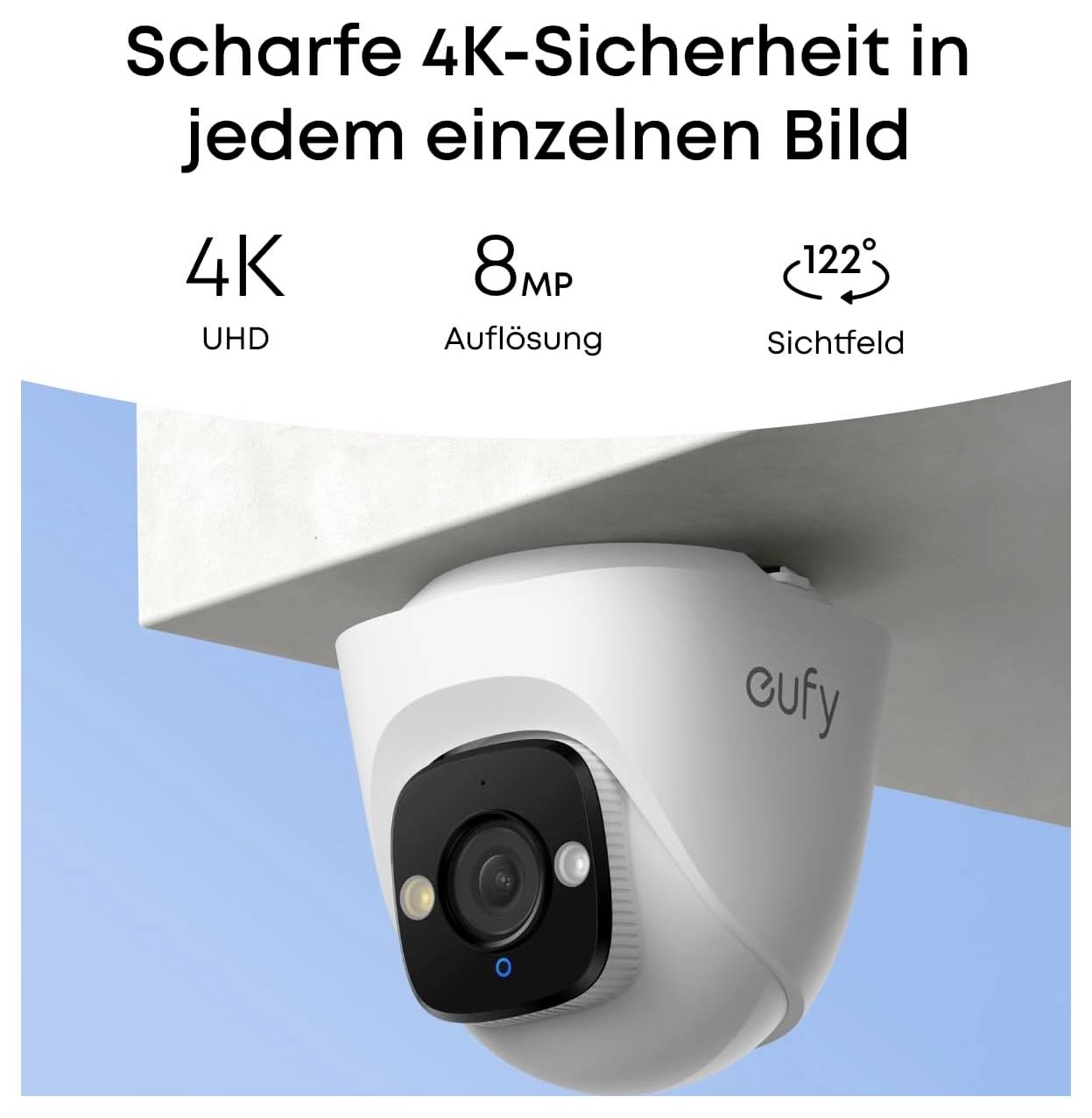

The two 4K Turret cameras complement active tracking with fixed surveillance of key areas. They deliver highly detailed ultra HD recordings with extra-wide 123° field of view and are especially suitable for dynamic areas, in which a clear overview is needed permanently. Together, a 4-camera system is created for fixed coverage and active tracking.

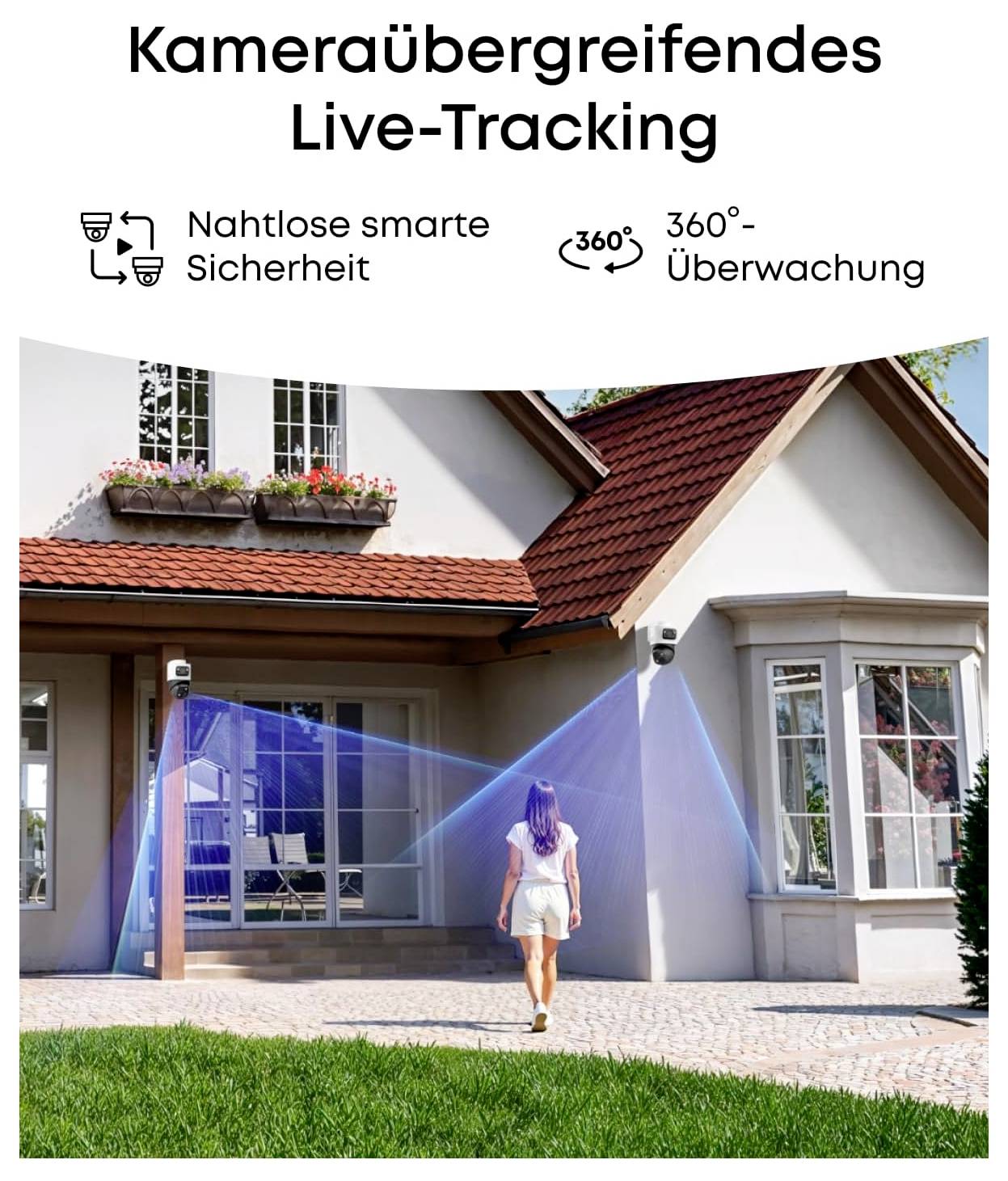

Auto framing and group tracking support the automatic tracking of people or groups that have been detected up to a distance of approx. 50 m. In live tracking across cameras, the PTZ cameras work synchronously: When a camera reaches their field of view, the next camera can take over the movement and thus ensure continuous monitoring.
For shooting in low light conditions, the system uses color night vision with AI-ISP processing. Starlight, spotlight and infrared night vision enable colored or infrared-supported recordings at darkness. HDR/WDR also supports a balanced representation in case of strong differences in brightness, for example in bright headlights or reflective characteristics.

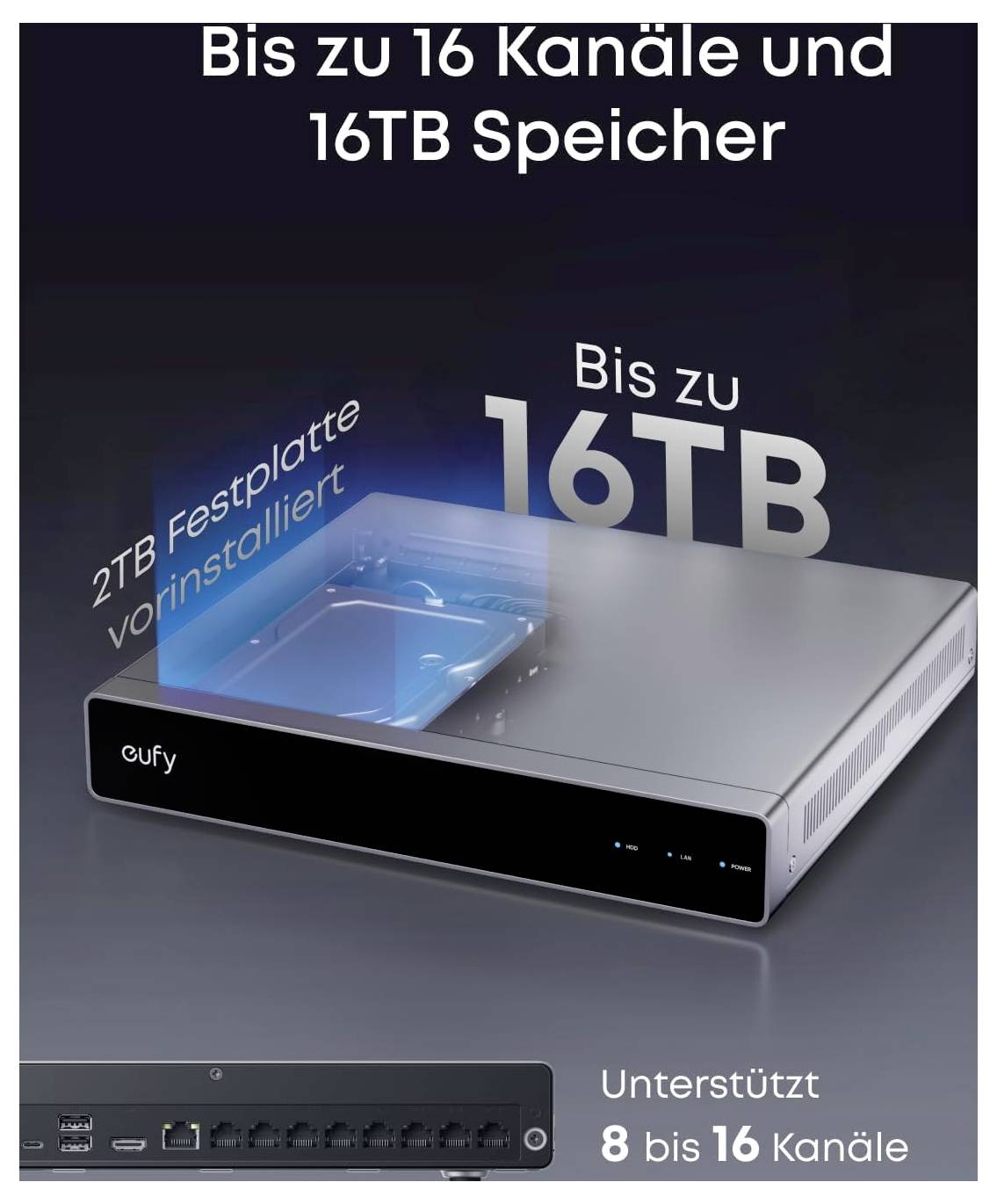

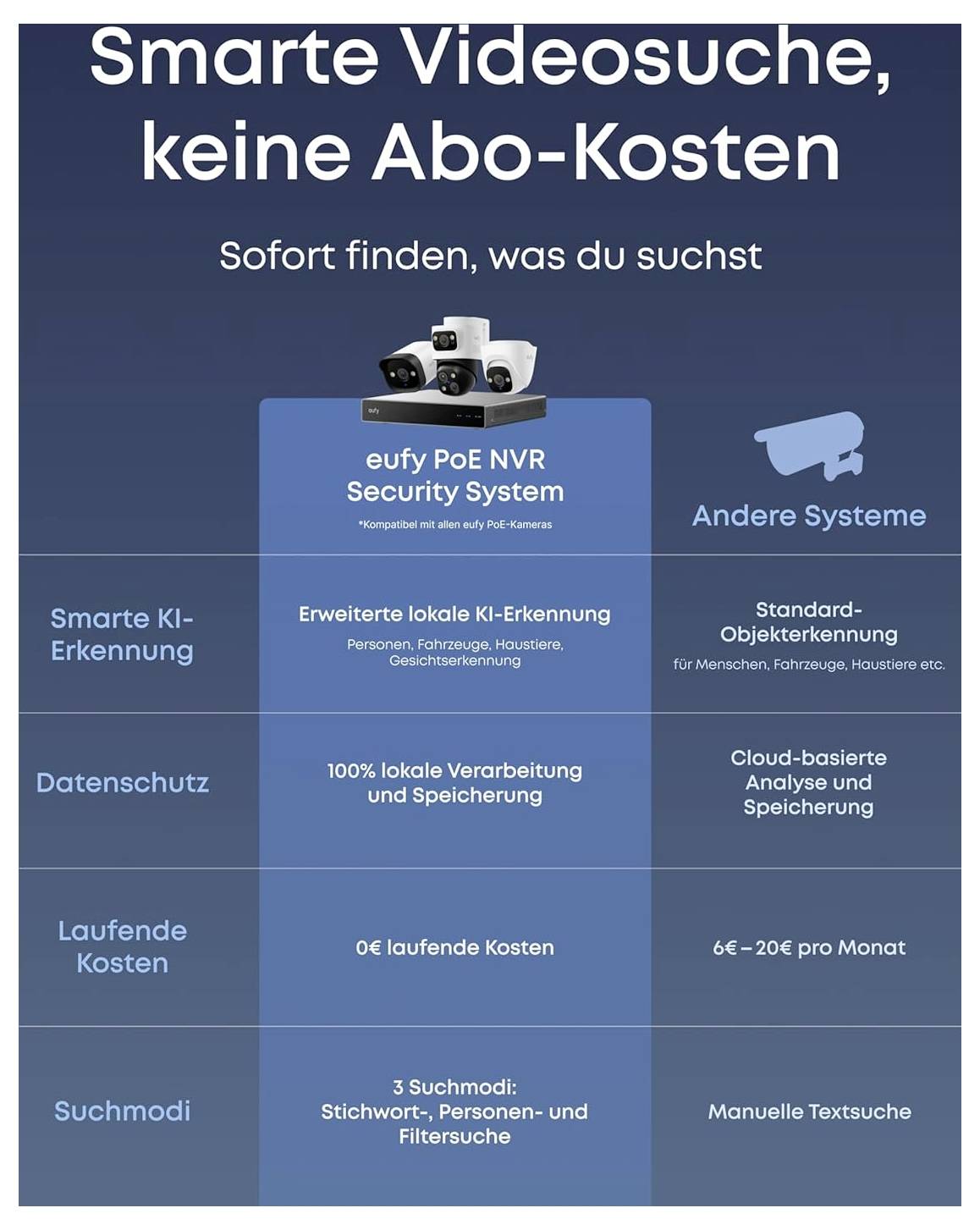

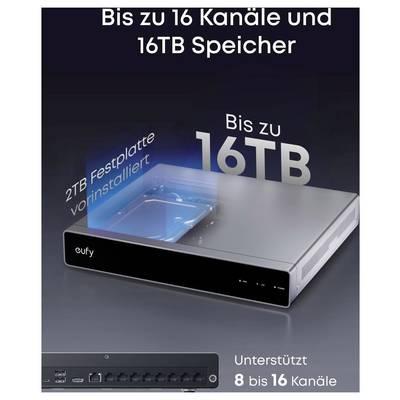

The NVR's local AI processes events directly in the system and detects people, vehicles, pets and other relevant events. The smart video search simplifies the retrieval of stored photographs by structure, text and filter search. The pre-installed 2 TB hard drive is designed for 24/7 recording and can be expanded up to 16 TB. Red-blue warning light, alarm and two-way audio support active deterrence and communication.



Technical data

Product name: NVR Security System S4
Smart search: 1. Structured search (person/face/vehicle/pet); 2. Text search in videos; 3. Filter search
AI: Yes
Two-way audio: Yes
Smart home integration: Alexa / Google assistant
Active zone / connection to HomeBase 3: No.
Colour: Grey + white
Shipping weight: 5.551 kg
Power supply: Input 48 V / 2.5 A.
For each PoE-output: Max. 48 V / 0.72 A
Each USB-output: Max. 5 V / 1 A
Type-C output: Max. 5 V / 1.5 A
Connections 8× PoE connections
1× LAN connection
1× HDMI
2× USB-A
1× USB-C / TYPE-C.
1× audio output
1× DC input
Button 1× SYNC
Swivel and tilt: Turret camera: 10°-40°; PTZ camera: 360° horizontal, 0-70° vertical
Storage: 2 TB
8 MP resolution
Lens: Turret camera:
Aperture: F1.6
Focal length: 2.8 mm
Field of view 123.3°
(105.4° horizontal, 58.8° vertical)
PTZ camera:
Aperture: F1.6
Focal length 2.8 mm / 8 mm
Field of view 117.1° / 45°
(100.5° horizontal, 56.2° vertical)
(39.4° horizontal, 22.6° vertical)
Image sensor: Turret camera: 1/2.8" stacked CMOS
1/3" BSI CMOS / 1/3" BSI CMOS
Colour night vision: KI-ISP
Spotlight night vision: 3 white LEDs (4000 K)
Illumination up to 6 m (19.7 ft)
Infrared night vision 2 IR LEDs (850 nm)
Illumination up to 6 m (19.7 ft)
Blue-red light 1× red-blue light
HDR/WDR: Yes (enabled by default)
Video encoding H.265
Zoom: 8× hybrid zoom, 5× digital zoom, 3× optical Zoom
Frame rate: Turret camera: 20 fps; PTZ camera: 20 fps
Microphone and speaker: Integrated
Notifications: Notification
Alarm: Yes (manually or automatically triggered)
Wireless connection: Eufy WLAN module / eufy Longrange
Operating systems: APP: IOS 10.2 and Android 5.0 or higher
Operating temperature -30 °C to +45 °C / -22 °F to +113 °F.
Operating humidity: 10% to 90%
Weather protection IP65/IP66 (depending on camera type)

This text is machine translated.
