Name: Rittal SK 3359.640 Cooler 400 V AC 0.49 kW (W x H x D) 597 x 417 x 380 mm 1 pc(s)
Brand: Rittal
SKU: 3386785
Availability: BackOrder

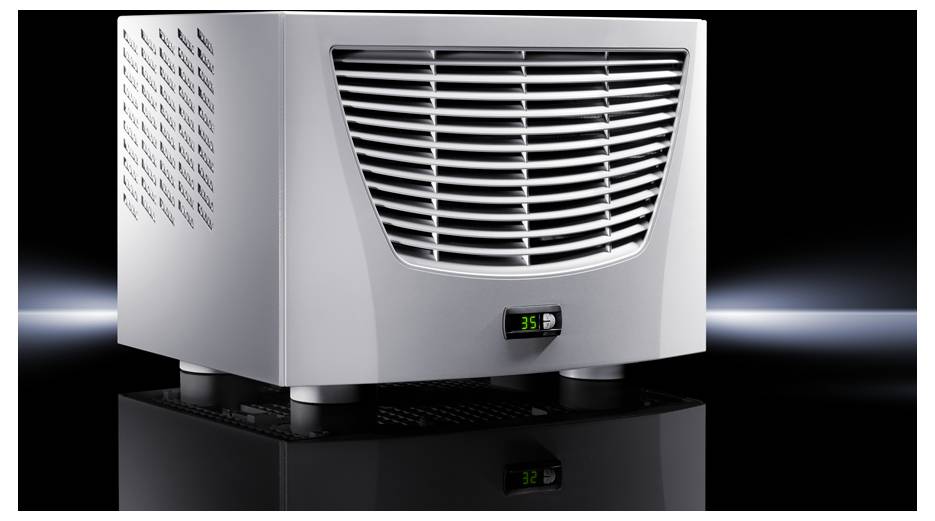

Silver-coloured cabinet, possibly a cooling appliance, with side ventilation slots and a digital display on a glossy surface.

Product type

Cooler

Operating voltage

400 V AC

Power

0.49 kW

Width

597 mm

Height

417 mm

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 3,015.00 / piece)

€ 3,015.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Material: Stainless steel 1.4301 (AISI 304)
Net weight: 37.195 kg
Gross weight: 37.795 kg
Dimensions: Width 597 mm
Height: 417 mm
Depth: 380 mm
Benefit: Network-enabled with the IoT interface via Blue e IoT adapter for cooling devices starting with 500 W cooling power with e-Comfort controller
Colour RAL 9007
Design: Roof structure
Air flow (free-blowing): External circuit: 800 m³/h.
Internal circuit: 585 m³/h.
Rated operating voltage 400 V, 2~, 50 Hz/60 Hz
400 V/AC
Temperature control: E-Comfort controller (factory setting +35 °C)
Operating temperature range -10°C...55°C.
Refrigerant/Coolant: Refrigerant: R-513A
Quantity: 0.4 kg
Global Warming Potential (GWP): 631
CO2 equivalent (CODOS e): 0.25 t
Rated power Pel: Rated power L35 L35/50 Hz: 0.36 kW
Rated power L35 L35/60 Hz: 0.42 kW
Rated power L35 L50/50 Hz: 0.49 kW
Rated power L35 L50/60 Hz: 0.48 kW
Rated current max.: At 50 Hz: 1.6 A
At 60 Hz 2.1 A
Starting current (max.): At 50 Hz: 5.4 A
At 60 Hz 5.2 A
Total cooling power according to DIN EN 14511: Cooling power L35 L35/50 Hz: 0.77 kW
Cooling performance L35 L35/60 Hz: 0.75 kW
Cooling performance L35 L50/50 Hz: 0.52 kW
Cooling performance L35 L50/60 Hz: 0.47 kW
Energy efficiency ratio (EER) 50/60 Hz L35 L35: Cooling rate L35 L35 (EER) 50 Hz: 2.14
Cooling power L35 L35 (EER) 60 Hz: 1.79
Protection class IP according to EN 60 529: External circuit IP 34
Internal circuit IP 54
Storage temperature range -40°C...70°C.
Setting range 20 °C...55 °C
Permissible operating pressure (p max.): 28 bar
Fuse: Transformer circuit breaker: 6.3...10 A
Connection type (electrical): Plug-in terminal block
Duty cycle:100%

Product type: Cooler

Type: SK 3359.640

Features: for coolers

Operating voltage: 400 V AC

Max. current consumption: 5.4 A

: 0.49 kW

Air flow rate: 800 m³/h
585 m³/h

Compatible with: Rittal

Factory colour: Grey-aluminium (RAL 9007)

Min. temperature: +10 °C

Max. temperature: +55 °C

: IP34
IP54

Connection: Plug & Clip

Width: 597 mm

Height: 417 mm

Depth: 380 mm

Dim: (W x H x D) 597 x 417 x 380 mm

Weight: 37.195 kg

Content: 1 pc(s)

: 597

: Other

: 417 mm

: 380 mm

: AC

: FALSE

: TRUE

: TRUE

: 10-55 °C

: 360-440 V

: 360-440 V

: 750 W

: FALSE

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3386785 Rittal SK 3359.640 Cooler 400 V AC 0.49 kW (W x H x D) 597 x 417 x 380 mm 1 pc(s)

Description

SK RTT Blue e MIDI cooler, roof structure, 750 W, 400 V, eComfort contr., Stainless steel, BHT 597 x 417 x 380 mm

Energy-efficient Blue e roof-mounted cooling devices in the power classes 500 W to 4,000 W with standard integrated e-comfort controller and electrical condensation.
