Schabus 200363 Miniature float switch

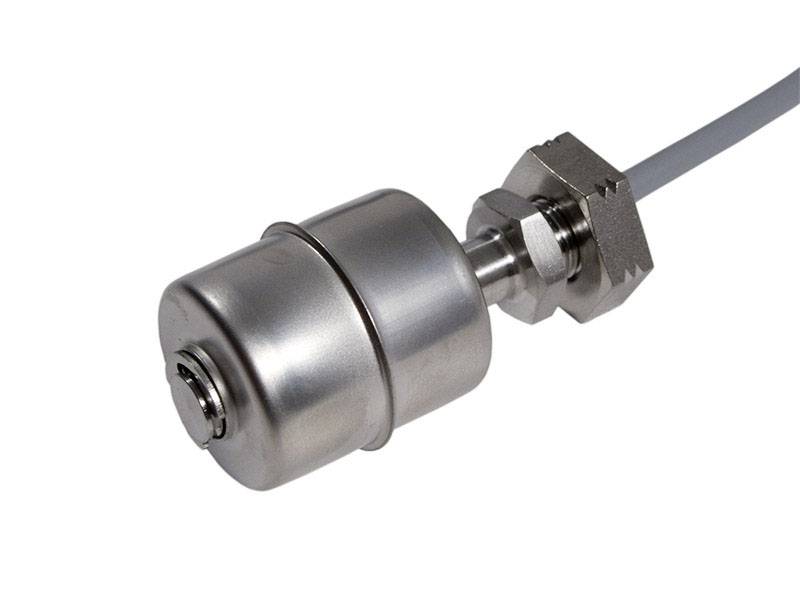

A cylindrical, silver liquid level sensor with cable and metal screw fitting, for monitoring liquid levels.

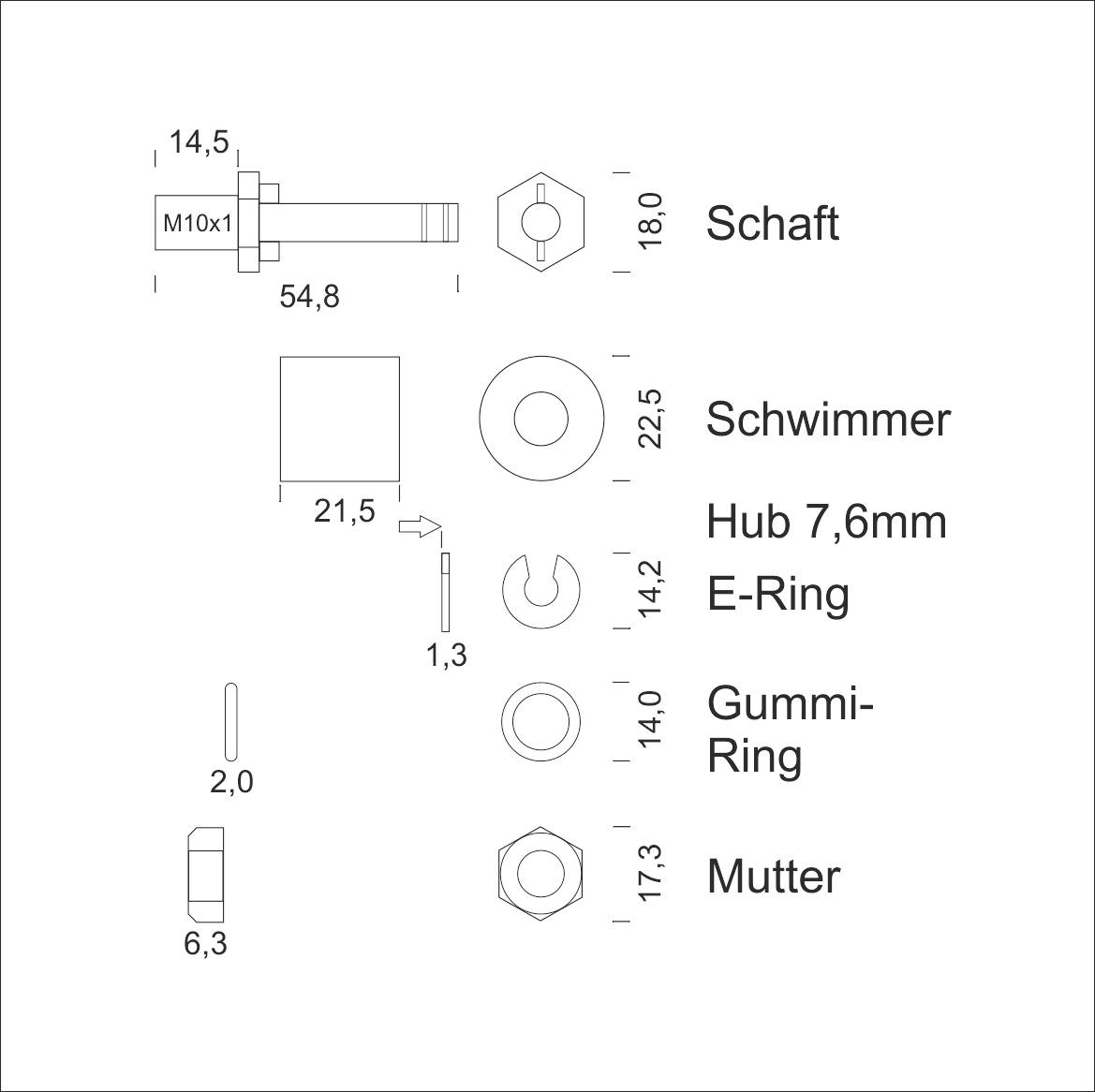

Technical drawing of mechanical parts with dimensions; shaft, float, stroke 7.6mm, E-ring, rubber ring, nut.

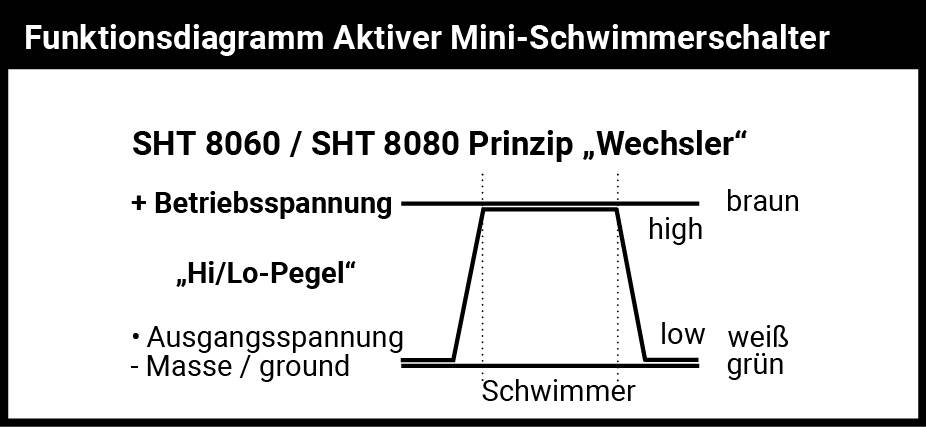

'Functional diagram of the active mini float switch. Shows SHT 8060/SHT 8080 principle "changeover switch" with positive, earth/ground and float positions high/low.'
Stainless steel float switch for logic circuits. Characteristics: reliable, maintenance-free, suitable for water level reporting.
1/4
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Tue 17 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 97.99 / piece)
€ 97.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Operating voltage Ub: 5 … 42 Volt= DC
  • Output voltage Lo / Hi: 0 Volt / Ub - 0.1 Volt
  • Current limitation: Yes, 1kΩ
  • Switching frequency: 1 billion @ 5 V / 1 mA
  • Switching principle: Reed contact, changeover contact
  • Connection cable: 4 meters, 3-wire, white, Ø 3.8 mm
  • Operating range: -15 °C … max. 60 °C.
  • Installation position: Vertical, max. 30° inclination
Product type

Miniature float switch

IP67

Dim

(Ø x H) 28 mm x 59 mm

Height

59 mm

(Ø)

28 mm

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 2239465 Schabus 200363 Miniature float switch

Datasheet 2239465 Schabus 200363 Miniature float switch

User & Safety Instructions

User & Safety Instructions 2239465 Schabus 200363 Miniature float switch

Description

The active V2A stainless steel miniature float switch is supplied with a DC voltage and returns a current-limited voltage level when activated by rising water level. Ideal for the assignment of unused analogue inputs in house automation and building control systems.
Not suitable for connection to Schabus water detectors.
