Name: Schabus 300949 Hinged float switch
Brand: Schabus
SKU: 2627042
Availability: InStock

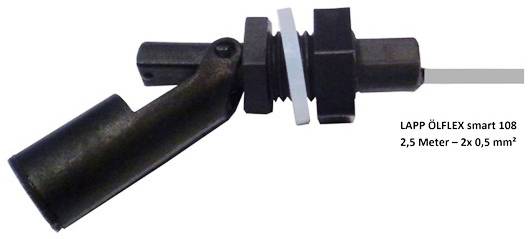

A black plug with cable attachment and thread. Text: 'LAPP OLFLEX smart 108, 2.5 metres – 2x 0.5 mm²'.<br><br>Note: I adjusted the spelling to British English (metres, with 're' ending) while keeping the technical specification intact.

LAPP ÖLFLEX smart 108 cable connector, black, 2.5 metres, cross-section 2x0.5 mm², suitable for flexible applications in electrical engineering.

'Closer (n.o.)' and 'Opener (n.c.)' show electrical switch mechanisms. Above: Contact is closed; Below: Contact is opened.

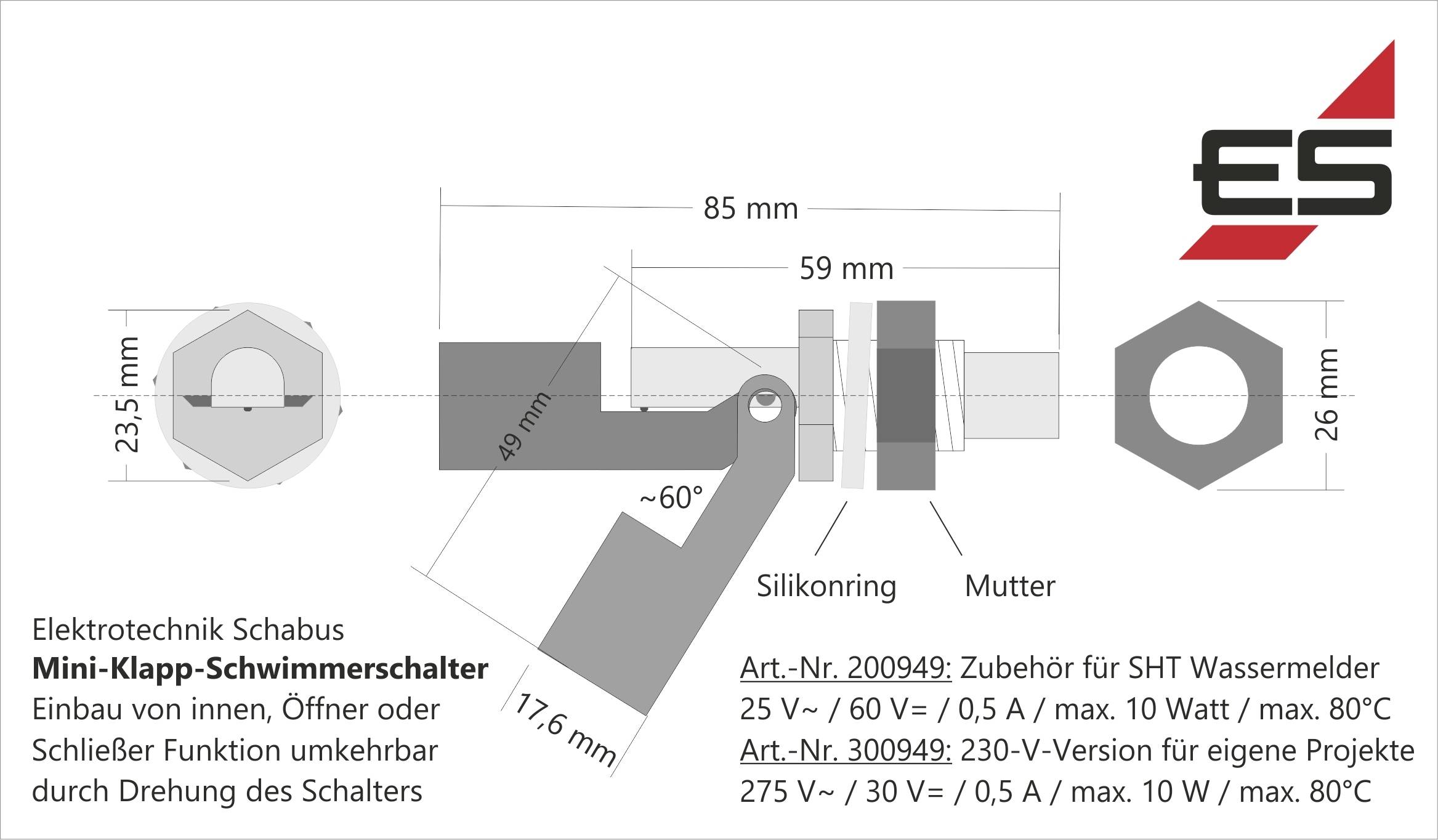

Technical Drawing of a Mini Folding Float Switch by Elektrotechnik Schabus. Dimensions, Parts such as Silicon Ring, Nut. Assembly Instructions and Article Numbers.

1/4

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

85 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 30.99 / piece)

€ 30.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Fold-float switch 230 Volt

Plastic material (PP and ABS)Cable length 2.5 m (2 x 0.5 mm²) Oil flex 108NC contact / NO contact – by turning the float switch you get the reverse contact functionSuitable for all liquids with a density of at least 0.7 g/ cm³ e.g. water, heating oil, diesel, vegetable oil, lubricating oils, among others

Technical specifications

Electrical connection: 2.5 m Lapp Oilflex smart 108 (2x 0.5 mm²)Thread dimensions M16 x 1.5External thread Ø: 16 mmShank Ø 12 mmSealing ring-Ø 24 mmTotal length without cable: Approx. 85 - 86 mm, installation depth 57 - 58 mmSwitching function: Opener (NC) / closer (NO)SWITCHING VOLTAGE 230 V~ AC / 30 V= DCSwitching current / load: Max. 0.5 A / max. 10 WattTemperature range -20°. . . Max. 80 °C.Protection class IP67Density of medium: Min. 0.7 g/cm³Pressure: DepressurizedMounting position: Horizontal

Product type: Hinged float switch

Mounting type: Horizontal

Operating voltage: 230 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2627042 Schabus 300949 Hinged float switch

User & Safety Instructions

User & Safety Instructions 2627042 Schabus 300949 Hinged float switch

Description

The plastic folding float switch (PP and ABS) is reliable, maintenance and wear-free and can be mounted "from the inside" in a tank, canister, etc. This switch is built by IT: A reed contact is soldered with the high-quality cable and cast together in the shaft with Wepuran®. With the 230-volt version, which is not primarily intended for use with Schabus water detectors, you can switch a 230-V relay directly in the fuse box.The fold-over float switch 230 Volt may only be used in circuits that are protected by an FI switch.
