Buy H-Tronic 1114725 WSS 1 Water leak detector incl. external sensor mains-powered, via mains outlet

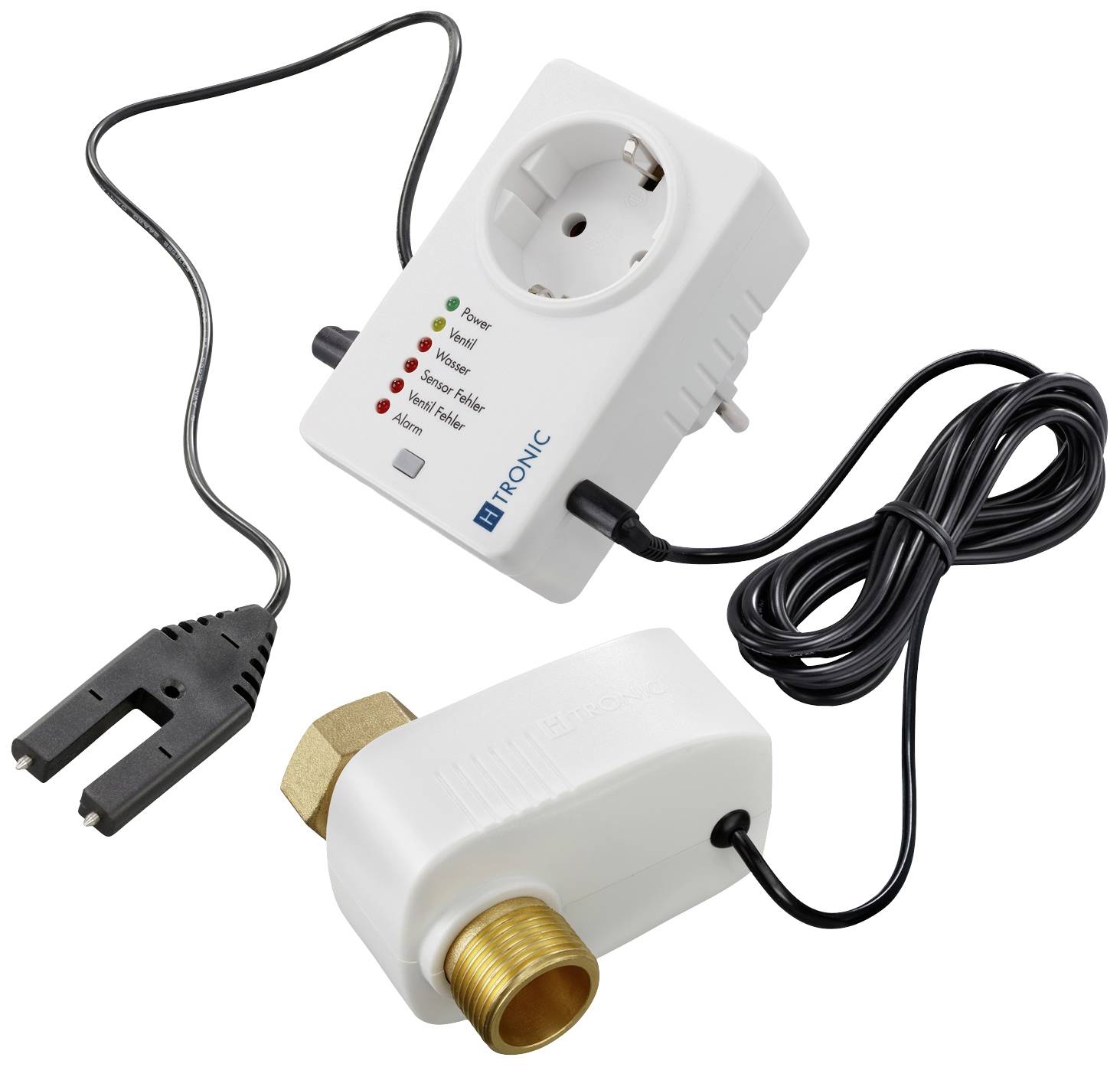

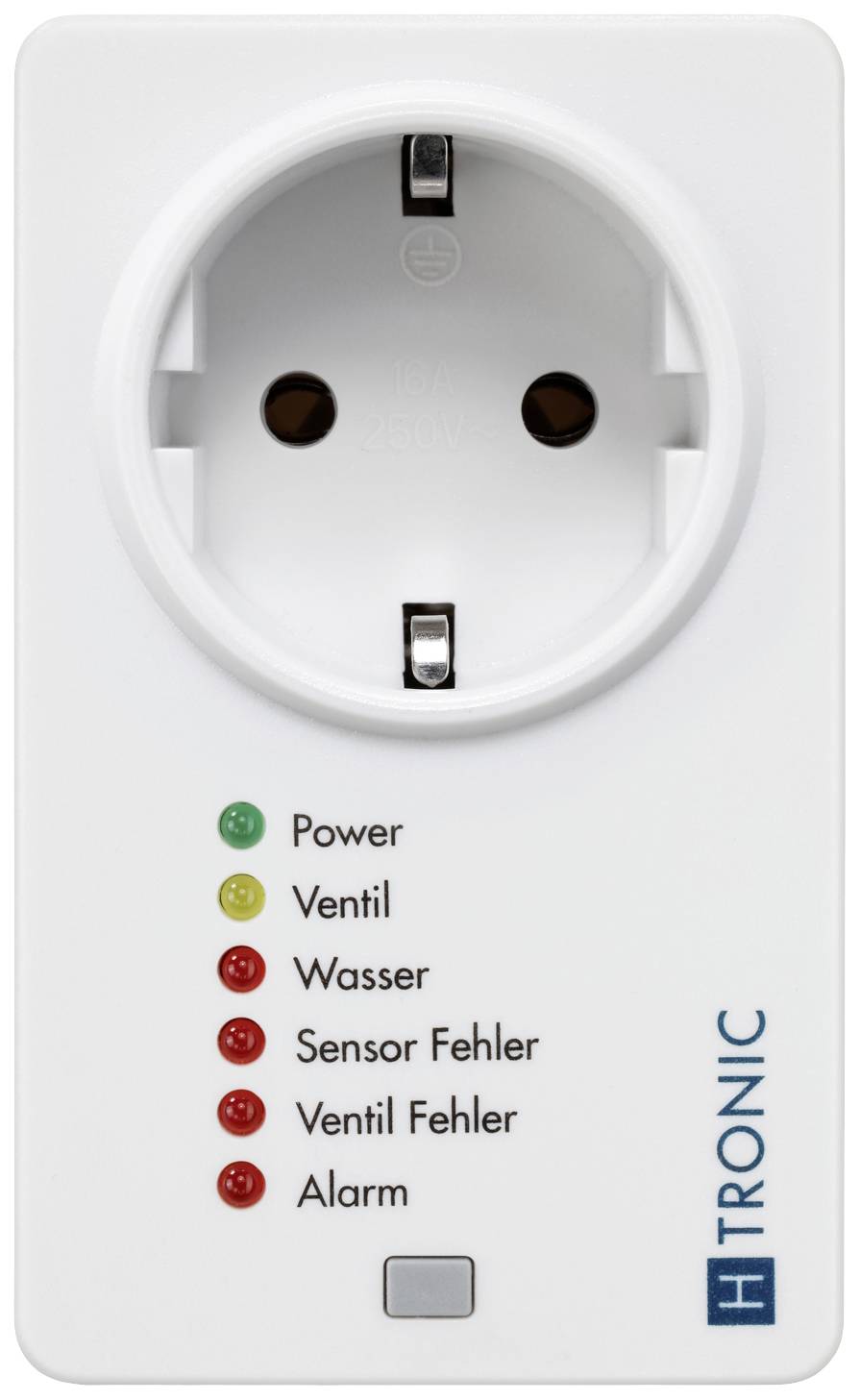

A water leak detector consisting of a sensor with two metal contacts, a control unit with a socket and LED indicators for status display.

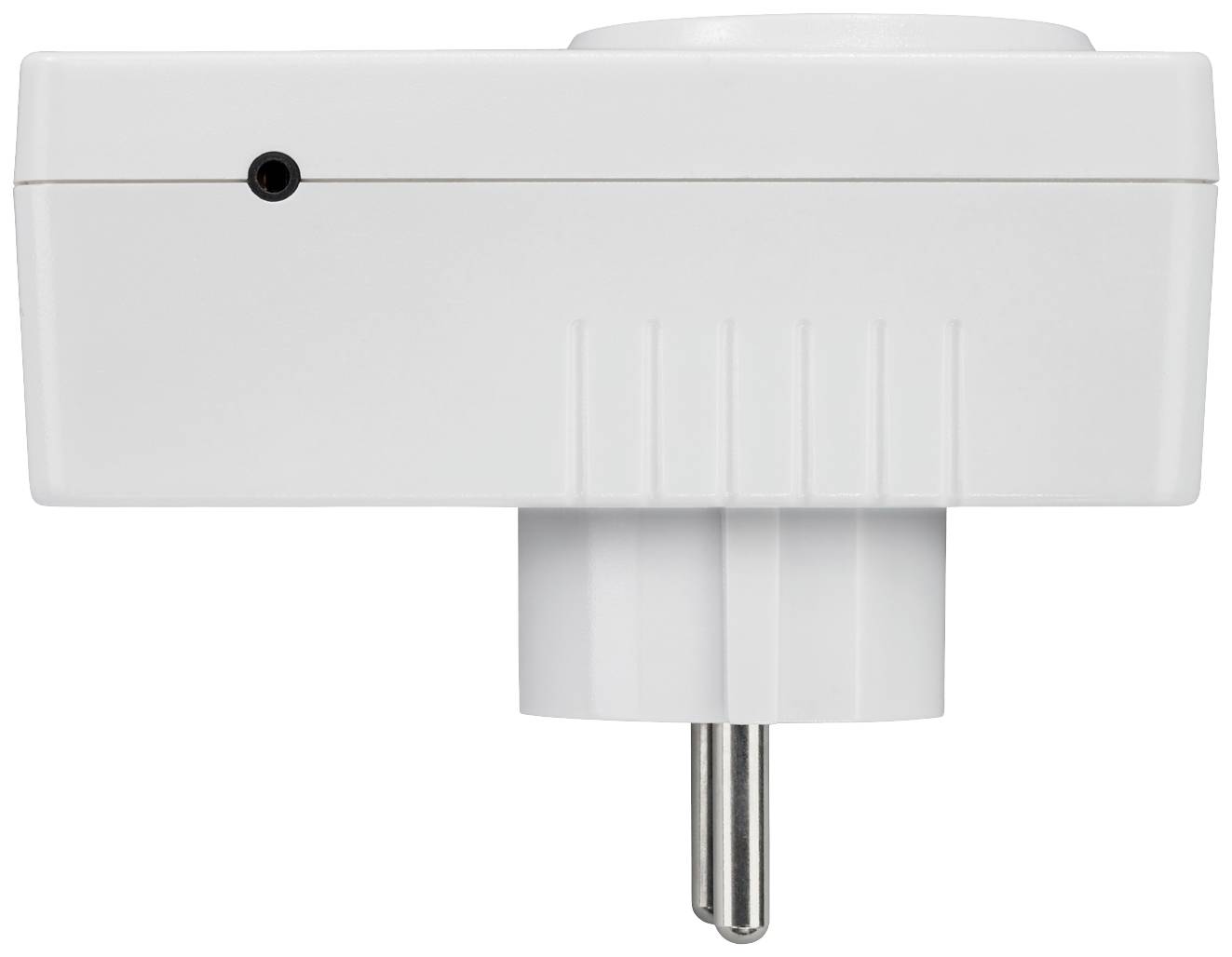

A white electric socket adapter device with a side connection pin. Designed for wall mounting in households.

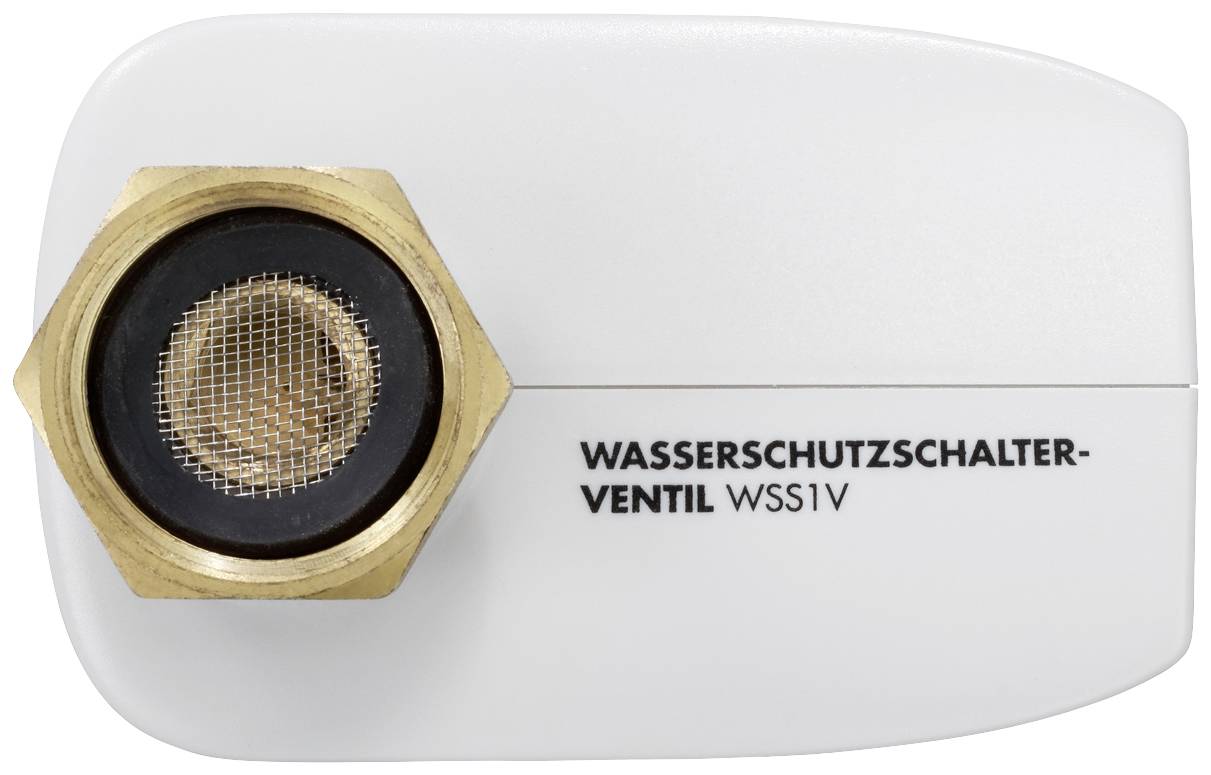

White water protection switch valve with bronze-coloured cap and strainer. Label: 'Water Protection Switch Valve WSS1V'.

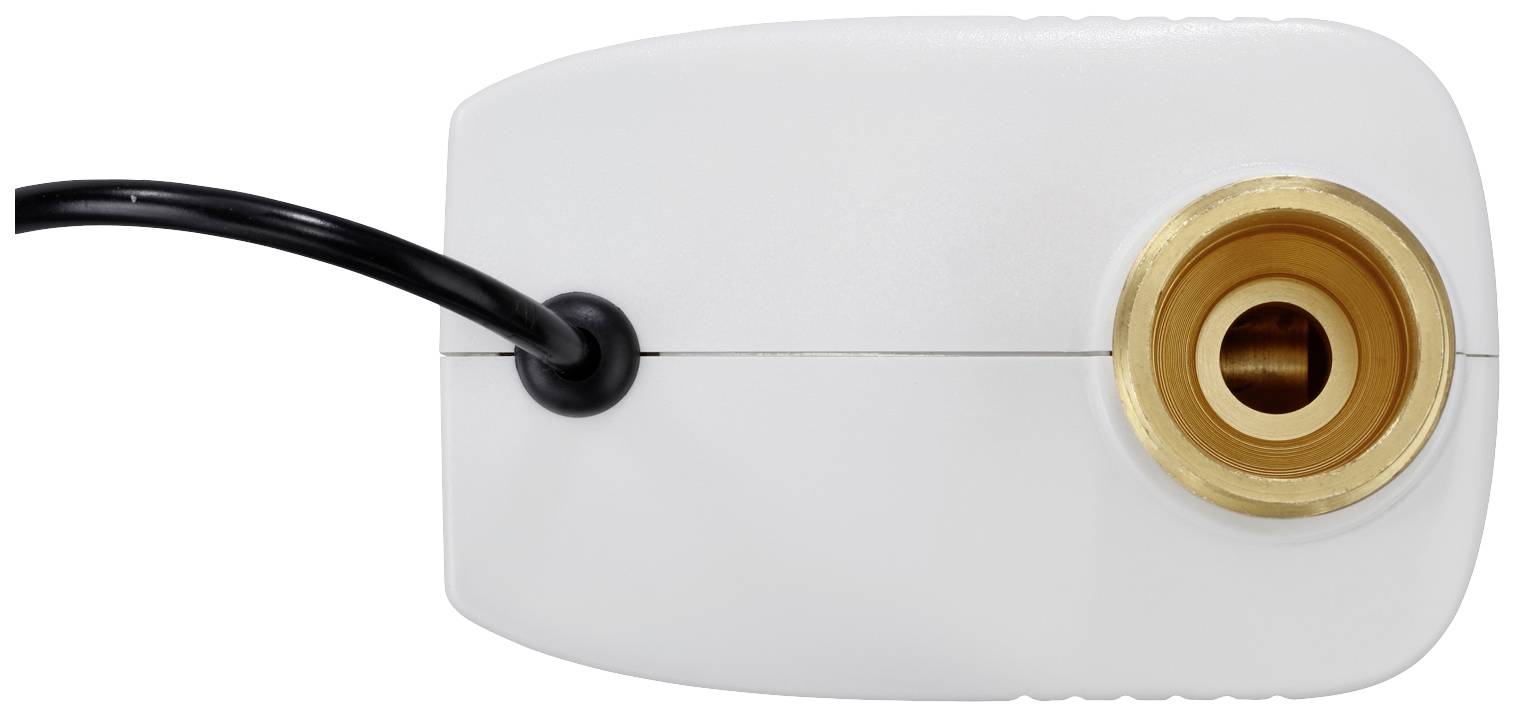

A white electronic device with a round golden socket and a black cable on the left side.

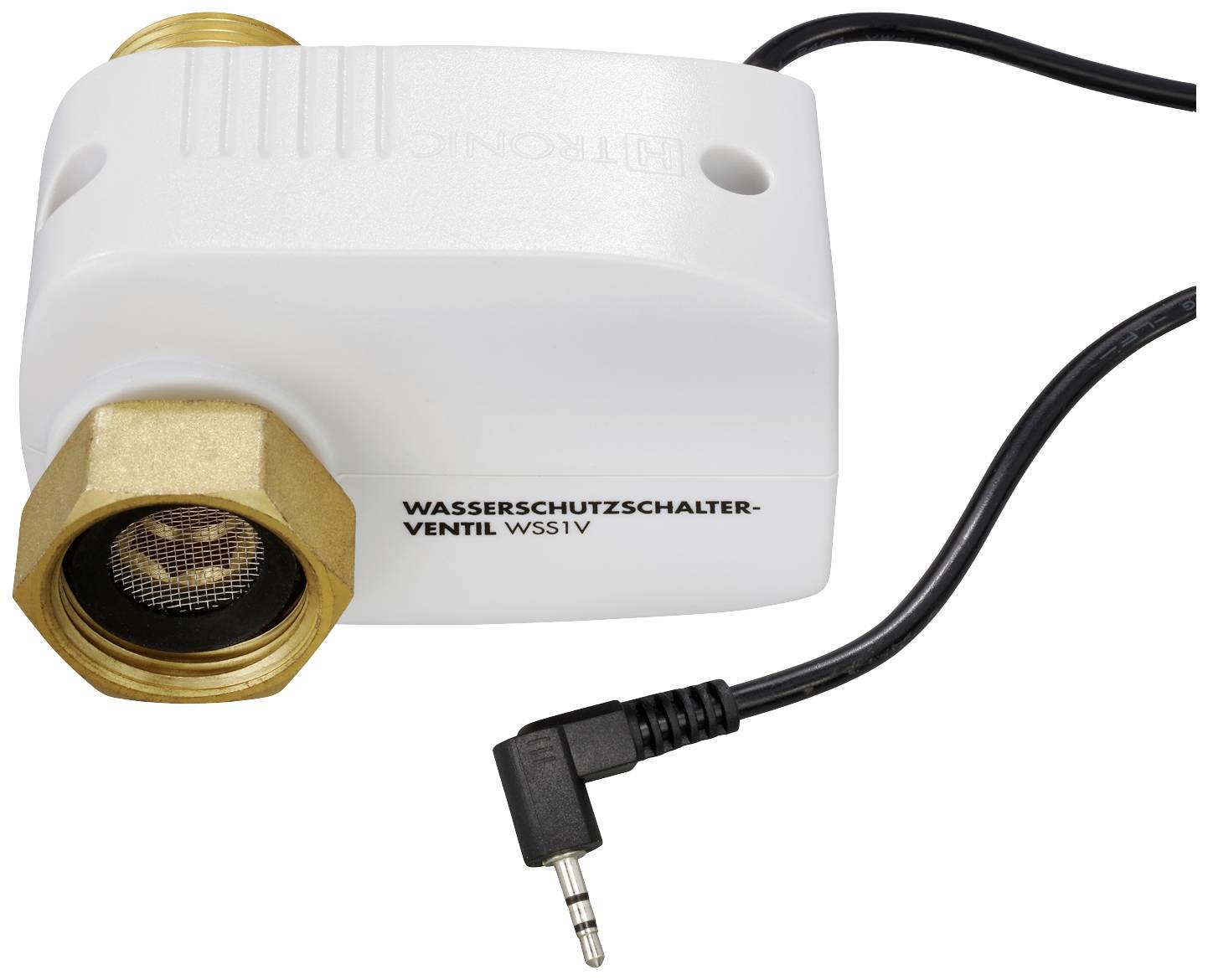

Water protection switch valve WS51V with cable and plug connector, primarily in a white housing with brass thread.

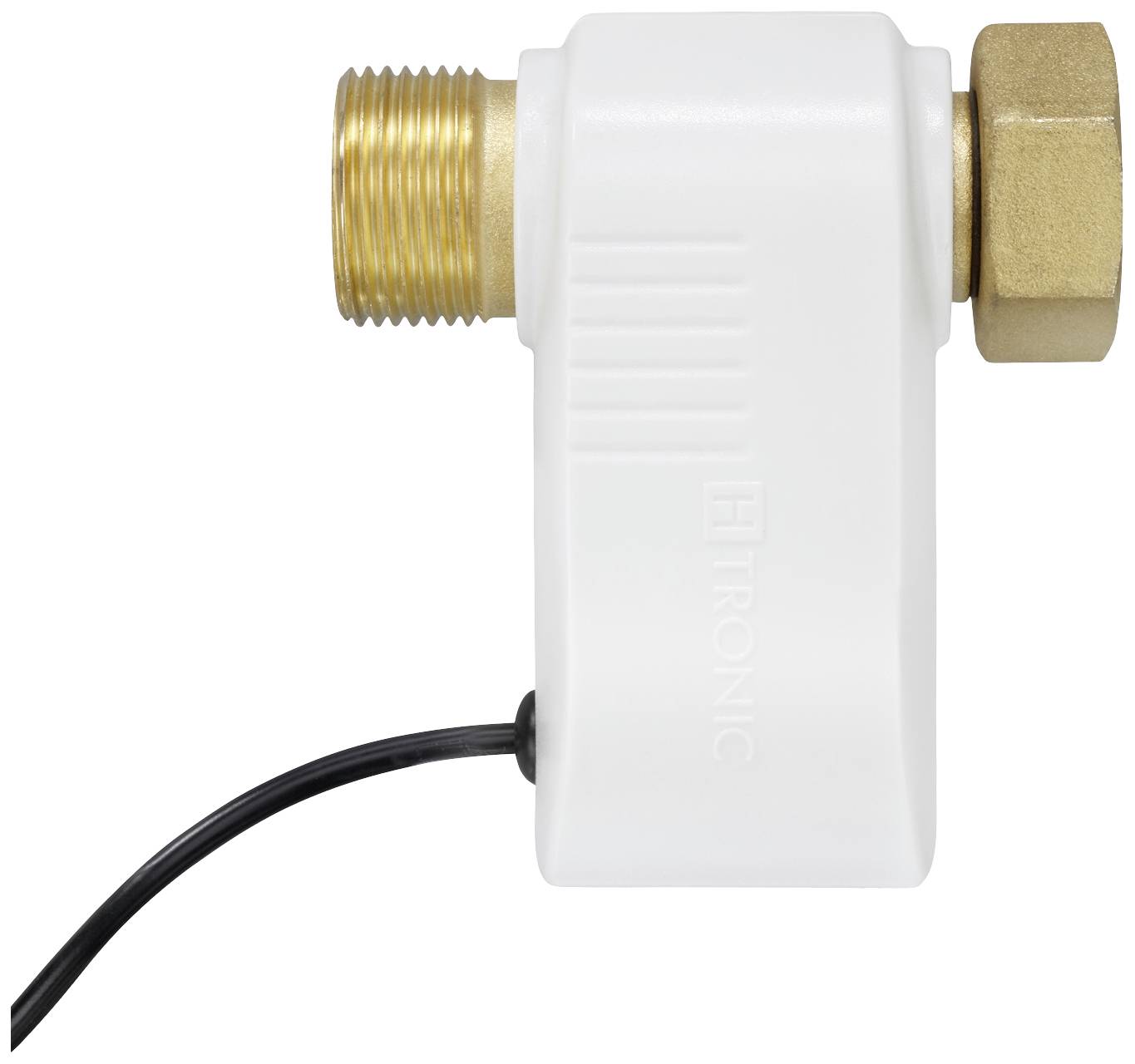

White electric valve with brass connections and black cable, side view.

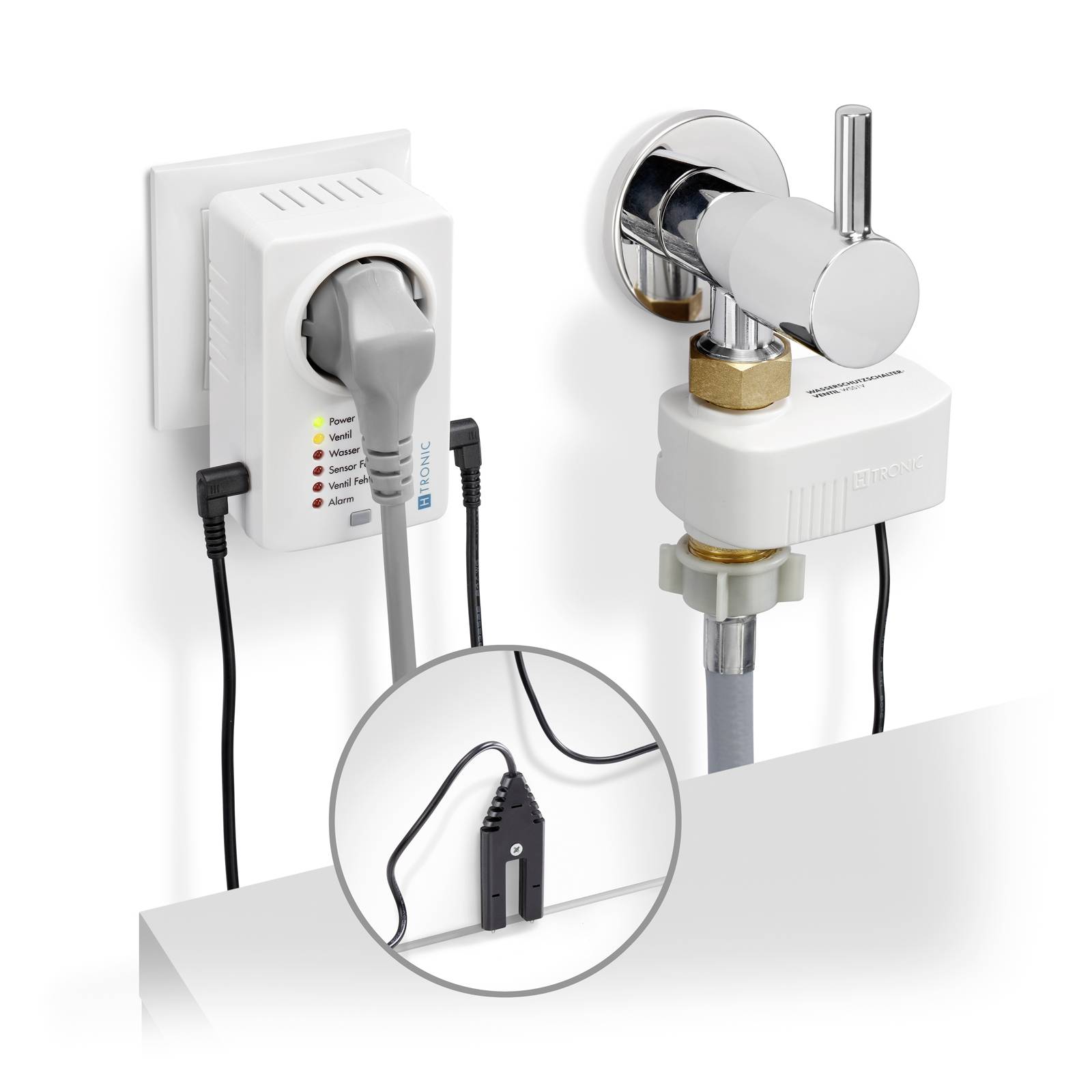

H-Tronic 1114725 WSS 1 Water leak detector incl. external sensor mains-powered, via mains outlet-7

An open dishwasher shows crockery. A water leak sensor from WSS is positioned to the right, advertised with 'For Your Safety'.

Washing machine with plants, next to the 'Water Guardian' WSS 1 and associated devices, presented on a blue background.

1/10

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

21 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 52.09 / piece)

€ 52.09

plus VAT.

Report legal concerns

Highlights & Details

Water-protection switch WSS 1

Water leaks are detected reliably by a water sensor
In the event of a fault, the power supply and water supply are interrupted
The water sensor and the solenoid valve are continuously monitored
Visual and acoustic alarming in case of a fault

Technical specifications

Ambient temperature: 0 ... +50 °C
Relative humidity: < 80%
Dimension WSS 1: 98 x 60 x 41 mm
Dimension WSS 1V:84 x 54 x 40 mm
Water sensor dimensions 75 x 30 x 8 mm
Weight WSS 1/WSS 1V/Water sensor 157/315/56 g
Operating voltage: 230 V AC Power consumption: Approx. 5.0 W
Power consumption (standby) max. approx. 0.5 W
Breaking capacity (resistive load): Max. 3680 W
Trigger sensitivity ≈100 kOhm
Protection class: IP20
Water sensor-connection 3.5 mm
Solenoid valve port 2.5 mm
Water connection G3/4
Cable lengths: Approx. 2 m

Product type: Water leak detector

Detector features: incl. external sensor

Operating voltage: 230 V

Power supply (LOV): mains-powered
via mains outlet

Sound pressure: 80 dB

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3098620 H-Tronic 1114725 WSS 1 Water leak detector incl. external sensor mains-powered, via mains outlet

User & Safety Instructions

User & Safety Instructions 3098620 H-Tronic 1114725 WSS 1 Water leak detector incl. external sensor mains-powered, via mains outlet

Description

Are you looking for reliable protection against water damages and the associated high renovation costs? Do you want to additionally protect your washing machine or dishwasher? Here's the solution! The water-protection switch WSS 1 detects leaks, alarms the user acoustically as well as optically over them and switches off the power as well as water supply.

Possible applications are: Detection of defects at washing machines, dishwashers or hot water heaters. Alarm for intruding flood water or additional protection for water level switches or float switches.
