Schabus 200370 SHT 8815 Active water sensor for digital inputs
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 42.01 / piece)
€ 55.45
-24 %
€ 42.01
plus VAT.
Technical specifications

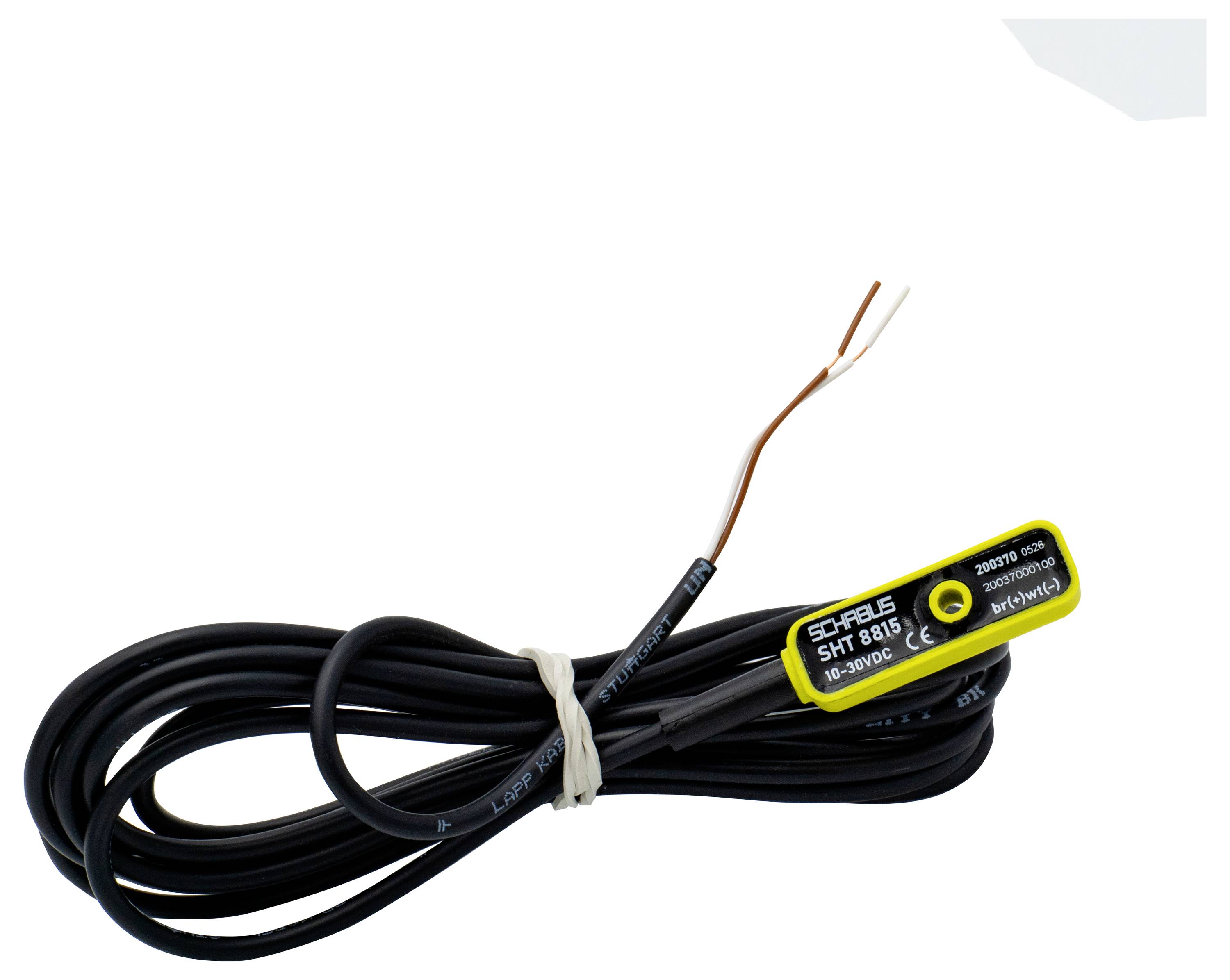

- Cable length: 2 m
- Cable: 2 x 0.14 square millimeter
- Material: Plastic, impact-resistant, tough-elastic
- Surface contacts: V4A / stainless steel
- Functional range: -15 degrees / + 50 degrees
- Pre-voltage of the control input: 12 V= to 40 V=
- Internal pull-up resistance of the control input: 10 kOhm to 100 kOhm
- Screw hole Ø 3.2 mm
- Product type
Active water sensor
- Detector features
for digital inputs
- Width
12 mm
- Height
10 mm
- Depth
34 mm
- Dim
(W x H x D) 12 x 10 x 34 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2239466 Schabus 200370 SHT 8815 Active water sensor for digital inputs
User & Safety Instructions
User & Safety Instructions 2239466 Schabus 200370 SHT 8815 Active water sensor for digital inputs
Conformity certificate
Conformity certificate 2239466 Schabus 200370 SHT 8815 Active water sensor for digital inputs
Description
Water sensor for digital inputs to PLC and other controls, corrosion-resistant casting for highest safety and durability, screw-on for floor mounting, compact, heavy design, tough-elastic, impact-resistant, conditional protection against accidental entry

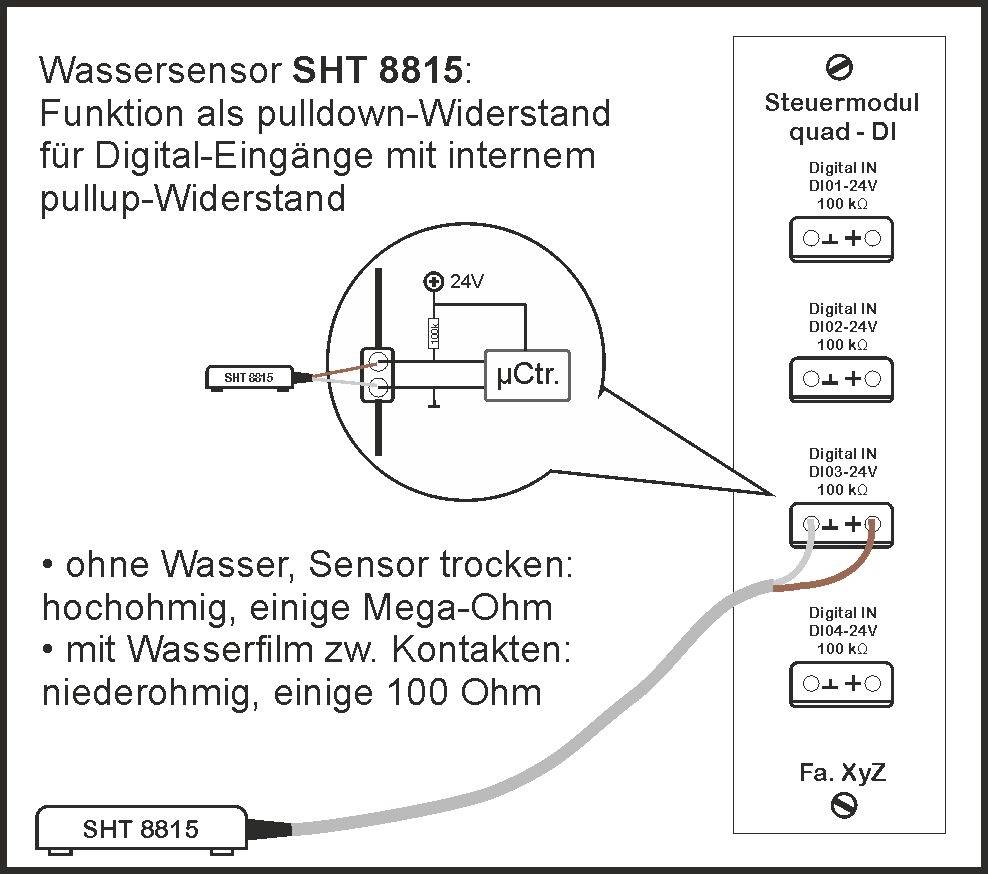

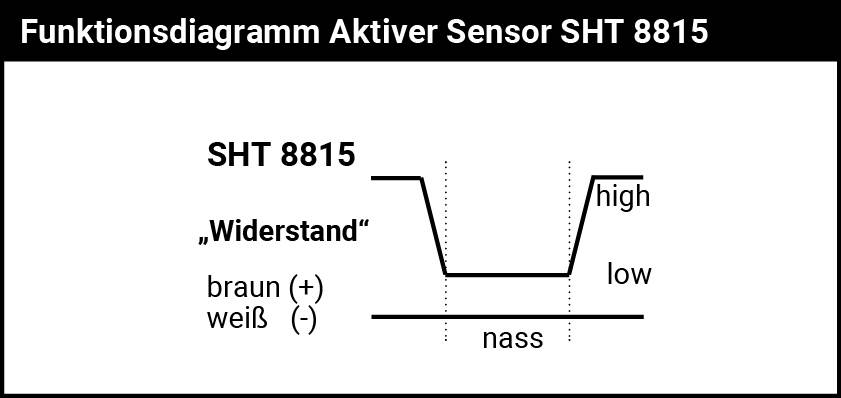

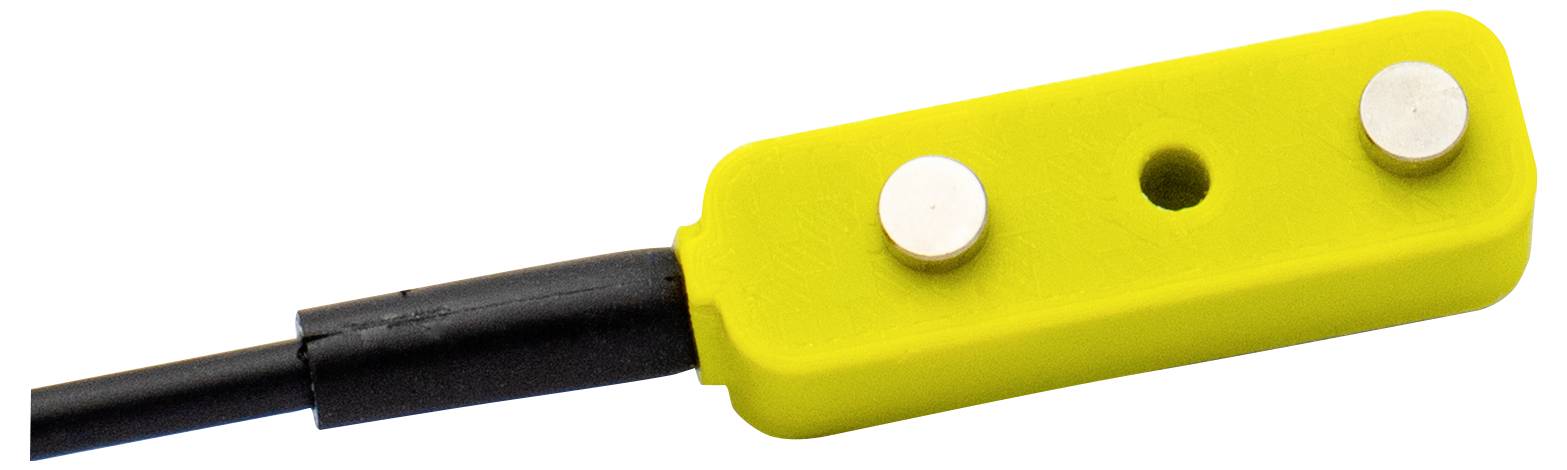

Sensor with two V4A metal contacts molded in plastic housing. As soon as water or another conductive liquid touches the two contacts, the resistance between the two wires decreases from a few mega-ohms to a few 100 ohms. This allows digital inputs of controllers with internal pull-up resistor to be triggered. The sensor cables can be easily extended, cross-section: 2 x 0.14 square millimeter.
The SHT 8815 water sensor is not suitable for connection to Schabus water detectors.
This text is machine translated.
Sensor with two V4A metal contacts molded in plastic housing. As soon as water or another conductive liquid touches the two contacts, the resistance between the two wires decreases from a few mega-ohms to a few 100 ohms. This allows digital inputs of controllers with internal pull-up resistor to be triggered. The sensor cables can be easily extended, cross-section: 2 x 0.14 square millimeter.
The SHT 8815 water sensor is not suitable for connection to Schabus water detectors.
