Buy Schneider Electric Cross-switch Asfora White (RAL 9003) EPH0570121D 1 pc(s)

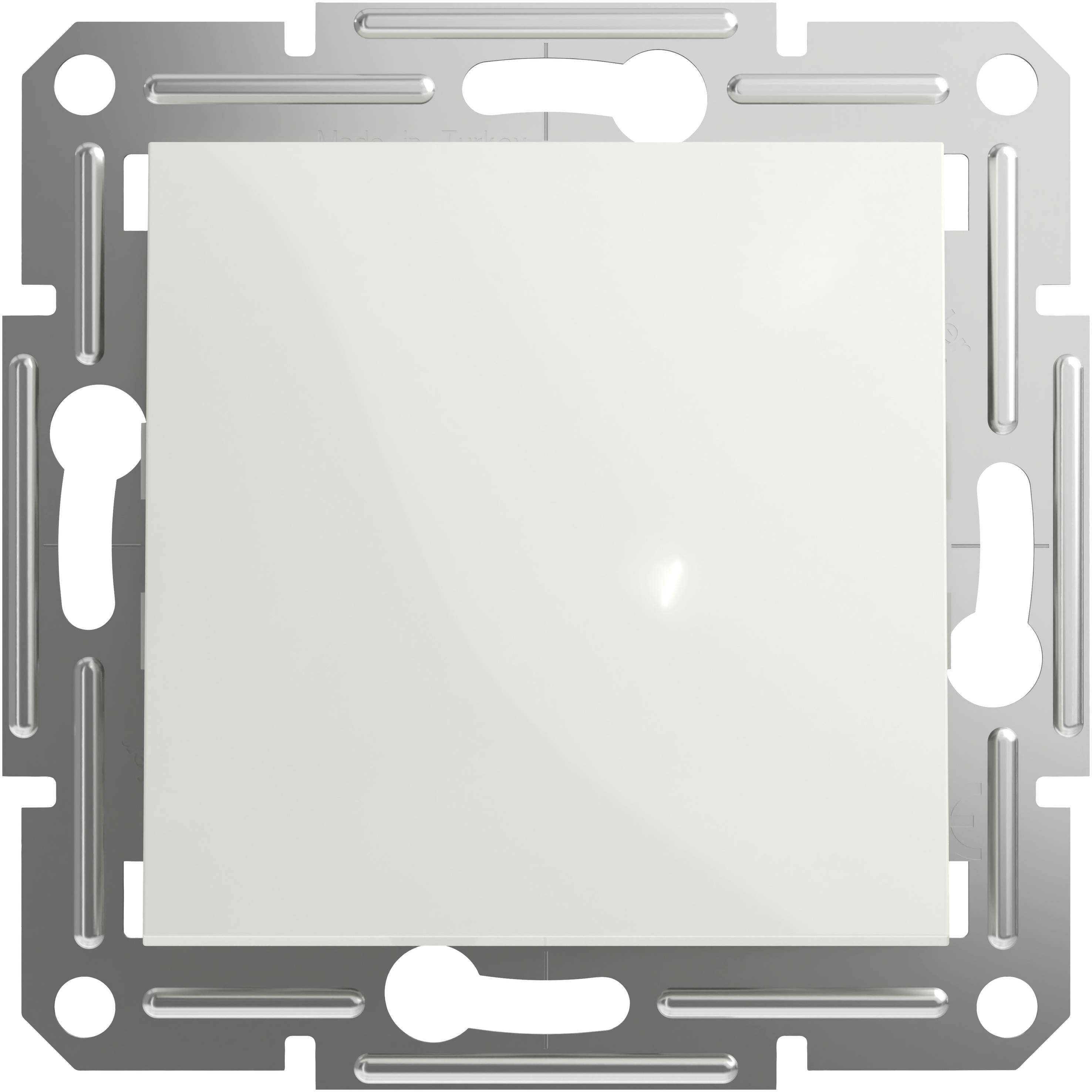

Light switch with metal frame, square and white, in neutral position.

A white light switch in a rectangular metal frame, manufactured in Turkey. The switch is centrally positioned.

A electrical light switch in close-up. The centre shows technical specifications: 'P162', '10AX 250V'. A metal frame surrounds the unit.

A white, rectangular socket unit with silver contact points. Shows the rear side and mounting mechanism.

Light switch module in a metal frame, marked with '10AX 250V'. Symbols and text for connection are visible.

Side view of a toggle switch in a housing, showing the internal mechanisms and mounting components.

Side view of a switch with detailed representation of the mechanism and anchoring.

A white-grey electrical component shown from the front, with visible metal and plastic elements.

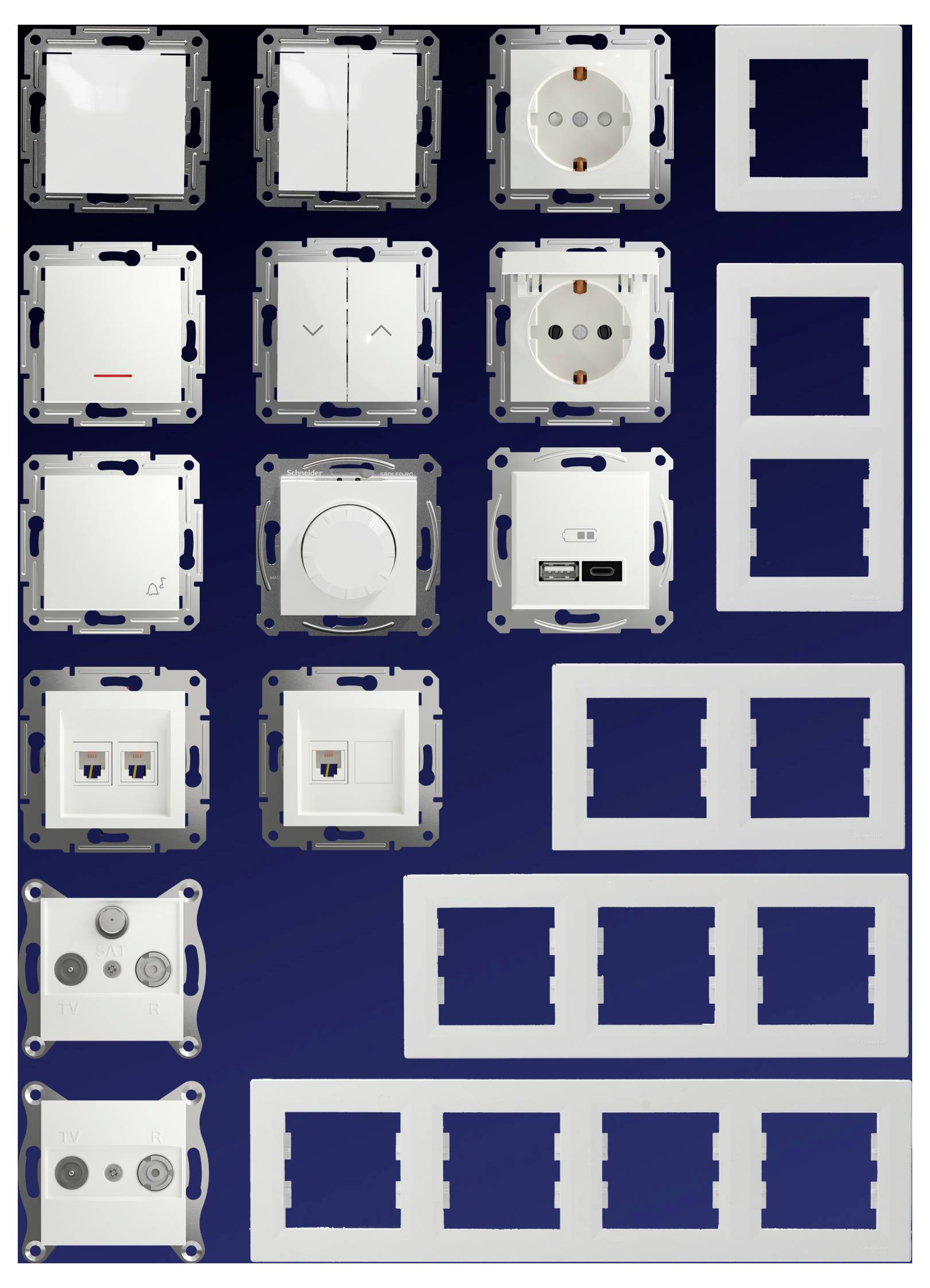

Assorted white wall switch and outlet faceplates arranged in a grid on a dark blue background, showing different electrical component configurations.

Two white wall plates: on the left a power socket, on the right a light switch. In the background, a table with a lamp in a modern room.

Asfora Switch Design: All the Functions You Need.

Simple installation of power sockets with just 2 components: insert and frame. Flexibly adaptable from single to quadruple socket.'

1/12

Datasheet (PDF)

Fast track dispatch on Fri, 4 Sep

331 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 3.18 / piece)

€ 3.18

plus VAT.

Report legal concerns

Highlights & Details

Schneider Electric ASFORA cross switch flush-mounted 10 AX- 250 V, plug-in terminals, white

Busch & Jaeger Switch Product Range

Technical specifications

Type: Schneider Electric ASFORA cross switch flush-mounted 10 AX- 250 V, plug-in terminals, white

Switch type function: Cross-switch

Product type: Switch product range

Type series: Asfora

Factory colour: White (RAL 9003)

Nominal voltage: 250 V AC

Nominal current: 10 A

Switching capacity: 2300 W

: IP20

Temperature range: -5 °C to 40°C °C

Content: 1 pc(s)

Material: ABS

VDE standard: 0632-1

Documents & Downloads

Datasheet

Datasheet 2997227 Schneider Electric Cross-switch Asfora White (RAL 9003) EPH0570121D 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2997227 Schneider Electric Cross-switch Asfora White (RAL 9003) EPH0570121D 1 pc(s)

Description

This Schneider Electric device is a cross switch 10 AX of the Asfora design line, screwless without frame in the color white. This is a cross switch. The device is fixed in place by screws or claws. Its operating voltage is 250 VAC and the nominal current is 10 AX. The power range of this device is 2300 W. This device allows a flush mounting. Dimensions are (W) 71 mm x (H) 71 mm x (D) 43 mm and the projection depth is 15 mm. It weighs 61.9 g. The color of this device is white (RAL 9003) with a glossy surface. It is made of ABS (acrylonitrile-butadiene-styrene). The operating temperature ranges from -5 °C to +40 °C. It achieves protection class IP20. Asfora includes elegant controls for switches and sockets, dimmer for indoor and area lighting, shutters and sockets for TV/R/SAT, power, data as well as USB. All Asfora products comply with the latest standards and are made of robust materials that can withstand everyday use for years. This device conforms to the standards IEC 60669-1, the quality label of CE, UKR and TSE, VDE, NF-certification.
Complete device consisting of flush-mounted insert with front-side cover (see product photo). Device is still to be supplemented with an Asfora frame (white).

This text is machine translated.

Scope of delivery

Complete device: Flush-mounting with front-side cover.

Hints

Safety relevant component - Only by skilled workers

System requirements

1-way frame, Asfora white: EPH5800121D
2-way frame, horizontal, Asfora white: EPH5800221D
3-way frame, horizontal, Asfora white: EPH5800321D
4-way frame, horizontal, Asfora white: EPH5800421D
2-way frame, vertical, Asfora white: EPH5810221D
3-way frame, vertical, Asfora white: EPH5810321D
Blind cover, Asfora white: EPH5670121D
