Schneider Electric LVS04162 LVS04162 Busbar Copper 1000 mm 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Busbar
Length
1000 mm
Width
20 mm
Material
Copper
Datasheet (PDF)
Number
Total (1 m = € 130.24)
€ 130.24
plus VAT.
Technical specifications
- Packaging type
Piece
- Product type
Busbar
- Material
Copper
- Length
1000 mm
- Width
20 mm
- Height
5 mm
- Dim
(L x W x H) 1000 x 20 x 5 mm
- Content
1 pc(s)
- Type
LVS04162
20
Flat
5 mm
Untreated
1000 m
250 A
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2936387 Schneider Electric LVS04162 LVS04162 Busbar Copper 1000 mm 1 pc(s) Piece
Datasheet 2936387 Schneider Electric LVS04162 LVS04162 Busbar Copper 1000 mm 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2936387 Schneider Electric LVS04162 LVS04162 Busbar Copper 1000 mm 1 pc(s) Piece
Information
Information 2936387 Schneider Electric LVS04162 LVS04162 Busbar Copper 1000 mm 1 pc(s) Piece
Information 2936387 Schneider Electric LVS04162 LVS04162 Busbar Copper 1000 mm 1 pc(s) Piece
Description

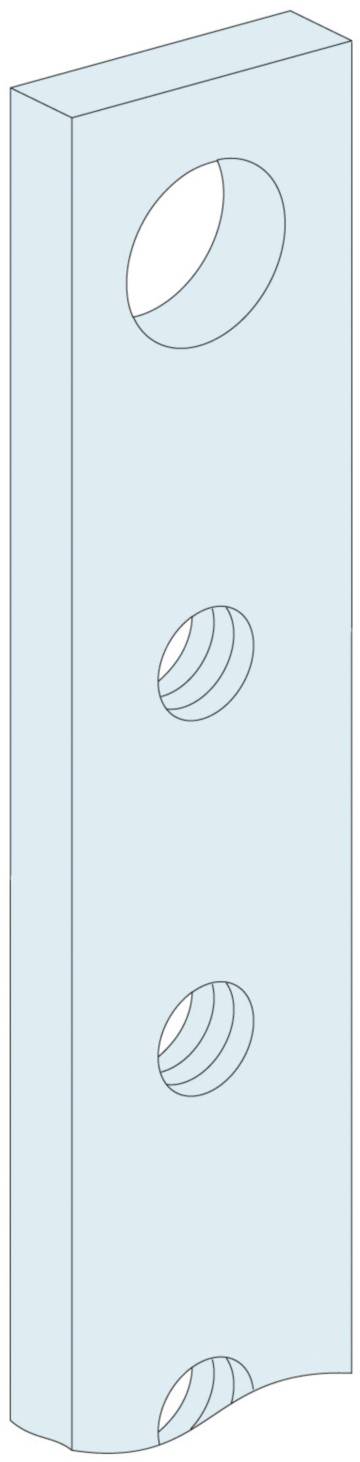

PrismaSet P. Linergy BS 4-pin, rear-side vertical copper busbar for 250 A with a rail size of 20 x 5 mm, with threaded holes M6 at 25 mm intervals, with a rated surge resistance (Ipk) 40 kA. Rated insulation voltage (UI) 1000 V AC, rated short-time current (ICC) 150 kA. Or 4-pole multi-stage vertical copper busbar for 250 A with a rail size of 20 x 5 mm, with threaded holes M6 at 25 mm intervals. With a rated surge current (Ipk) 40 kA, rated insulation voltage (UI) 750 V AC, rated short-time current (ICC) 150 kA, and a length of 1000 mm.
