Buy Schneider Electric Series switch Asfora White (RAL 9003) EPH0370121D 1 pc(s)

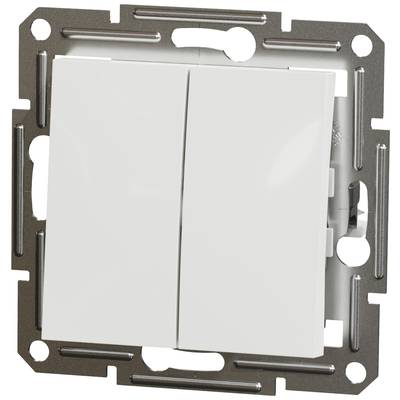

Two switches in a metal frame for wall mounting.

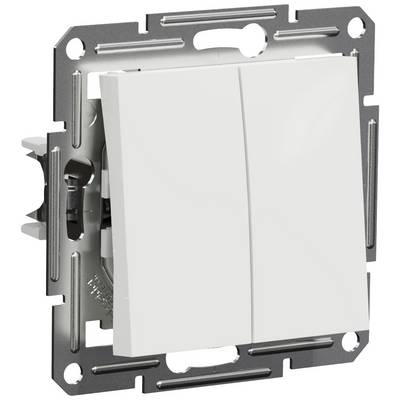

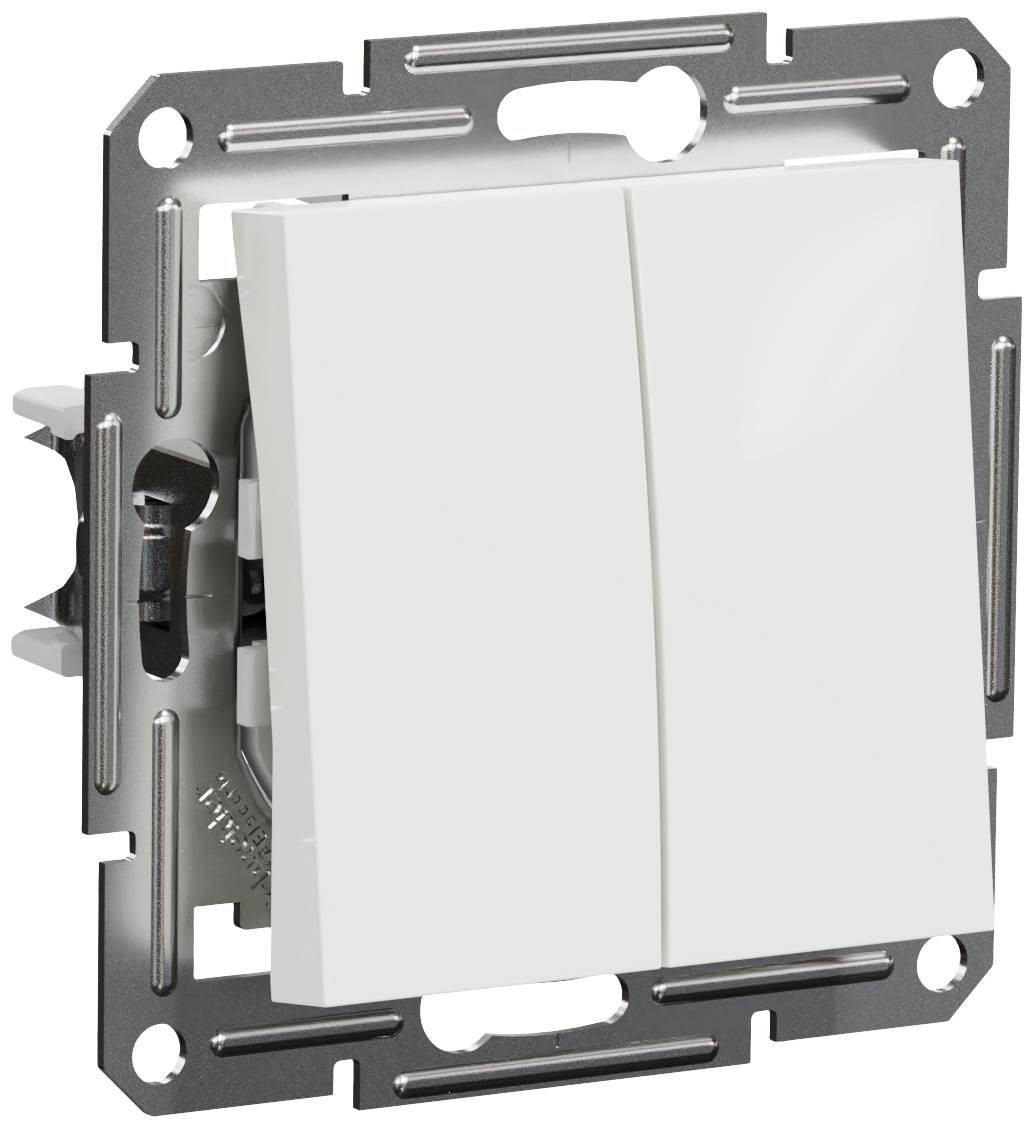

A double light switch with a metal frame, suitable for flush mounting. Simple, white surface.

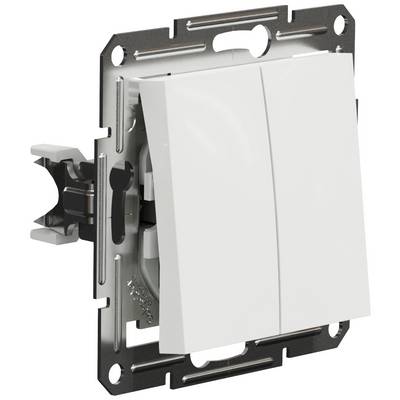

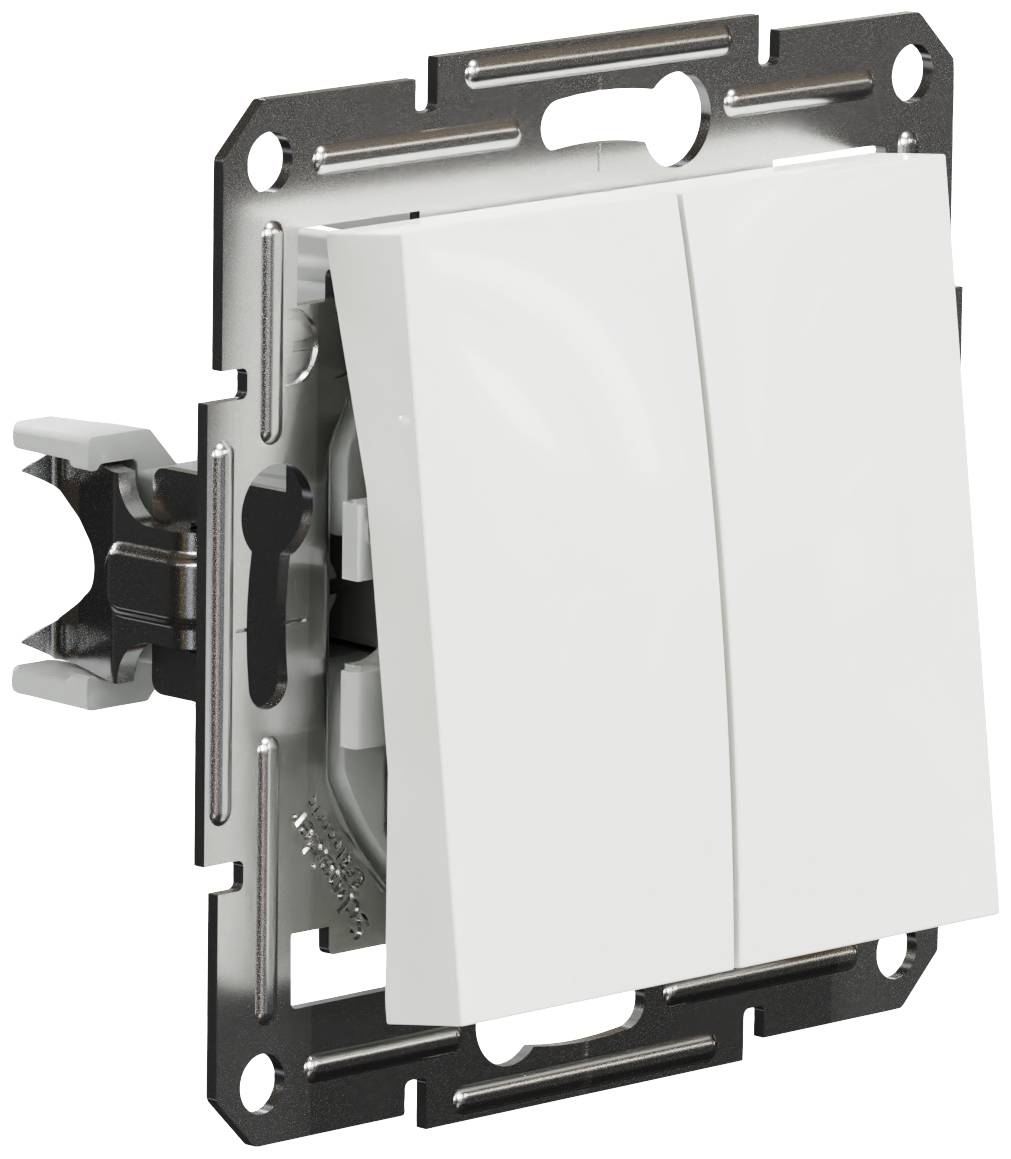

A white double light switch is mounted on a metallic bracket, ready for installation in a wall.

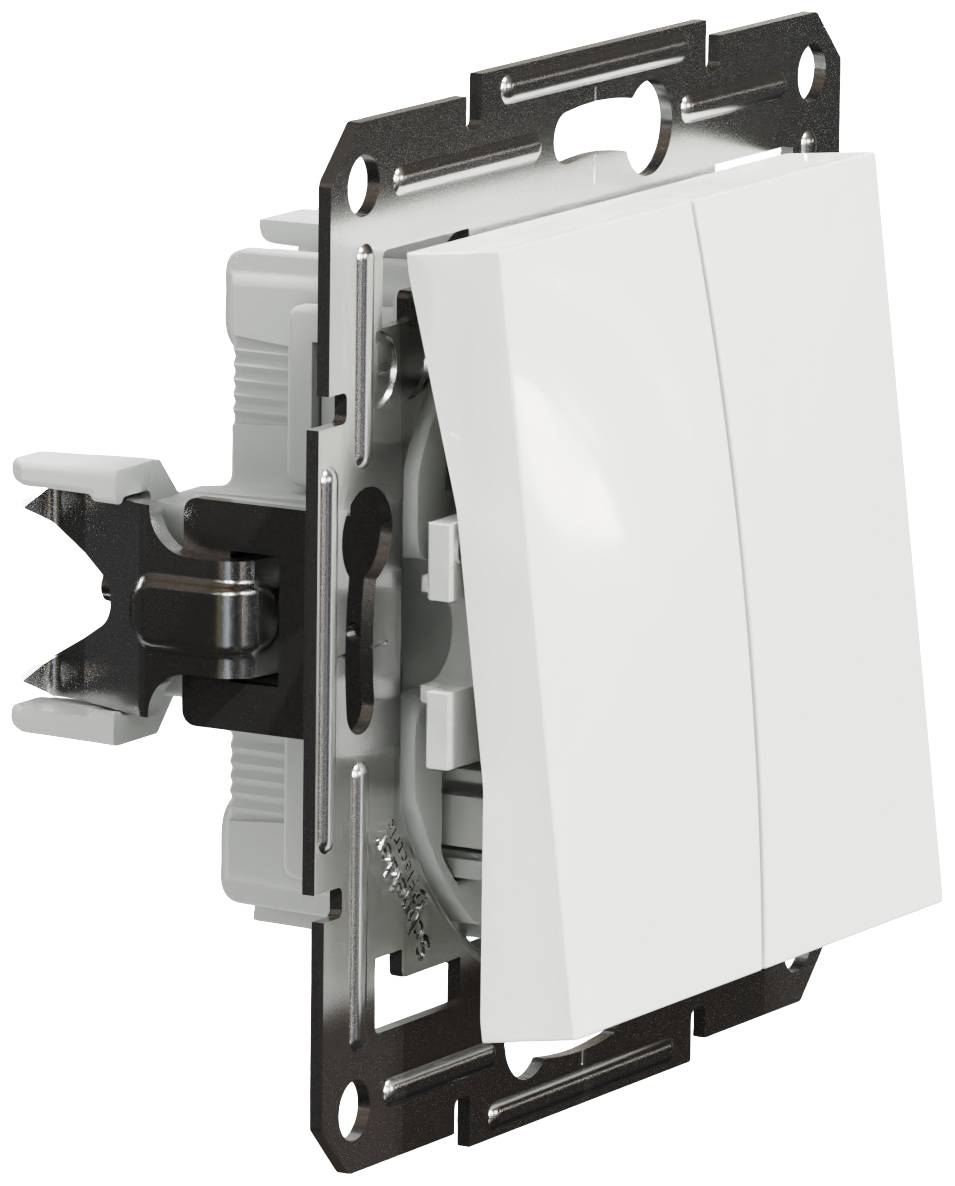

Double switch with removed frame, showing white lever mechanism and black mounting bracket on silver metal base.

Light switch in side view with metallic frame and white switch, showing internal structure and mechanism.

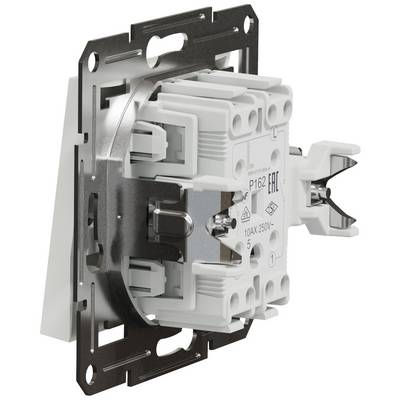

A white electric wall switch in a metal frame. Suitable for 10AX, 250V, ensures connection and interruption of electrical circuits.

Side view of a wall switch in mounted position shows the internal structure and wiring components.

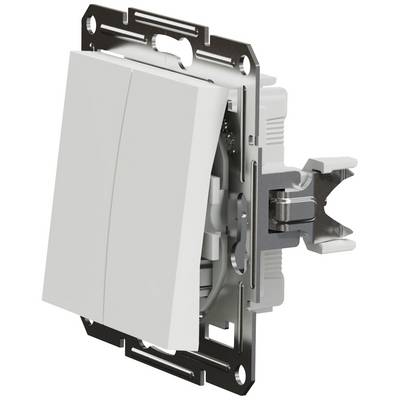

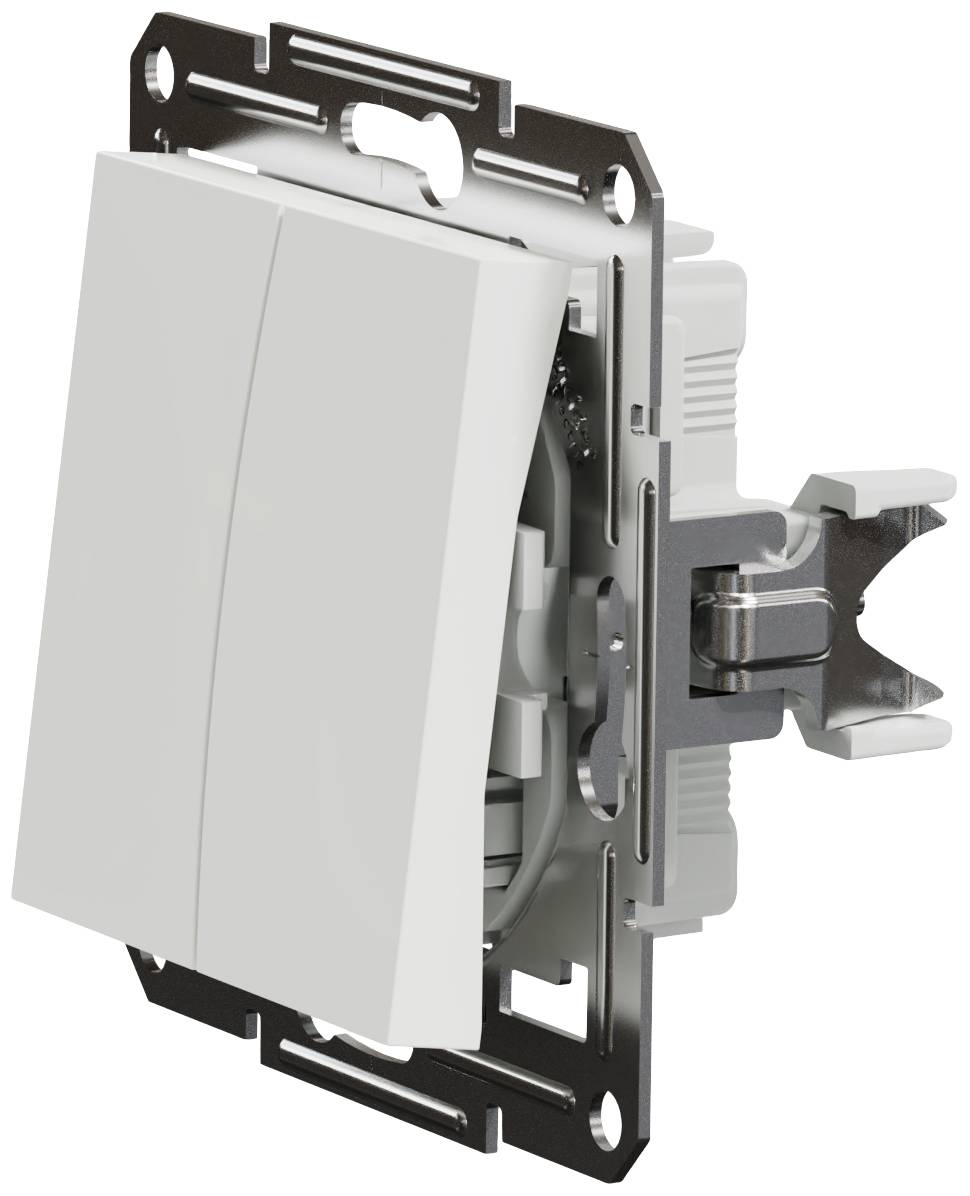

A double light switch with a white casing, mounted on a metal frame for installation in the wall.

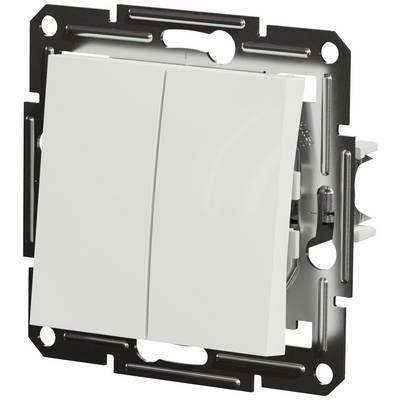

Light switch viewed from close up with two white toggle switches mounted on a metallic mounting plate.

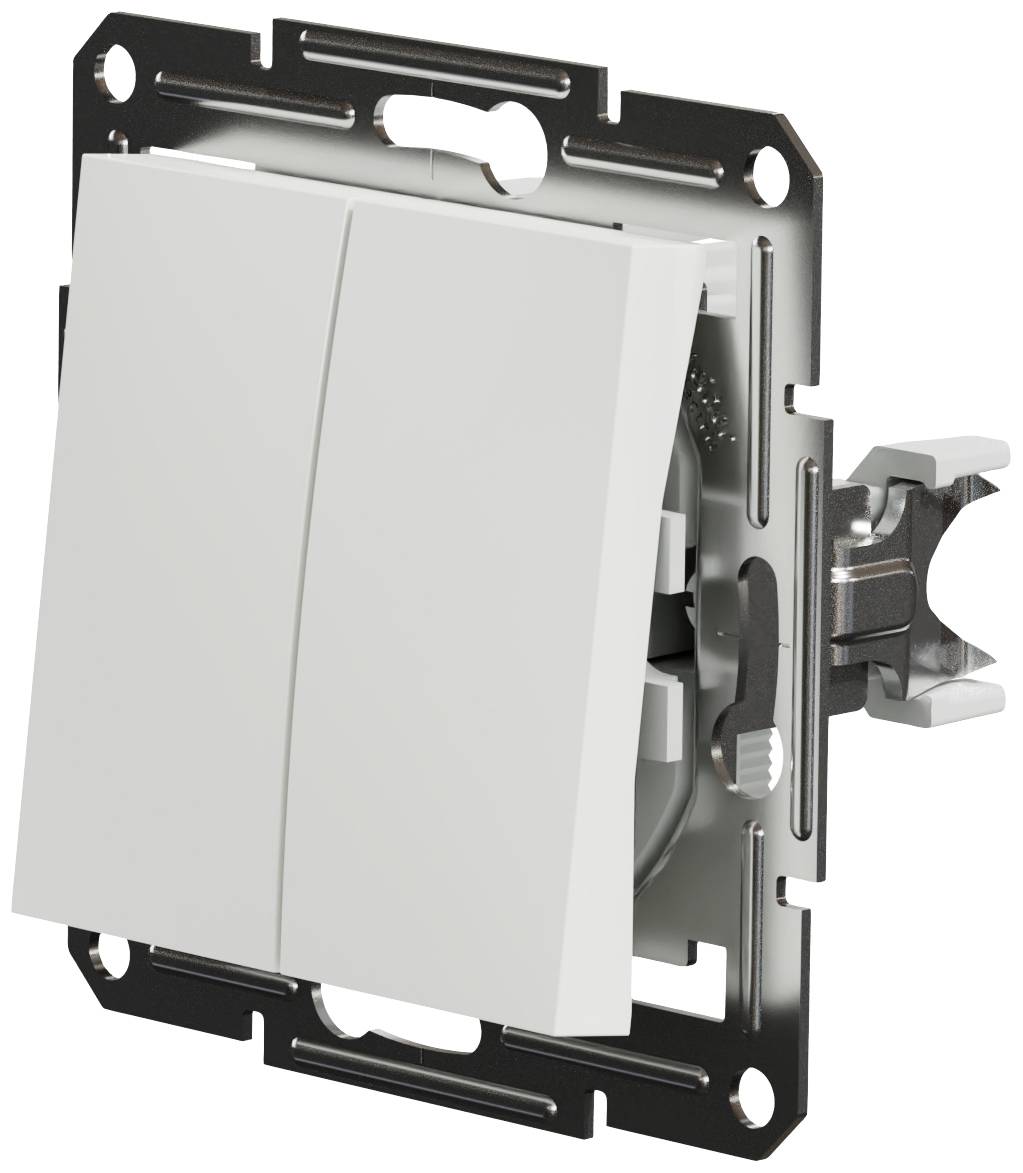

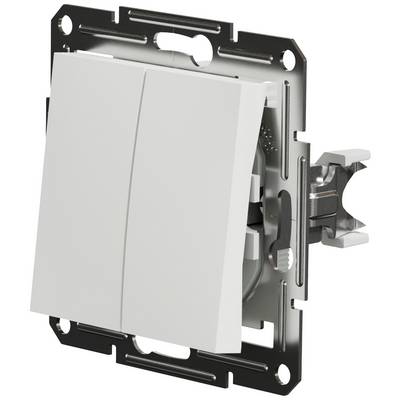

Double switch in a metal mounting, photographed at an angle from the side, showing two adjacent rockers.

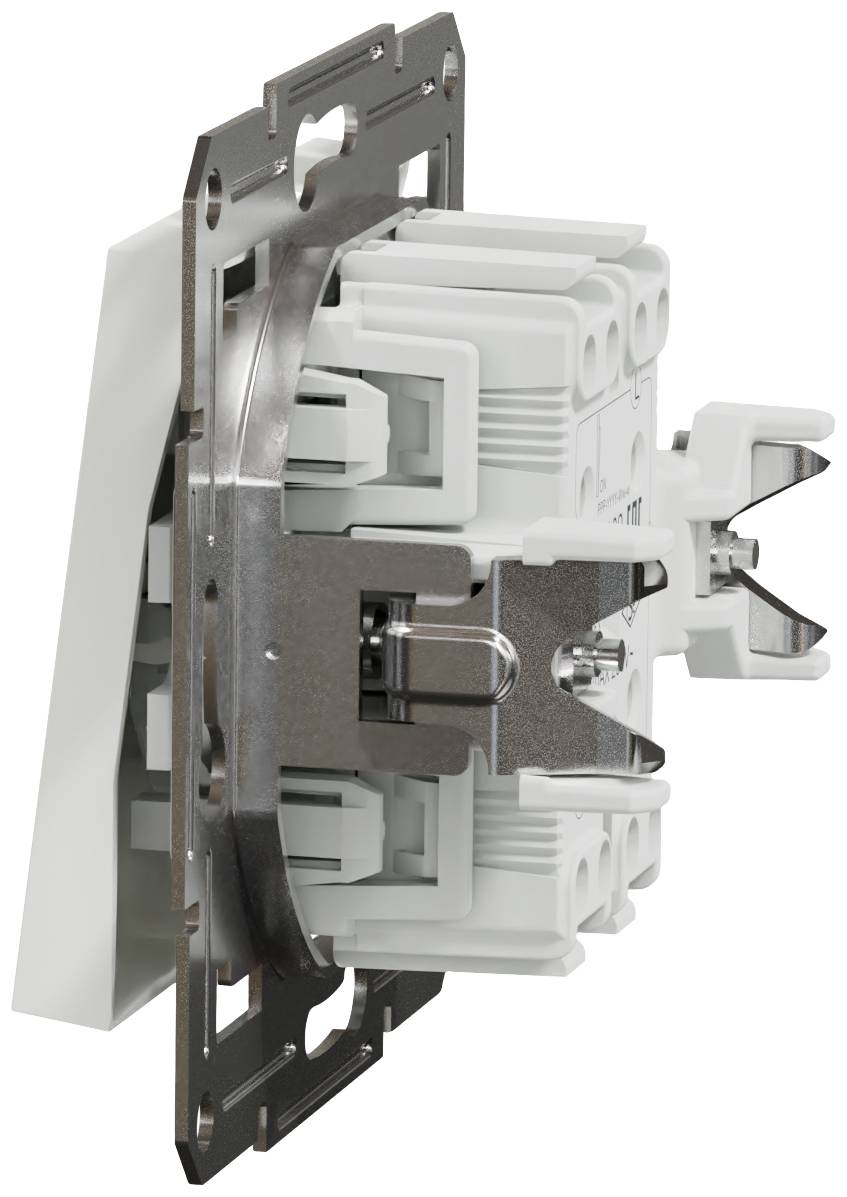

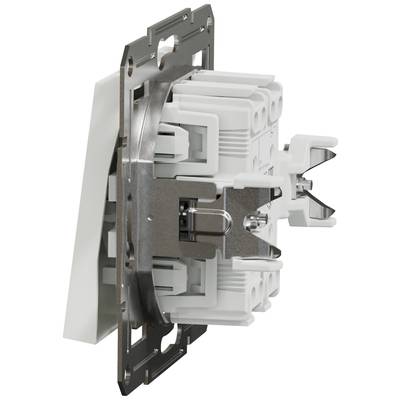

Electric light switch viewed from the side. Shows the internal structure with metal mounting and plastic components.

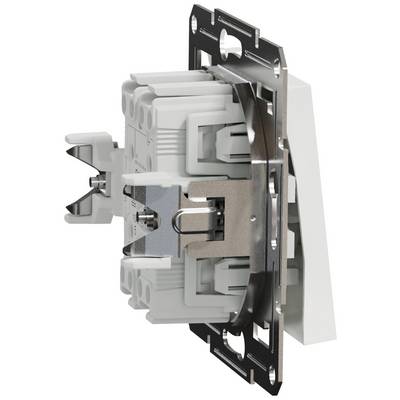

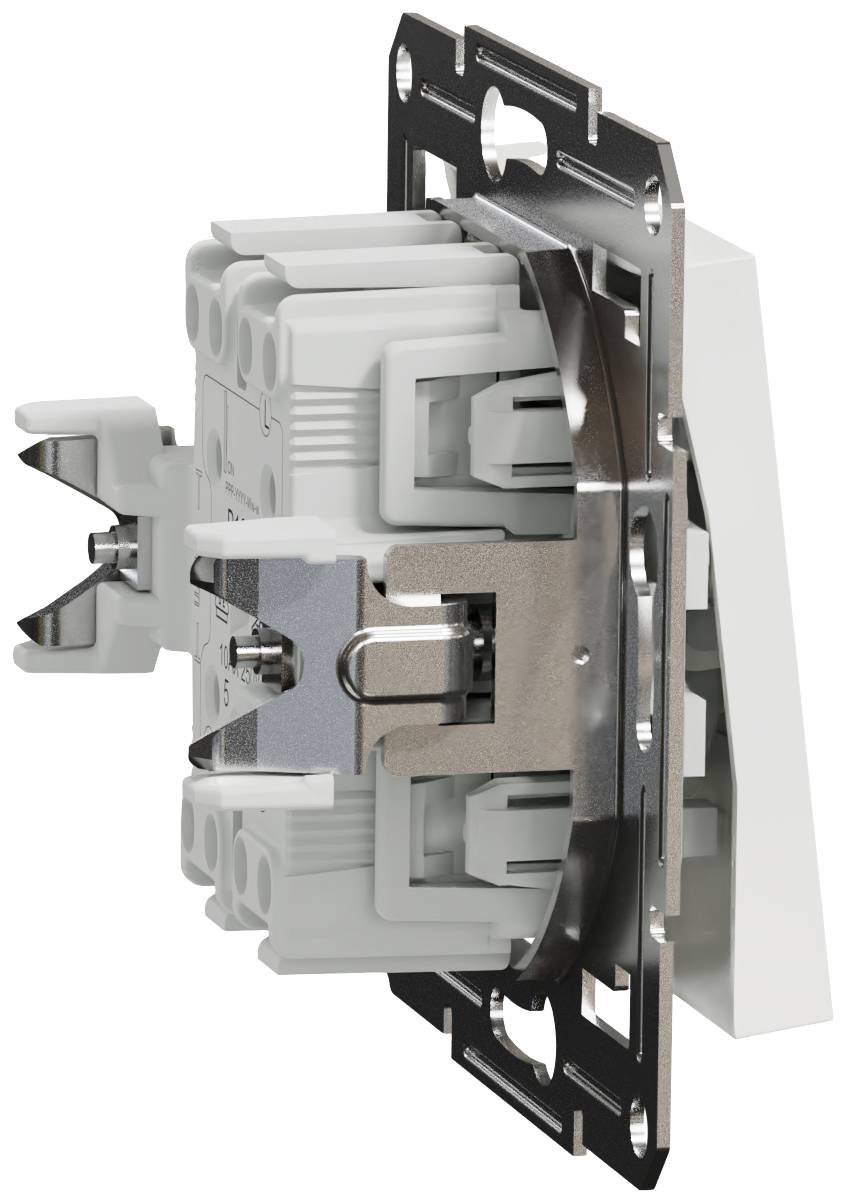

A light switch viewed from the side, showing the mounting mechanism and electrical connection structure.

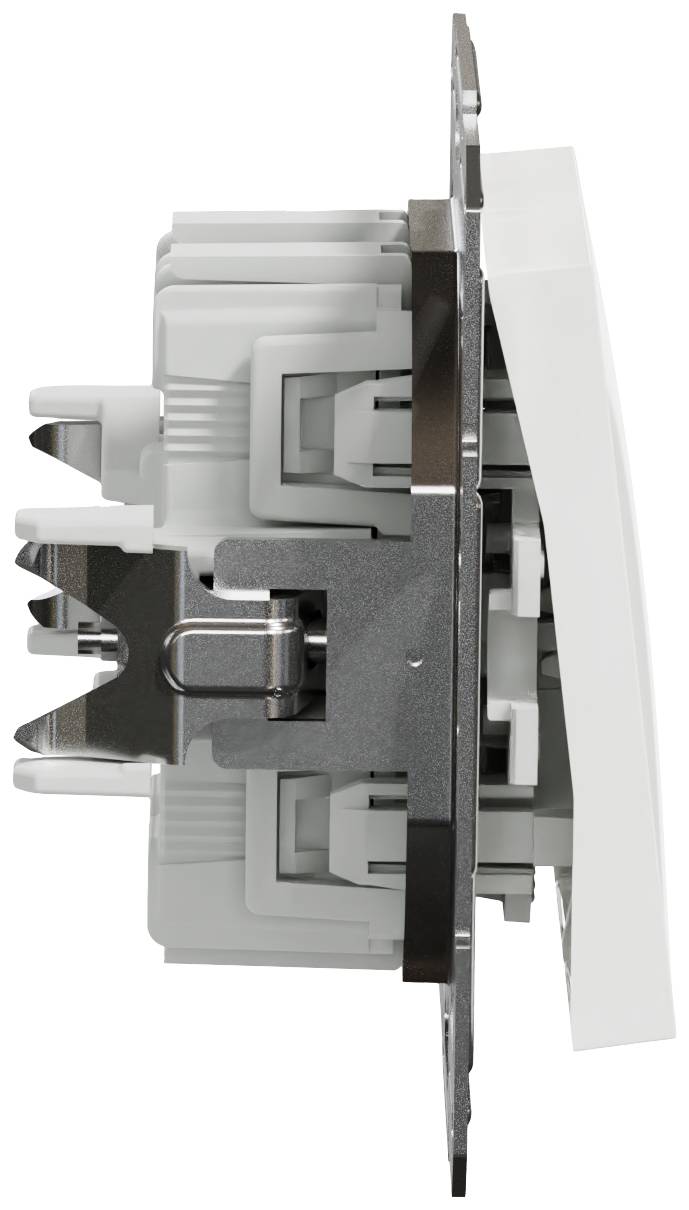

Side view of a white light switch module with grey plastic and metal components, showing mounting mechanisms.

On a desk, there is an illuminated desk lamp, next to a power socket and a switch in a wooden-framed setting.

A man and a woman are standing smiling next to a row of Asfora switches and sockets. Text: 'Asfora Switch Design: All the functions you need.'

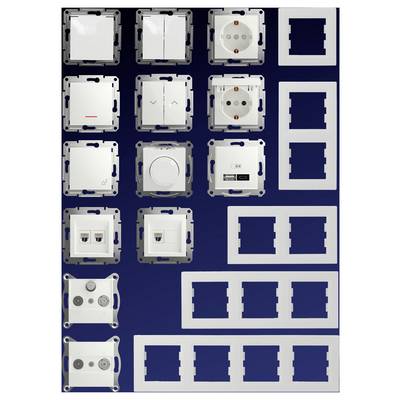

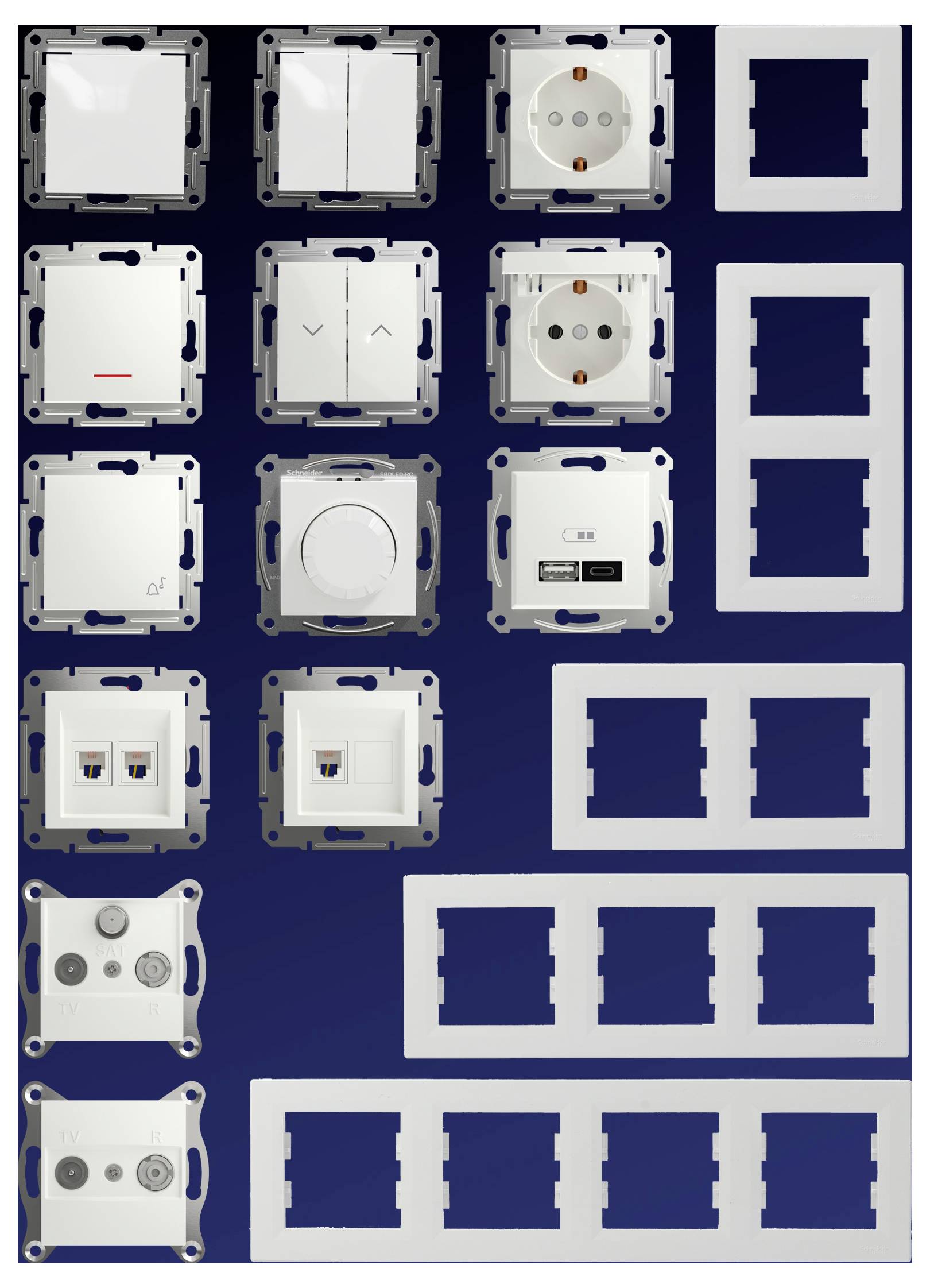

'Simple system with two components: Insert and frame, single to quadruple selection. Text: Simple selection.'

1/17

Datasheet (PDF)

349 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 1.67 / piece)

€

Report legal concerns

Highlights & Details

Schneider Electric Series switch Asfora White (RAL 9003) EPH0370121D 1 pc(s)

Busch & Jaeger Switch Product Range

Technical specifications

Type: Schneider Electric Series switch Asfora White (RAL 9003) EPH0370121D 1 pc(s)

Switch type function: Series switch

Product type: Switch product range

Type series: Asfora

Factory colour: White (RAL 9003)

Nominal voltage: 250 V AC

Nominal current: 10 A

Switching capacity: 2300 W

: IP20

Temperature range: -5 °C to 40°C °C

Dim

Content: 1 pc(s)

Material: ABS

VDE standard: 0632-1

Documents & Downloads

Datasheet

Datasheet 2997225 Schneider Electric Series switch Asfora White (RAL 9003) EPH0370121D 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2997225 Schneider Electric Series switch Asfora White (RAL 9003) EPH0370121D 1 pc(s)

Description

This Schneider Electric device is a series switch 10 AX of the Asfora design line, screwless without frame in the color white. This is a 1-pin series switch without frame. The device is fixed in place by screws or claws. Its operating voltage is 25VAC and the nominal current is 1AX. The power range of this device is 2300 W. This device allows a flush mounting. The dimensions are (W) 7mm x (H) 7mm x (T) 4mm and the projection depth is 1mm. It weighs 60.45 g. The color of this device is white (RAL 9003) with a glossy surface. It is made of ABS (acrylonitrile-butadiene-styrene). The operating temperature ranges from -°C to +4°C. It achieves protection class IP20. Asfora includes elegant controls for switches and sockets, dimmer for indoor and area lighting, shutters and sockets for TV/R/SAT, power, data as well as USB. All Asfora products comply with the latest standards and are made of robust materials that can withstand everyday use for years. This device conforms to the standards IEC 60669-1, the quality label of CE, UKR and TSE, VDE, NF-certification.
Complete device consisting of flush-mounted insert with front-side cover (see product photo). Device is still to be supplemented with an Asfora frame (white).

This text is machine translated.

Scope of delivery

Complete device: Flush-mounting with front-side cover.

Hints

Safety relevant component - Only by skilled workers

System requirements

1-way frame, Asfora white: EPH5800121D
2-way frame, horizontal, Asfora white: EPH5800221D
3-way frame, horizontal, Asfora white: EPH5800321D
4-way frame, horizontal, Asfora white: EPH5800421D
2-way frame, vertical, Asfora white: EPH5810221D
3-way frame, vertical, Asfora white: EPH5810321D
Blind cover, Asfora white: EPH5670121D
