ElectromechanicsFusesMicro Fuses

Schurter 0034.5620.11 0034.5620.11 SMD fuse (Ø x L) 5.2 mm x 20.00 mm 2.00 A 250 V AC Time delay -T- Content 1 pc(s) Bul

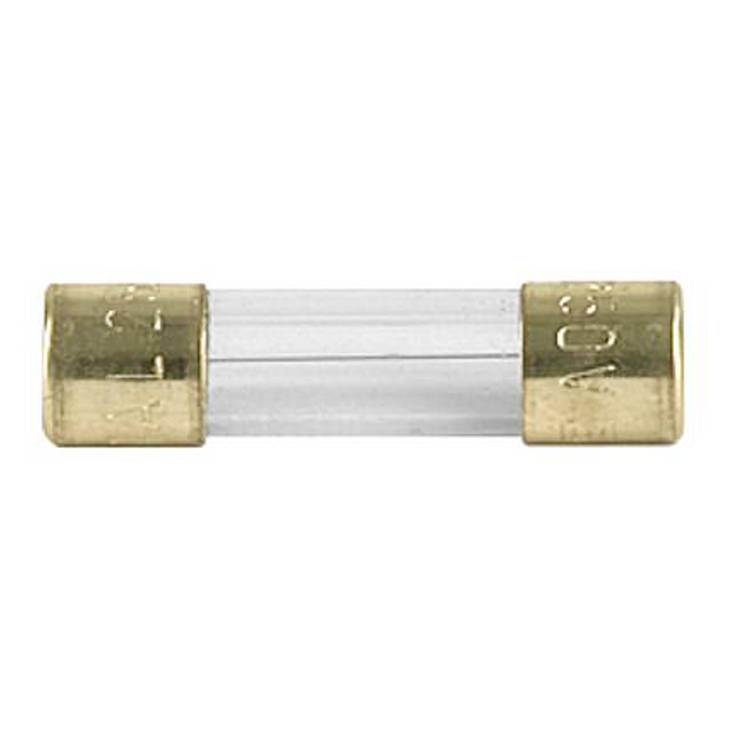

Glass fuse with metal end caps, suitable for protecting electrical devices by interrupting the circuit during overcurrent.
Image similar
Packaging type
Bulk
Product type
SMD fuse
Nominal voltage
250 V AC
Nominal current - rounded value
2 A
Release characteristics
Time delay -T-
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
23 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 1.79 / piece)
€ 1.79
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Series SMD-FST
  • Dimensions: Length 20 mm
  • Nominal voltage at 50 Hz/250 V AC
  • Nominal current 2 A
  • Approvals CE, VDE, cULus, CCC
  • Trigger time: Slow-blow
  • Contact material: Gold-plated copper alloy
  • Applications: Primary protection on SMD-conducting boards
  • Casing material: Glass
  • SMD connection type
  • Material: Gold-plated copper alloy
  • Diameter 5.2 mm
  • Weight: 1.05 g
  • Min. Operating temperature range -55 °C.
  • Operating temperature range, max. 125 °C.
  • Climate category IEC 55/125/21
  • Melting Integral: 16 A²/s.
  • Rated breaking capacity 35 A.
  • NOMINAL VOLTAGE V AC 250 V AC
  • Voltage drop 150 mV
  • Loss rating, max. 1,600 mW
  • Soldibility 245 °C / 30 s
  • IEC 60127-2 standard
Packaging type

Bulk

Product type

SMD fuse

Nominal voltage

250 V AC

Dim

(Ø x L) 5.2 mm x 20.00 mm

Nominal current

2.00 A

Nominal current - rounded value

2 A

Switch-off capacity

35 A

Release characteristics

Time delay -T-

Length

20.00 mm

(Ø)

5.2 mm

Certification marks

IEC 60127-2

Content

1 pc(s)

RoHS-compliant

Yes

Type

0034.5620.11

Documents & Downloads

Datasheet

Datasheet 3306235 Schurter 0034.5620.11 0034.5620.11 SMD fuse (Ø x L) 5.2 mm x 20.00 mm 2.00 A 250 V AC Time delay -T- Content 1 pc(s) Bul

User & Safety Instructions

User & Safety Instructions 3306235 Schurter 0034.5620.11 0034.5620.11 SMD fuse (Ø x L) 5.2 mm x 20.00 mm 2.00 A 250 V AC Time delay -T- Content 1 pc(s) Bul

Description

SMD fuse
slow-blow
L = low breaking capacity
Loose goods
