Buy Schurter 3403.0173.11 3403.0173.11 SMD fuse 5.00 A 125 V DC Time delay -T- Content 1 pc(s) | Conrad Electronic | Conrad COM

There is a Conrad shop in your region. You can shop in your own language, have access to your local customer service and enjoy local transport for your purchase.

Go to local shop

Conrad
To search for the product, enter a catchphrase, an article number, an EAN or a part number
My account

Log in / Register
Shopping cart

Subscribe to the newsletter and receive a €5 voucher Subscribe to the newsletter and receive a €5 voucher
Procurement

Order & eProcurement

All order and procurement services
Services

All Services
Offers %

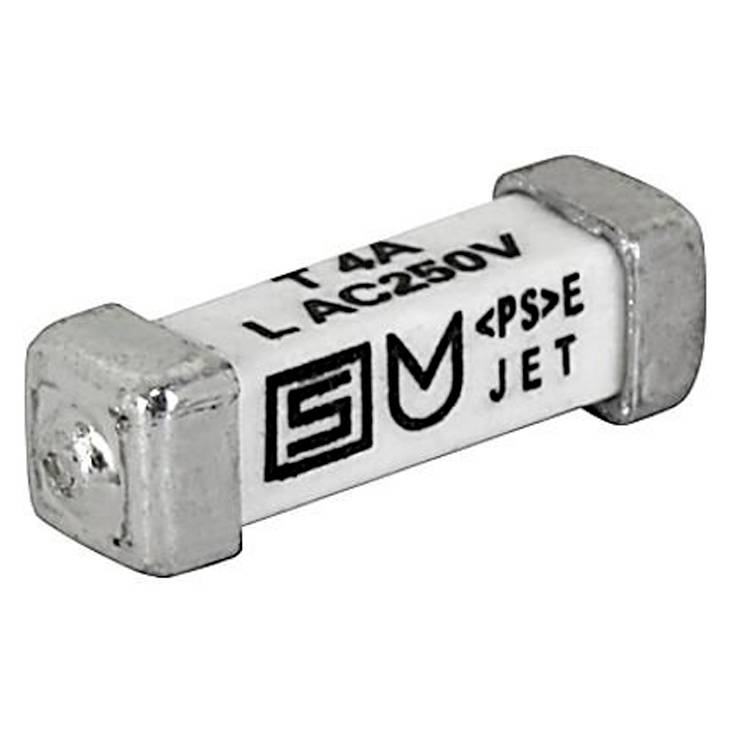

A cylindrical fuse insert with metal caps, labelled 'T4A LAC250V', lies horizontally.

A cylindrical fuse insert with metal caps, labelled 'T4A LAC250V', lies horizontally.

Image similar

Product type

SMD fuse

Nominal voltage

125 V DC

Nominal current - rounded value

5 A

Release characteristics

Time delay -T-

Length

10.10 mm

Datasheet (PDF)

Schurter

Fast track dispatch on Thu 15 Oct

10 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1.49 / piece)

€ 1.49

incl. VAT

Only 10 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Series UMT250
Dimensions: Length 10.1 mm
Dimensions: Width 3 mm
Dimensions: Height 3 mm
Nominal voltage at 50/60Hz 125 V DC
Nominal current 5 A
Approvals CE, VDE, cULus, METI, KTL, CQC
Trigger time: Slow-blow
Contact material: Tin-plated copper alloy
Applications: As primary protection on SMD circuit boards|suitable for pulsed continuous currents
Casing material: Ceramic
SMD connection type
Material: Copper alloy, tin plated
Weight: 0.23 g
Min. Operating temperature range -55 °C.
Operating temperature range, max. 125 °C.
Climate category IEC 55/125/21
Melting Integral: 38 A²/s.
Rated breaking capacity 100 A.
NOMINAL VOLTAGE V AC 250 V AC
Voltage drop 300 mV
Loss rating, max. 2,500 mW
Soldibility 245 °C / 30 s
IEC 60127-4 standard

Product type: SMD fuse

Nominal voltage: 125 V DC

Nominal current: 5.00 A

Nominal current - rounded value: 5 A

Switch-off capacity: 100 A

Release characteristics: Time delay -T-

Fuse layout: Ceramic tube

Length: 10.10 mm

Certification marks: IEC 60127-4

Content: 1 pc(s)

RoHS-compliant: Yes

Type: 3403.0173.11

Documents & Downloads

Datasheet

Datasheet 3306274 Schurter 3403.0173.11 3403.0173.11 SMD fuse 5.00 A 125 V DC Time delay -T- Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3306274 Schurter 3403.0173.11 3403.0173.11 SMD fuse 5.00 A 125 V DC Time delay -T- Content 1 pc(s)

Description

SMD fuse
slow-blow
High breaking capacity of 200 A @ 250 V AC (IEC)
UL approval for 277V AC and 250V DC
Loose goods

This text is machine translated.

Description

SMD fuse
slow-blow
High breaking capacity of 200 A @ 250 V AC (IEC)
UL approval for 277V AC and 250V DC
Loose goods

This text is machine translated.
