Schützinger Safety shorting plug Green-yellow 1 pc(s)

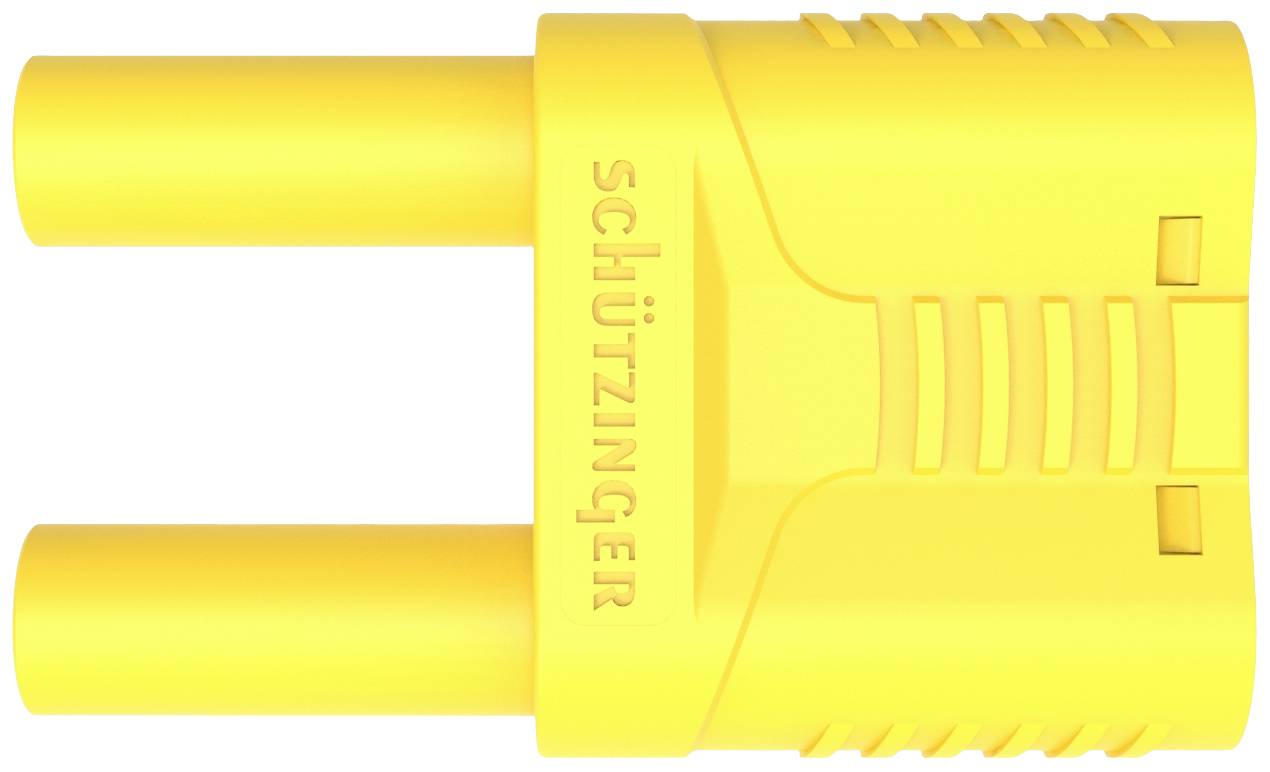

A yellow two-pin plug with the 'Schützinger' inscription on the side, used for electrical connections.
A yellow and green electrical component with a 'CE' marking in the centre, likely a plug or adapter.
1/2
Product type
Safety shorting plug
Nominal current - rounded value
32 A
Content
1 pc(s)
Nominal current
32 A
Factory colour
Green-yellow
Datasheet (PDF)
EAN:
Part number:
Item no:
Available soon
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 3.79 / piece)
€ 3.79
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Safety short-circuit connector SHORT 6100 / 19-4 IG 2MB Ni/GNGE

  • 32 A Green-yellow

Technical specifications

  • Design 4 mm-Program
  • Contact parts: Nickel-plated
  • Insulation parts PA 6.6 (polyamide)
  • Colour: Green-yellow
  • Connection: Safety measuring jack (2x)
  • Constant resistance 4) 8 mΩ
  • Dimensioning voltage 2) 1000 V CAT II.
  • Rated current2) 32 A.
  • Operating temperature from -25 °C to +80 °C
Product type

Safety shorting plug

Nominal current

32 A

Factory colour

Green-yellow

Nominal current - rounded value

32 A

Content

1 pc(s)

Connection

Socket

Manufacturer part #

SKURZ 6100 / 19-4 IG 2MB Ni / GNGE

Insulation material

PA 6.6

Contact material

Nickel plated

Temperature range

From -25 °C to +80 °C. °C

Type

SKURZ 6100 / 19-4 IG 2MB Ni / GNGE

Nominal voltage

1000 V

Documents & Downloads

Datasheet

Datasheet 2899718 Schützinger Safety shorting plug Green-yellow 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2899718 Schützinger Safety shorting plug Green-yellow 1 pc(s)
