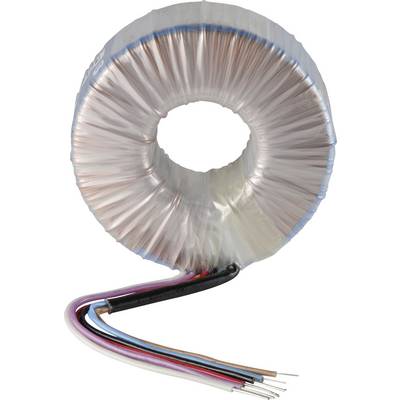

Round ring-core transformer with plastic coating and multiple coloured cables, suitable for electronic devices.

Round ring-core transformer with plastic coating and multiple coloured cables, suitable for electronic devices.

Image similar

Sedlbauer

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 49.99 / piece)

€ 54.99

-9 %

€ 49.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Toroidal transformer

15 - 500 VA

Technical specifications

Product type: Toroidal core transformer

Output voltage: 15 V AC

Output current: 2.67 A

No. of outputs: 2 x

No. of inputs: 1 x

: 80 VA

Input voltage: 230 V

Standards: VDE 0570 (EN 61558)

Connection: Open end cable

Type: 858254

Dim: (Ø x H) 88 mm x 41 mm

Output voltage (number x voltage): 2 x 15 V AC

Design type: Open

Input voltage (number x voltage): 1 x 230 V

Frequency: 50/60 Hz

Weight: 1.1 kg

Content: 1 pc(s)

Insulation class: B

Cable length: 20.00 cm

Height: 41 mm

(Ø): 88 mm

Test voltage: 4400 V

Protection class: II (prepared)

Max. ambient temperature: +40 °C

: 80 VA*

Output voltage: 2 x 15 V

Primary voltage: 230V~

Documents & Downloads

Datasheet

Datasheet 518778 Sedlbauer 858254 Toroidal core transformer 1 x 230 V 2 x 15 V AC 80 VA 2.67 A

User & Safety Instructions

User & Safety Instructions 518778 Sedlbauer 858254 Toroidal core transformer 1 x 230 V 2 x 15 V AC 80 VA 2.67 A

Certificate

Certificate 518778 Sedlbauer 858254 Toroidal core transformer 1 x 230 V 2 x 15 V AC 80 VA 2.67 A

Certificate 518778 Sedlbauer 858254 Toroidal core transformer 1 x 230 V 2 x 15 V AC 80 VA 2.67 A

Description

Minimal space requirement · Low magnetic leakage field · Very small built · Approximately 50% less weight · Interfering hum is almost negligible · Can be fixed only with 1 screw

This text is machine translated.

Features

Minimal space requirement
Low magnetic leakage field
Very small built
Approximately 50% less weight
Interfering hum is almost negligible
Can be fixed only with 1 screw

Scope of delivery

Without mounting accessories.

Hints

* + 1 x 8 V/0.1 A

Description

Minimal space requirement · Low magnetic leakage field · Very small built · Approximately 50% less weight · Interfering hum is almost negligible · Can be fixed only with 1 screw

This text is machine translated.

Features

Minimal space requirement
Low magnetic leakage field
Very small built
Approximately 50% less weight
Interfering hum is almost negligible
Can be fixed only with 1 screw

Scope of delivery

Without mounting accessories.

Hints

* + 1 x 8 V/0.1 A
