SEPA MF15A05 Axial fan 5 V DC 0.6 m³/h (L x W x H) 15 x 15 x 8 mm

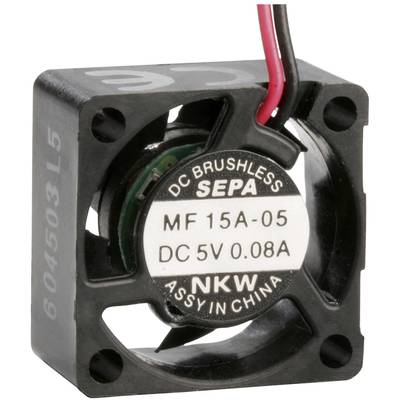

A small, square fan with the inscription 'DC Brushless Fan, Model MF 15A-05, DC 5V 0.08A'. Cable in red and black.
Image similar
Product type
Axial fan
Nominal voltage
5 V DC
No. of wires
2
Power
0.4 W
Type of bearing
Plain bearing
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
5 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 19.99 / piece)
€ 19.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 5 Piece(s) available
14-day return policy included
Report legal concerns

Technical specifications

Product type

Axial fan

Type

MF15A05

Nominal voltage

5 V DC

No. of wires

2

Max. current consumption

80 mA

0.4 W

Type of bearing

Plain bearing

Rotational speed

11000 U/min

Noise emission (max.)

8 dB

Air flow rate

0.6 m³/h

Connection

Open end cable

Cable length

10.00 cm

Factory colour

Black

Material

Plastic

50000 h

Min. temperature

-10 °C

Max. temperature

+60 °C

Length

15 mm

Width

15 mm

Height

8 mm

Dim

(L x W x H) 15 x 15 x 8 mm

Documents & Downloads

Datasheet

Datasheet 1664480 SEPA MF15A05 Axial fan 5 V DC 0.6 m³/h (L x W x H) 15 x 15 x 8 mm

User & Safety Instructions

User & Safety Instructions 1664480 SEPA MF15A05 Axial fan 5 V DC 0.6 m³/h (L x W x H) 15 x 15 x 8 mm

Conformity certificate

Conformity certificate 1664480 SEPA MF15A05 Axial fan 5 V DC 0.6 m³/h (L x W x H) 15 x 15 x 8 mm
