SEPA MF15B05 Axial fan 5 V DC 0.7 m³/h (L x W x H) 15 x 15 x 4.5 mm

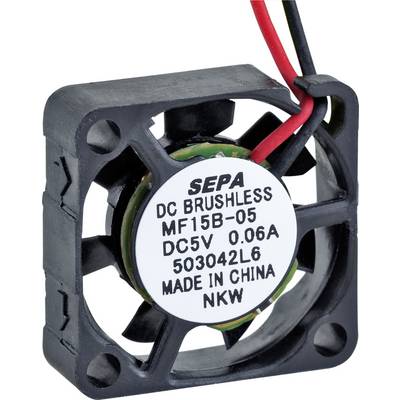

Small, square ventilation fan with black and red cables, label reads 'SEPA DC Brushless MF15B-05', voltage 5V, current 0.06A, originating from China.
Product type
Axial fan
Nominal voltage
5 V DC
No. of wires
2
Power
0.3 W
Type of bearing
Plain bearing
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
14 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 16.99 / piece)
€ 16.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Product type

Axial fan

Type

MF15B05

Nominal voltage

5 V DC

No. of wires

2

Max. current consumption

60 mA

0.3 W

Type of bearing

Plain bearing

Rotational speed

13000 U/min

Noise emission (max.)

12 dB

Air flow rate

0.7 m³/h

Connection

Open end cable

Cable length

10.00 cm

Factory colour

Black

Material

Plastic

50000 h

Min. temperature

-10 °C

Max. temperature

+60 °C

Length

15 mm

Width

15 mm

Height

4.5 mm

Dim

(L x W x H) 15 x 15 x 4.5 mm

Documents & Downloads

Datasheet

Datasheet 1664481 SEPA MF15B05 Axial fan 5 V DC 0.7 m³/h (L x W x H) 15 x 15 x 4.5 mm

Datasheet 1664481 SEPA MF15B05 Axial fan 5 V DC 0.7 m³/h (L x W x H) 15 x 15 x 4.5 mm

User & Safety Instructions

User & Safety Instructions 1664481 SEPA MF15B05 Axial fan 5 V DC 0.7 m³/h (L x W x H) 15 x 15 x 4.5 mm

Conformity certificate

Conformity certificate 1664481 SEPA MF15B05 Axial fan 5 V DC 0.7 m³/h (L x W x H) 15 x 15 x 4.5 mm
