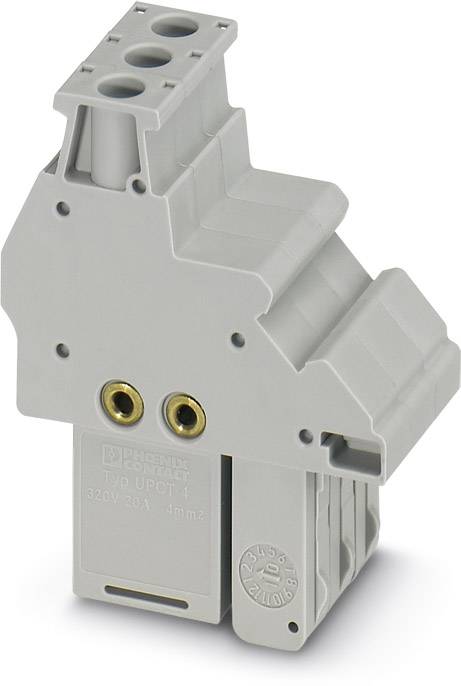

Short-circuit connector UPCT 4/3 3057458 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Shorting plug
Connection
Screws
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
20 A
Datasheet (PDF)
Number (Package size 10 pc(s))
Total (€ 10.50 / piece)
€ 105.03
plus VAT.
Technical specifications
- Product type
Shorting plug
- Connection
Screws
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
26
- AWG max.
10
- Clamp width
18.6 mm
- No. of rows
1
- Number of pins
3
- Factory colour
Grey
- Nominal current
20 A
- Nominal current - rounded value
20 A
- Nominal voltage
320 V
- Stripping length (max.)
9 mm
- Manufacturer part #
3057458
- Content
10 pc(s)
- Industrial packaging
Yes
- Type
UPCT 4/3
- Dim
(L x W x H) 38.5 x 18.6 x 48.5 mm
- Width
18.6 mm
- Height
48.5 mm
- Length
38.5 mm
- Flammability rating
V0
Documents & Downloads
Datasheet
Datasheet 718453 Short-circuit connector UPCT 4/3 3057458 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 718453 Short-circuit connector UPCT 4/3 3057458 Phoenix Contact
Description
Plug, 3-pos. with integrated, automatic short circuit function
Hints
Special order, no right of withdrawal.
