1/2

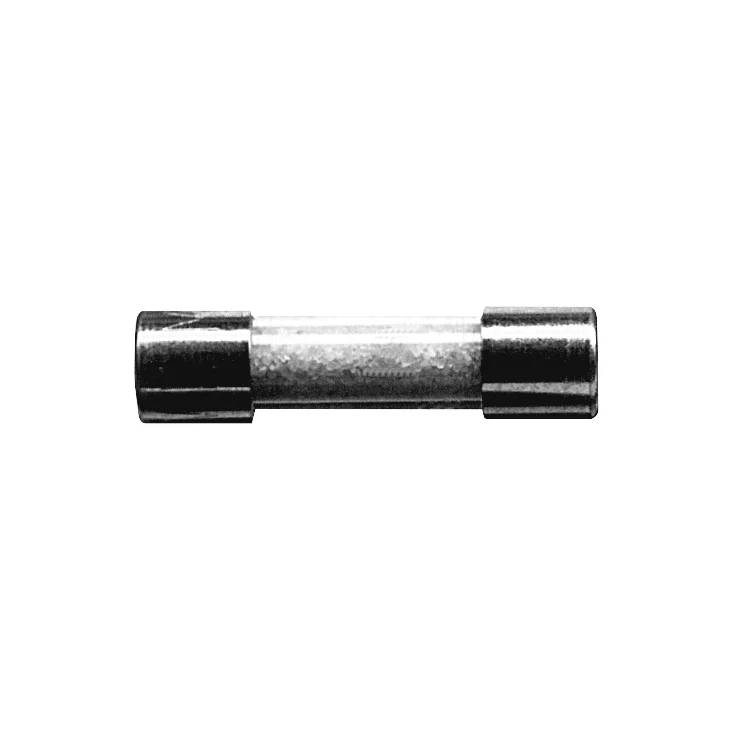

SIBA 172100.4 Micro fuse (Ø x L) 6.3 mm x 32 mm 4.00 A 500 V AC Medium time-lag -mT- Content 10 pc(s)
Product type
Micro fuse
Nominal voltage
500 V AC
Nominal current - rounded value
4 A
Release characteristics
Medium time-lag -mT-
Length
32 mm
Datasheet (PDF)
Part number:
Item no:
Number (Package size 10 pc(s))
Total (€ 2.99 / piece)
€ 2.99
incl. VAT
14-day return policy included
Highlights & Details
SIBA G-fuse link 5x20mm 172100 medium-blow 250Vac 4A
- According to DIN 41571-2.
Technical specifications
- Casing material: Ceramic tube, opaque
- Melting Integral: 5.2 A²/s.
- Rated breaking capacity 1,500 A.
- Voltage drop 200 mV
- Product type
Micro fuse
- Nominal voltage
500 V AC
- Dim
(Ø x L) 6.3 mm x 32 mm
- Nominal current
4.00 A
- Nominal current - rounded value
4 A
- Release characteristics
Medium time-lag -mT-
- Length
32 mm
- (Ø)
6.3 mm
- Certification marks
DIN 41571-2
- Content
10 pc(s)
- Type
172100.4
- Weight
1.0 g
Documents & Downloads
Datasheet
Datasheet 3843395 SIBA 172100.4 Micro fuse (Ø x L) 6.3 mm x 32 mm 4.00 A 500 V AC Medium time-lag -mT- Content 10 pc(s)
User & Safety Instructions
User & Safety Instructions 3843395 SIBA 172100.4 Micro fuse (Ø x L) 6.3 mm x 32 mm 4.00 A 500 V AC Medium time-lag -mT- Content 10 pc(s)
Description
As primary protection in devices
This text is machine translated.
This text is machine translated.
