Siemens 3RT1064-2NP36 Electrical contactor 3 makers 1000 V AC 1 pc(s)

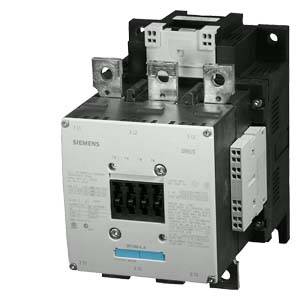

Siemens contactor with multiple terminals, commonly used in industrial applications to control electrical equipment.
An open electrical cabinet with cables and switches, beside a window with raindrops, through which machinery is visible in the background.

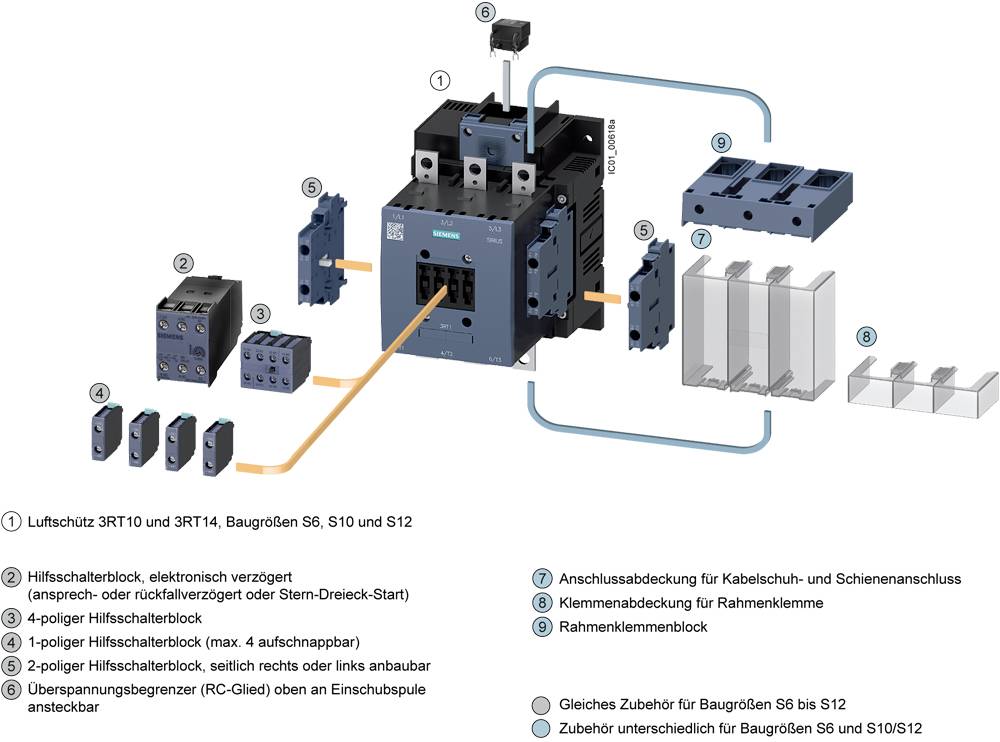

'Illustration of a circuit breaker with accessories: main switch, auxiliary switch, terminal covers, and mounting instructions.'

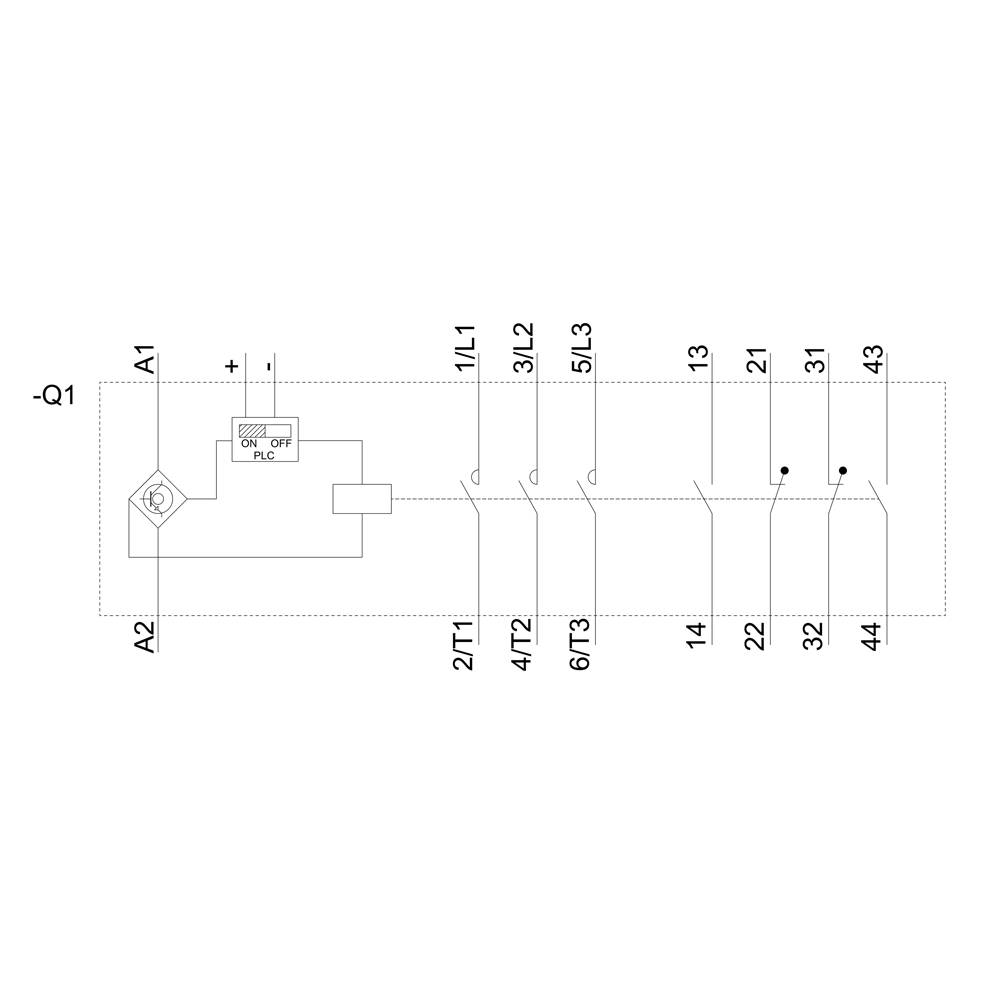

The circuit diagram shows an electrical circuit with a contactor. Details are marked: A1/A2 for coil voltage, 1L1 to 5L3 for inputs, 13 to 44 for contacts.

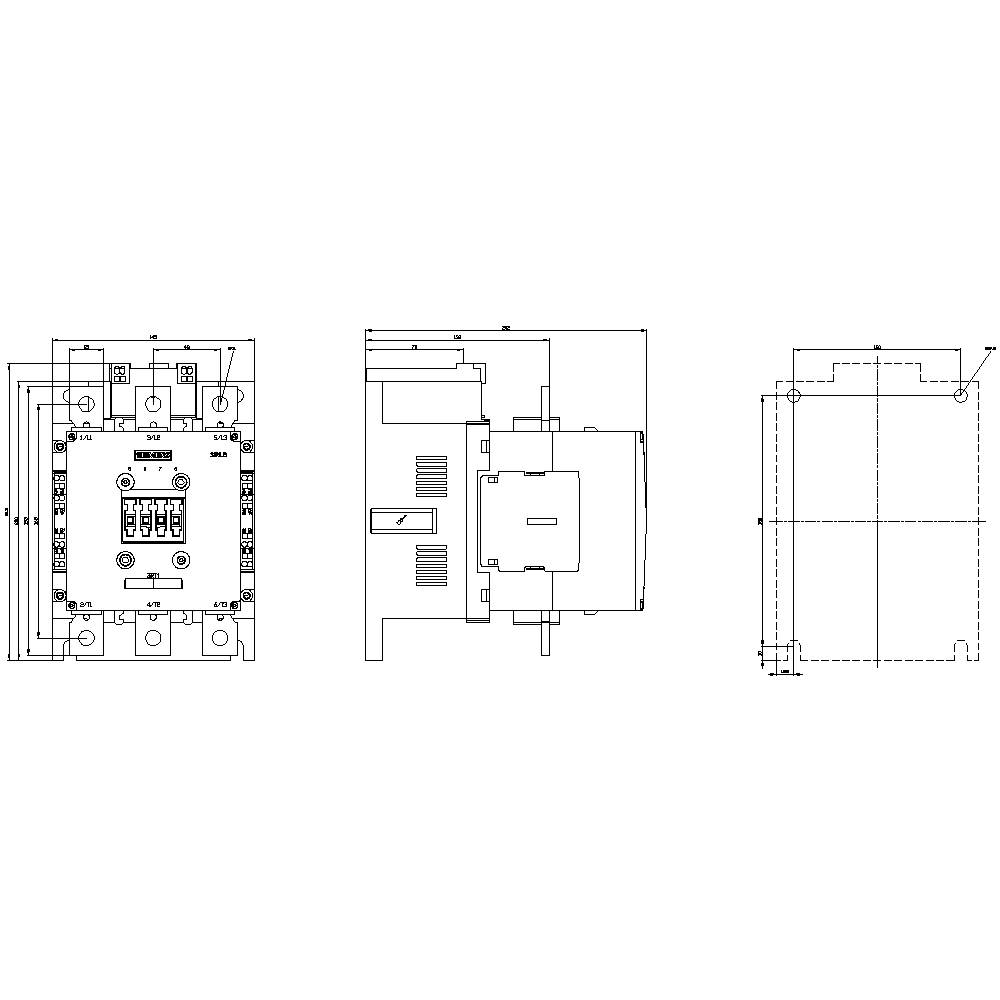

Technical drawing of an electrical contactor from front, side, and top views. Shows detailed design features and dimensions.
1/5
Image similar
Product type
Electrical contactor
No. of pins
3-pin
Nominal voltage
1000 V AC
Connection
Terminal strip
Type
3RT1064-2NP36
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Thu 26 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 1,499.00 / piece)
€ 1,499.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Type of voltage, AC/DC
  • Conductor cross-section single or multi-strand: 240 mm²
Product type

Electrical contactor

Type

3RT1064-2NP36

Type

S10

No. of pins

3-pin

Contact type

3 makers

Nominal voltage

1000 V AC

Mounting type

Screw-fit

Connection

Terminal strip

Durability

1000 0000

IP00

Min. temperature

-25 °C

Max. temperature

+60 °C

Width

145 mm

Height

210 mm

Depth

202 mm

Dim

(W x H x D) 145 x 210 x 202 mm

Content

1 pc(s)

RoHS-compliant

Yes

TRUE

110 kW

3

2

2

225 A

275 A

Rail connection

AC/DC

195 A

110 kW

110.3248125

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1744953 Siemens 3RT1064-2NP36 Electrical contactor 3 makers 1000 V AC 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1744953 Siemens 3RT1064-2NP36 Electrical contactor 3 makers 1000 V AC 1 pc(s)

Description

Power contactor, AC-3 225 A, 110 kW / 400 V AC (50-60 Hz) / DC operation 200-277 V UC Auxiliary contacts 2 NO + 2 NC 3-pole, Size S10 Busbar connections Drive: electronic with PLC interface 24 V DC Spring-type terminal
